Product Model

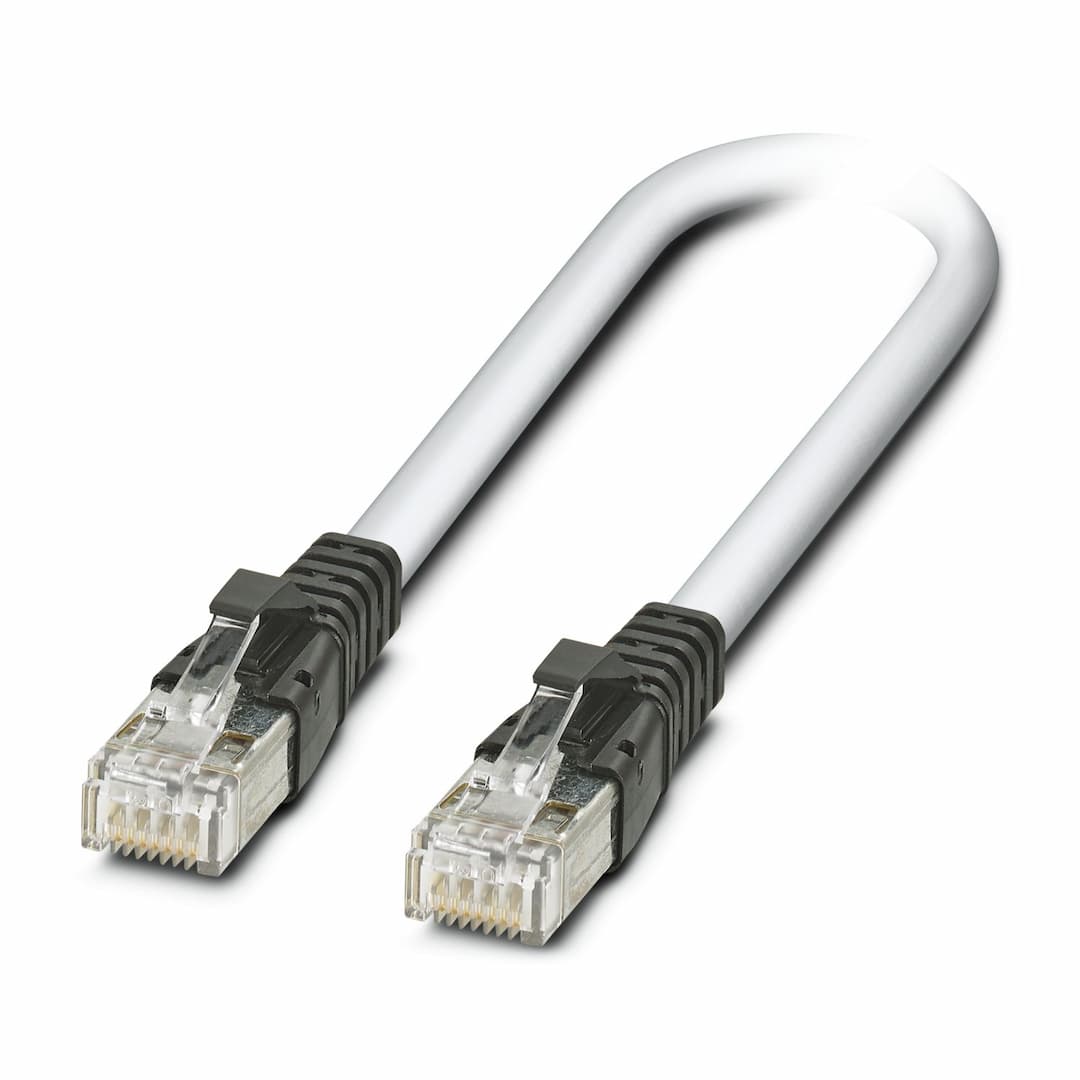

FL CAT5 PATCH 0,5
Selling Points
- 1High-Speed Ethernet Connection: Supports transmission speeds of up to 1 Gbps.
- 2Shielded and Durable: SF/UTP shielding ensures reliable data transmission and a smallest bending radius of 30 mm.
- 3Halogen-Free: Meets IEC 60754-1 standards for safe and environmentally friendly use.
- 4RJ45 Connectivity: Assembled with two straight RJ45 plugs for easy connection.
- 5Long-Lasting Performance: Withstands up to 750 insertion/withdrawal cycles and operates in temperatures from -10°C to 60°C.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Data cable preassembled | Sensor type | Ethernet |
Number of positions | 8 | Connection profile | RJ45 |
Contact resistance | ≤ 0.003 Ω (IEC 60603-7) | Nominal voltage U | 150 V |
Nominal current I | 1.5 A | Transmission speed | 1 Gbps |
Insertion force per signal contact | 30.00 N | Extraction force per signal contact | 50 N |
Flammability rating according to UL 94 | V0 | Outer sheath, material | LSFROH |
Width | 12.6 mm | Height | 6.6 mm |
Length | 40.05 mm | External diameter max. | 6.2 mm |
Type | Plug straight RJ45 | Shielded | yes |
Insertion/withdrawal cycles | ≥ 750 | Degree of protection | IP20 |
Type | Plug straight RJ45 | Cable length | 0.50 m |
External cable diameter | 5.50 mm | Outer sheath, material | LSFROH |
Single wire, number of litz wires | 8 | Single wire, material | Cu litz wire |
Single wire, cross section | 0.14 mm² | Shielding | SF/UTP |
Smallest bending radius, fixed installation | 30 mm | Halogen-free | according to IEC 60754-1 |
Concentration of fumes | in accordance with IEC 61034 | Flame resistance | according to IEC 60332-3C |
Degree of protection | IP20 | Ambient temperature (operation) | -10 °C ... 60 °C |
Flame resistance | according to IEC 60332-3C | Concentration of fumes | in accordance with IEC 61034 |
Specifications may be subject to change without notice
