Product Model

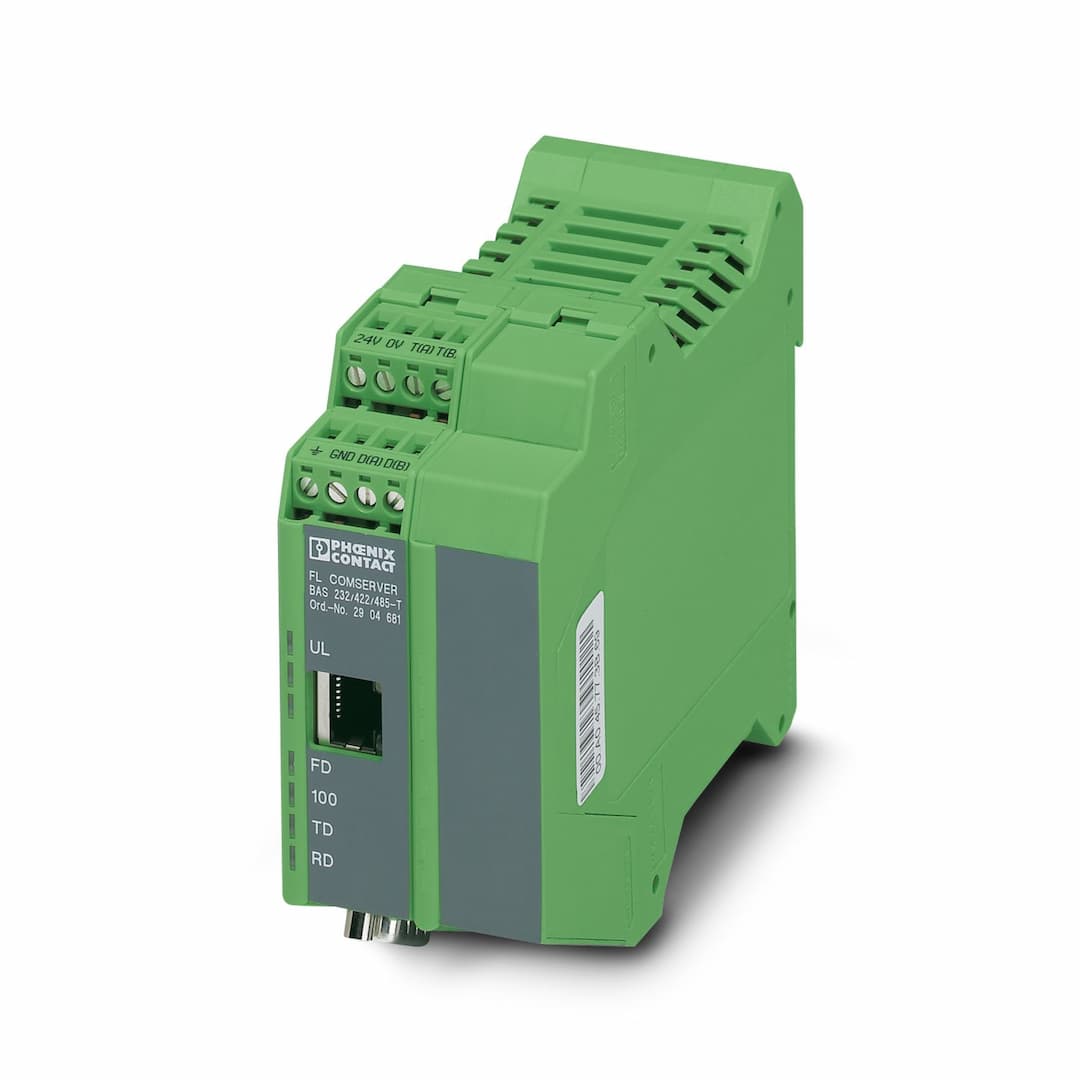

FL COMSERVER BAS 232/422/485-T
Selling Points
- 1Operates from -40°C to +70°C, ideal for harsh environments.
- 2Converts RS-232, RS-422, and RS-485 interfaces to Ethernet.
- 3Easily configure and monitor via web-based interface.
- 4Supports TCP and UDP applications with data transmission speeds up to 100 Mbps.
- 5Meets IP20 protection standards and includes LEDs for status and diagnostic indicators.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
CCCex note | Use in potentially explosive areas is not permitted in China. | Product type | Interface converter |
MTTF | 1973 Years (SN 29500 standard, temperature 25°C, operating cycle 21%)
854 Years (SN 29500 standard, temperature 40°C, operating cycle 34.25%)
348 Years (SN 29500 standard, temperature 40°C, operating cycle 100%) | MTBF | 666 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day))
179 Years (Telcordia standard, 40°C temperature, 34.25% operating cycle (5 days a week, 12 hours a day)) |
Article revision | 04 | Supported browsers | Netscape Communicator versions 4.5 and up or Internet Explorer versions 5.5 and up |
Electrical isolation | VCC // Ethernet // Serial | Maximum power dissipation for nominal condition | 2.1 W |
Test voltage data interface/data interface | 1.5 kV | Test voltage data interface/power supply | 1.5 kV
1.5 kV |
Supply voltage range | 12 V AC/DC ... 30 V AC/DC (observe derating) | Nominal supply voltage | 24 V AC/DC ±20 % (via pluggable COMBICON screw terminal block) |
Typical current consumption | 100 mA (24 V DC) | Management | Web-based management, SNMP, emergency exit with Telnet and serial |
Status and diagnostic indicators | LEDs: UL (logic voltage), TD + RD (data activity serial), FD (full duplex), 100 (100 Mbps mode), Link (Ethernet), Activity (Ethernet), ERR (error) | Tightening torque | 0.56 Nm ... 0.79 Nm |
Signal | Ethernet | Web server | yes |
Serial transmission speed | 10/100 Mbps, auto negotiation | Connection method | RJ45 jack, shielded |
No. of channels | 1 | Transmission length | ≤ 100 m (shielded twisted pair) |
Protocols supported | TCP/IP, UDP | Auxiliary protocols | ARP, DHCP, BOOTP, SNMP, RIP, RARP, HTTP, TFTP, ICMP |
Serial transmission speed | 0.3; 0.6; 1.2; 2.4; 4.8; 7.2; 9.6; 19.2; 38.4; 57.6; 115.2; 187.5; 230.4 kbps | Connection method | D-SUB 9 plug |
Pin assignment | DTE/DCE switchover via web-based management | Transmission length | 15 m |
File format/coding | UART/NRZ: 7/8 Bit Data, 1/2 Bit Stopp, None/Even/Odd Parity | Data flow control/protocols | Software handshake, Xon/Xoff, or hardware handshake RTS/CTS // 3964 R compatible, Modbus RTU/ASCII |
Serial transmission speed | 0.3; 0.6; 1.2; 2.4; 4.8; 7.2; 9.6; 19.2; 38.4; 57.6; 115.2; 187.5; 230.4; 500; 1000 kbps | Connection method | Plug-in/screw connection via COMBICON |
Transmission length | ≤ 1200 m | Termination resistor | 390 Ω (configurable)
180 Ω
390 Ω |
File format/coding | UART/NRZ: 7/8 Bit Data, 1/2 Bit Stopp, None/Even/Odd Parity | Data flow control/protocols | Automatic control |
Serial transmission speed | 0.3; 0.6; 1.2; 2.4; 4.8; 7.2; 9.6; 19.2; 38.4; 57.6; 115.2; 187.5; 230.4; 500; 1000 kbps | Connection method | Plug-in/screw connection via COMBICON |
Termination resistor | 390 Ω
180 Ω
390 Ω (configurable) | File format/coding | UART/NRZ: 7/8 Bit Data, 1/2 Bit Stopp, None/Even/Odd Parity |
Data flow control/protocols | Automatic control | Width | 45 mm |
Height | 99 mm | Depth | 116 mm |
Color (Housing) | green (RAL 6021) | Material (Housing) | PA 6.6-FR |
Degree of protection | IP20 | Ambient temperature (operation) | -40 °C ... 70 °C (free-standing, 40mm space on all sides)
-40 °C ... 60 °C (Mounted in rows with zero spacing) |
Ambient temperature (storage/transport) | -40 °C ... 70 °C | Altitude | ≤ 5000 m (For restrictions, see the manufacturer's declaration for altitude operation) |
Permissible humidity (operation) | 10 % ... 95 % (non-condensing) | Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) |
Certificate | CE-compliant | Identification | II 3G Ex nA IIC T4 Gc X |
Note | Please follow the special installation instructions in the documentation! | Identification | ISA-S71.04-1985 G3 Harsh Group A |
Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU | Noise immunity | EN 61000-6-2:2005 |
Noise emission | EN 61000-6-4 | Free from substances that could impair the application of coating | in accordance with VW-AUDI-Seat central standard P-VW 3.10.7 57 65 0 |
Standards/regulations | EN 50121-4 | Mounting type | DIN rail mounting |
