Product Model

FL COMSERVER-MPI-SET

Manufacturer

Phoenix Contact

Category

Unclassified

Product ID

20744

In Stock
Last updated: 2025/4/18
View Specifications

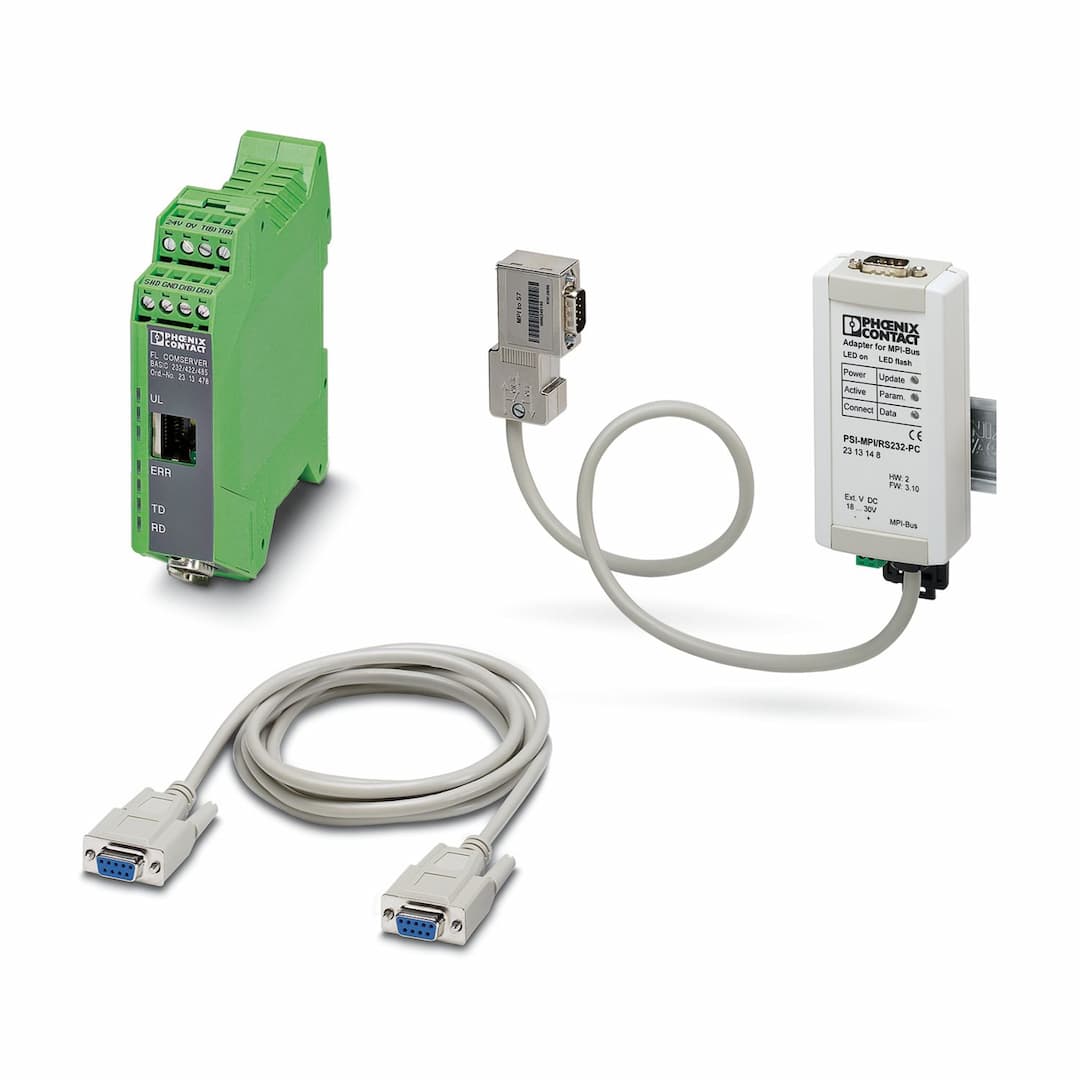

Phoenix Contact FL COMSERVER-MPI-SET

Selling Points

  • 1Seamless Integration: Converts serial interfaces (RS-232, RS-422, RS-485) to Ethernet for easy network integration.
  • 2Remote Management: Enables remote port management and firmware updates via Ethernet.
  • 3Modbus Gateway: Supports Modbus gateways for seamless communication between devices.
  • 4Virtual COM Ports: Includes software for virtual COM ports, enhancing compatibility with various systems.
  • 5Web-Based Management: Configurable via web-based management for easy setup and monitoring.
Product Details
FL COMSERVER-MPI-SET
Phoenix Contact

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Product type
Interface converter
Supported browsers
Netscape Communicator versions 4.5 and up or Internet Explorer versions 5.5 and up
Electrical isolation
VCC // Ethernet // Serial
Maximum power dissipation for nominal condition
2.4 W
Test voltage data interface/data interface
1.5 kV
Test voltage data interface/power supply
1.5 kV 1.5 kV
Supply voltage range
19.2 V AC/DC ... 28.8 V AC/DC (via pluggable COMBICON screw terminal block) 22.8 V DC ... 25.2 V DC (as an alternative or redundant, via backplane bus contact and system current supply)
Typical current consumption
100 mA (24 V DC)
Management
Web-based management, SNMP, emergency exit with Telnet and serial
Status and diagnostic indicators
LEDs: UL (logic voltage), TD + RD (data activity serial), FD (full duplex), 100 (100 Mbps mode), Link (Ethernet), Activity (Ethernet), ERR (error)
Tightening torque
0.56 Nm ... 0.79 Nm
Signal
Ethernet
Serial transmission speed
10/100 Mbps, auto negotiation
Connection method
RJ45 jack, shielded
Transmission length
100 m (shielded twisted pair)
Protocols supported
TCP/IP, UDP
Auxiliary protocols
ARP, DHCP, BOOTP, SNMP, RIP, RARP, HTTP, TFTP, ICMP
Serial transmission speed
19200, 38400 Bit/s, adjustable via web-based management
Connection method
D-SUB 9 plug
File format/coding
Serially asynchronous UART/NRZ, 8 data, 1 stop, odd parity, 11 bit character length
Data flow control/protocols
Hardware handshake RTS/CTS
Width
22.5 mm
Height
99 mm
Depth
116 mm
Color (Housing)
green (RAL 6021)
Material (Housing)
PA 6.6-FR
Degree of protection
IP20
Ambient temperature (operation)
-25 °C ... 60 °C
Ambient temperature (storage/transport)
-25 °C ... 70 °C
Altitude
≤ 5000 m (For restrictions, see the manufacturer's declaration for altitude operation)
Permissible humidity (operation)
10 % ... 95 % (non-condensing)
Permissible humidity (storage/transport)
5 % ... 95 % (non-condensing)
Electromagnetic compatibility
Conformance with EMC Directive 2014/30/EU
Noise immunity
EN 61000-6-2:2005
Noise emission
EN 61000-6-4
Standards/regulations
EN 50121-4
Mounting type
DIN rail mounting

Specifications may be subject to change without notice
