Product Model

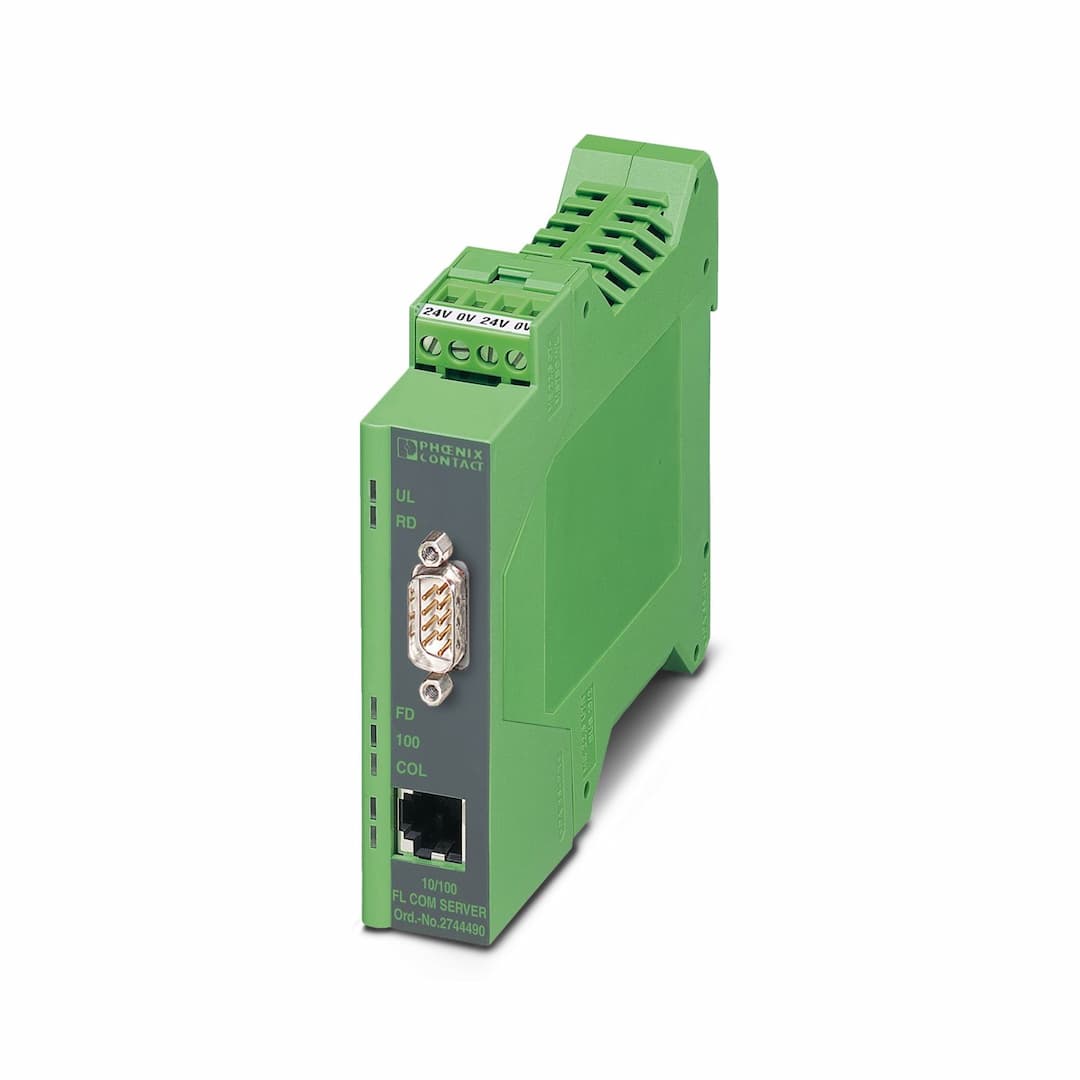

FL COM SERVER RS232
Selling Points
- 1Converts serial interfaces (RS-232) to Ethernet seamlessly.
- 2Supports full duplex transmission mode for efficient data transfer.
- 3Enables remote maintenance and program downloads via Ethernet.
- 4Reduces downtime with fast and reliable data transmission.
- 5Compliant with EN 60950 safety standards for industrial use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
EMC note | EMC: class A product, see manufacturer's declaration in the download area | Product type | Interface converter |
MTBF | 666 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day))
179 Years (Telcordia standard, 40°C temperature, 34.25% operating cycle (5 days a week, 12 hours a day)) | Supported browsers | Netscape Communicator versions 4.5 and up or Internet Explorer versions 4.01 and up |
Electrical isolation | VCC // Ethernet // V.24 (RS-232) | Maximum power dissipation for nominal condition | 2.4 W |
Test voltage data interface/data interface | 1.5 kV | Test voltage data interface/power supply | 1.5 kV
1.5 kV |
Supply voltage range | 19.2 V AC/DC ... 28.8 V AC/DC (via pluggable COMBICON screw terminal block)
22.8 V DC ... 25.2 V DC (as an alternative or redundant, via backplane bus contact and system current supply) | Typical current consumption | max. 100 mA |
Management | Web-based management, SNMP or Factory Manager Software FL SWT | Status and diagnostic indicators | LEDs: UL (communication voltage), AC (data activity RS-232), FD (full duplex): 100 (100Base-T (X) operation), COL (collision) link and receive LED for Ethernet port |
Tightening torque | 0.56 Nm ... 0.79 Nm | Signal | Ethernet
Modbus |
Web server | yes | Serial transmission speed | 10/100 Mbps, auto negotiation |
Connection method | RJ45 jack, shielded | Transmission length | 100 m (shielded twisted pair) |
Protocols supported | TCP/IP, UDP, Modbus (TCP, RTU/ASCII), PPP | Auxiliary protocols | ARP, DHCP, BOOTP, SNMP, RIP, RARP, HTTP, TFTP, ICMP |
Transmission speed | 187500 bps | Serial transmission speed | 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200, 187500 Bit/s, can be set with web-based management |
Connection method | D-SUB 9 plug | File format/coding | UART/NRZ: 7/8 Bit Data, 1/2 Bit Stopp, None/Even/Odd Parity |
Data flow control/protocols | Software handshake, Xon/Xoff, or hardware handshake RTS/CTS // 3964 R compatible, Modbus RTU/ASCII | Width | 22.5 mm |
Height | 99 mm | Depth | 118.6 mm |
Color (Housing) | green (RAL 6021) | Material (Housing) | PA V0 |
Degree of protection | IP20 | Ambient temperature (operation) | 0 °C ... 55 °C |
Ambient temperature (storage/transport) | -20 °C ... 70 °C | Altitude | ≤ 5000 m (For restrictions, see the manufacturer's declaration for altitude operation) |
Identification | ISA-S71.04-1985 G3 Harsh Group A | Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
Noise immunity | EN 61000-6-2:2005 | Noise emission | EN 50081-2 |
Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
