Product Model

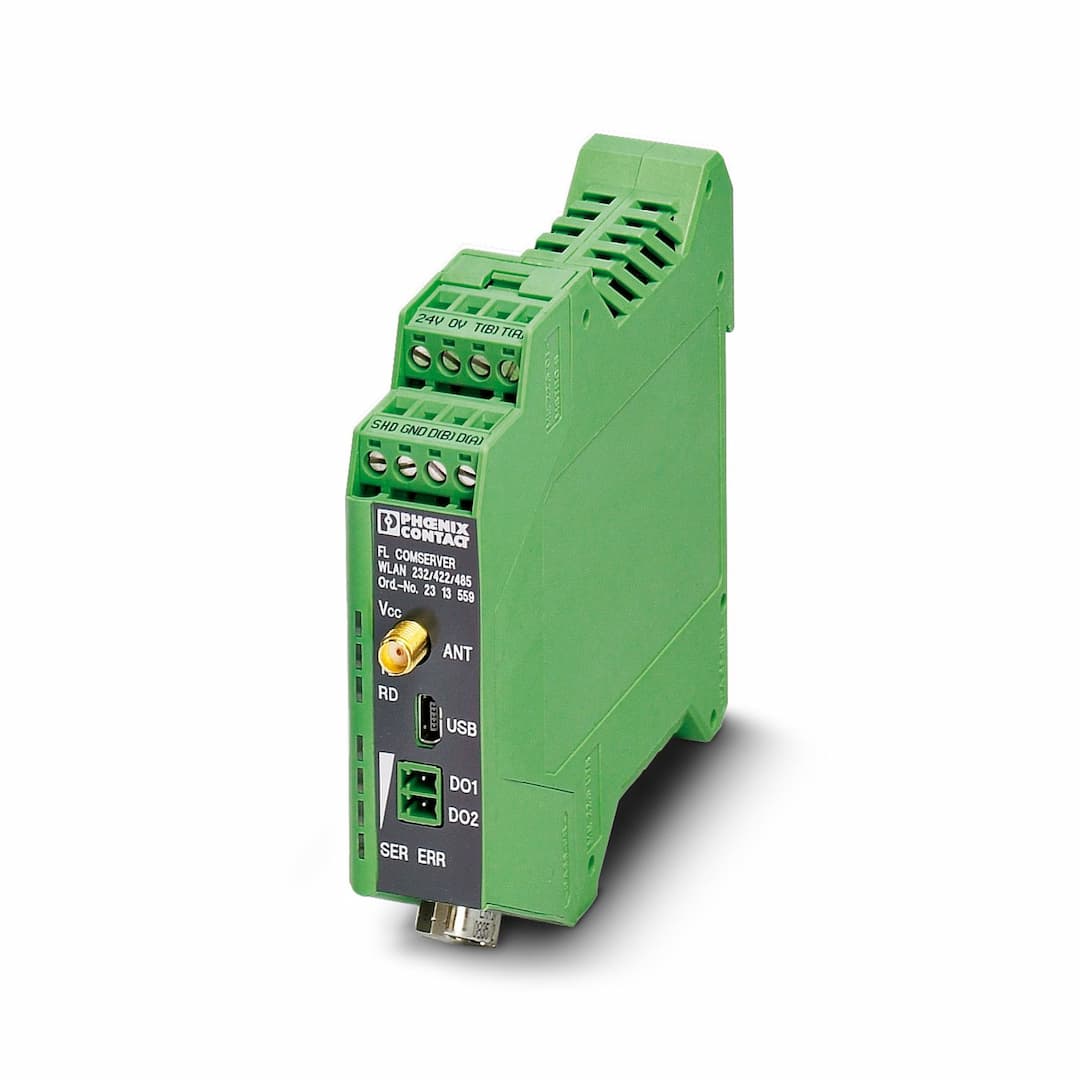

FL COMSERVER WLAN 232/422/485
Selling Points
- 1Seamless Integration: Converts serial interfaces (RS-232, RS-422, RS-485) into Ethernet networks for easy integration.
- 2High-Speed Connectivity: Supports 10/100Base-T(X) Ethernet interface for fast data transmission.
- 3Web-Based Management: Configurable via web-based management with SNMP and Telnet support for remote monitoring.
- 4Versatile Protocols: Supports TCP/IP, UDP, Modbus TCP, and PPP protocols for diverse application needs.
- 5Robust Design: Built with 24 V DC power supply and 1.5 kVrms test voltage for reliable operation in industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Interface converter | MTTF | 2120 Years (SN 29500 standard, temperature 25°C, operating cycle 21%)
851 Years (SN 29500 standard, temperature 40°C, operating cycle 34.25%)
346 Years (SN 29500 standard, temperature 40°C, operating cycle 100%) |
MTBF | 1153 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day))
262 Years (Telcordia standard, 40°C temperature, 34.25% operating cycle (5 days a week, 12 hours a day)) | Article revision | 02 |
Electrical isolation | VCC // WLAN, RS-232, RS-422, RS-485, USB | Maximum power dissipation for nominal condition | 2.4 W |
Test voltage data interface/data interface | 1.5 kV | Test voltage data interface/power supply | 1.5 kV
1.5 kV |
Supply voltage range | 10 V DC ... 30 V DC (via pluggable COMBICON screw terminal block)
19 V AC ... 29 V AC (via pluggable COMBICON screw terminal block) | Nominal supply voltage | 24 V DC ±20 % (as an alternative or redundant, via backplane bus contact and system current supply) |
Typical current consumption | ≤ 100 mA (24 V DC) | Management | With configuration software via USB and serial interface |
Status and diagnostic indicators | LEDs: UL (logic voltage), TD + RD (data activity serial), 4-level bar graph (received wireless power), SER ERR (serial errors) | Tightening torque | 0.56 Nm ... 0.79 Nm |
Signal | Ethernet | Serial transmission speed | 0.3; 1.2; 2.4; 4.8; 7.2; 9.6; 19.2; 31.25; 38.4; 57.6; 75; 93.75; 115.2 kbps |
Connection method | D-SUB 9 plug | File format/coding | Serial asynchronous UART/NRZ, 7/8 data, 1/2 stop, 1 parity, 10/11-bit character length |
Data flow control/protocols | Software handshake, Xon/Xoff or hardware handshake RTS/CTS | Serial transmission speed | 0.3; 1.2; 2.4; 4.8; 7.2; 9.6; 19.2; 31.25; 38.4; 57.6; 75; 93.75; 115.2; 136; 187.5 kbps |
Connection method | Plug-in/screw connection via COMBICON | Transmission length | ≤ 1200 m |
Termination resistor | 390 Ω
180 Ω
390 Ω (Can be connected) | File format/coding | Serial asynchronous UART/NRZ, 7/8 data, 1/2 stop, 1 parity, 10/11-bit character length |
Data flow control/protocols | Automatic control | Serial transmission speed | 0.3; 1.2; 2.4; 4.8; 7.2; 9.6; 19.2; 31.25; 38.4; 57.6; 75; 93.75; 115.2; 136; 187.5 kbps |
Connection method | Plug-in/screw connection via COMBICON | Termination resistor | 390 Ω
180 Ω
390 Ω (Can be connected) |
File format/coding | Serial asynchronous UART/NRZ, 7/8 data, 1/2 stop, 1 parity, 10/11-bit character length | Data flow control/protocols | Automatic control |
Connection method | Mini-USB B, socket | Interface description | WLAN as per IEEE 802.11 b/g |
Operating mode | Infrastructure mode, ad-hoc mode | Frequency range | 2.402 GHz ... 2.48 GHz (ISM bandwidth) |
Transmit capacity, minimum | -28 dBm (can be set via software) | Transmit capacity, maximum | 20 dBm (can be set via software) |
Data rate | ≤ 54 Mbps | Minimum receiver sensitivity | -85 dBm |
Antenna | External | Connection method | SMA socket |
Security | 802.11i, WPA PSK (preshared key), WPA2 PSK, AES, WEP 64 Bit/128 Bit, TKIP | Configuration | USB, serially with configuration software |
Protocols supported | TCP/IP, UDP | Width | 22.5 mm |
Height | 99 mm | Depth | 121 mm |
Color | green | Material (Housing) | PA 6.6-FR |
Degree of protection | IP20 | Ambient temperature (operation) | -25 °C ... 60 °C |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Altitude | ≤ 5000 m (For restrictions, see the manufacturer's declaration for altitude operation) |
Permissible humidity (operation) | 10 % ... 95 % (non-condensing) | Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) |
Certificate | CE-compliant | Identification | 508 Listed |
Note | Part 15, RSS 210 | Identification | ISA-S71.04-1985 G3 Harsh Group A |
Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU | Noise immunity | EN 61000-6-2:2005 |
Noise emission | EN 61000-6-4 | Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
