Product Model

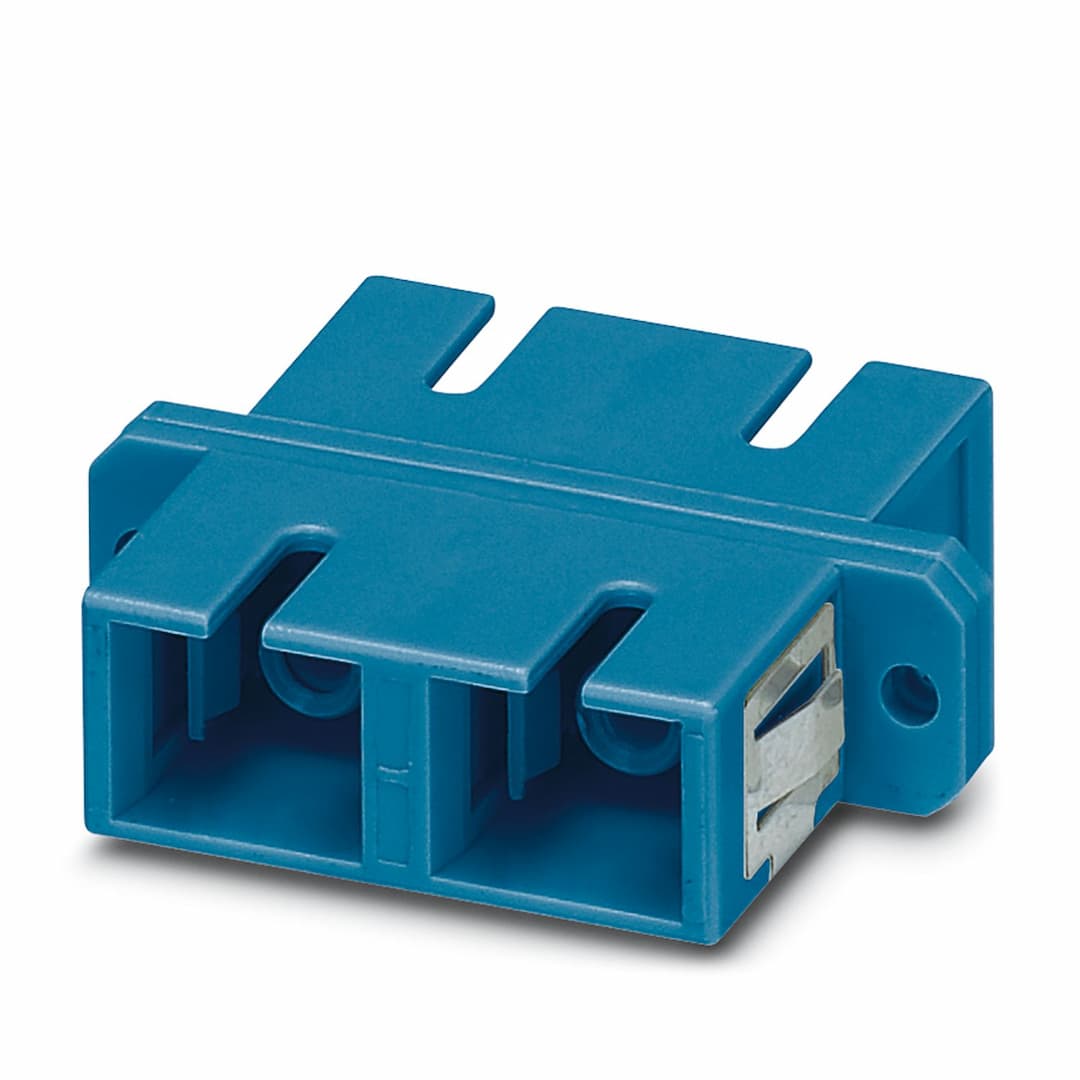

FL COUPLER SC-DUPLEX
Selling Points
- 1High Precision Coupling: Ensures precise mating of fiber optic connectors with low insertion loss.
- 2Durable Construction: Made from high-quality plastic with a ceramic sleeve for long-lasting performance.
- 3Multi-Mode Compatibility: Compatible with multi-mode and single-mode glass fibers, including PCF and polymer fibers.
- 4Robust Mechanical Characteristics: Designed for ≥ 500 insertion/withdrawal cycles and meets IP20 protection standards.
- 5Compliance with Regulations: RoHS compliant and meets UL 94 V0 flammability rating, ensuring environmental safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Adapter | Application | Fiber optic coupling |
Sensor type | Ethernet | Number of positions | 2 |
Connection profile | SC duplex as per IEC 61754-4 | Number of module slots | 1 |
Number of slots | 2 | Type | Socket |
Attenuation | < 0.2 dB | Connection method | Coupling |
Width | 35 mm | Height | 9.3 mm |
Depth | 27.4 mm | Ferrule diameter | 2.50 mm |
Flammability rating according to UL 94 | V0 | Ferrule material | Zirconia ceramics |
Housing material | Plastic | Cable type | Fiberglass |
Number of fibers | 2 | Fiber type | Multi-mode 50/125 µm fiberglass |
Attenuation | ≤ 0.2 dB | Insertion/withdrawal cycles | ≥ 1000 |
Attenuation | < 0.2 dB | Degree of protection | IP20
IP20 |
Ambient temperature (operation) | -40 °C ... 80 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Ambient temperature (assembly) | -5 °C ... 50 °C | Resistance to UV radiation | no |
Specifications may be subject to change without notice
