Product Model

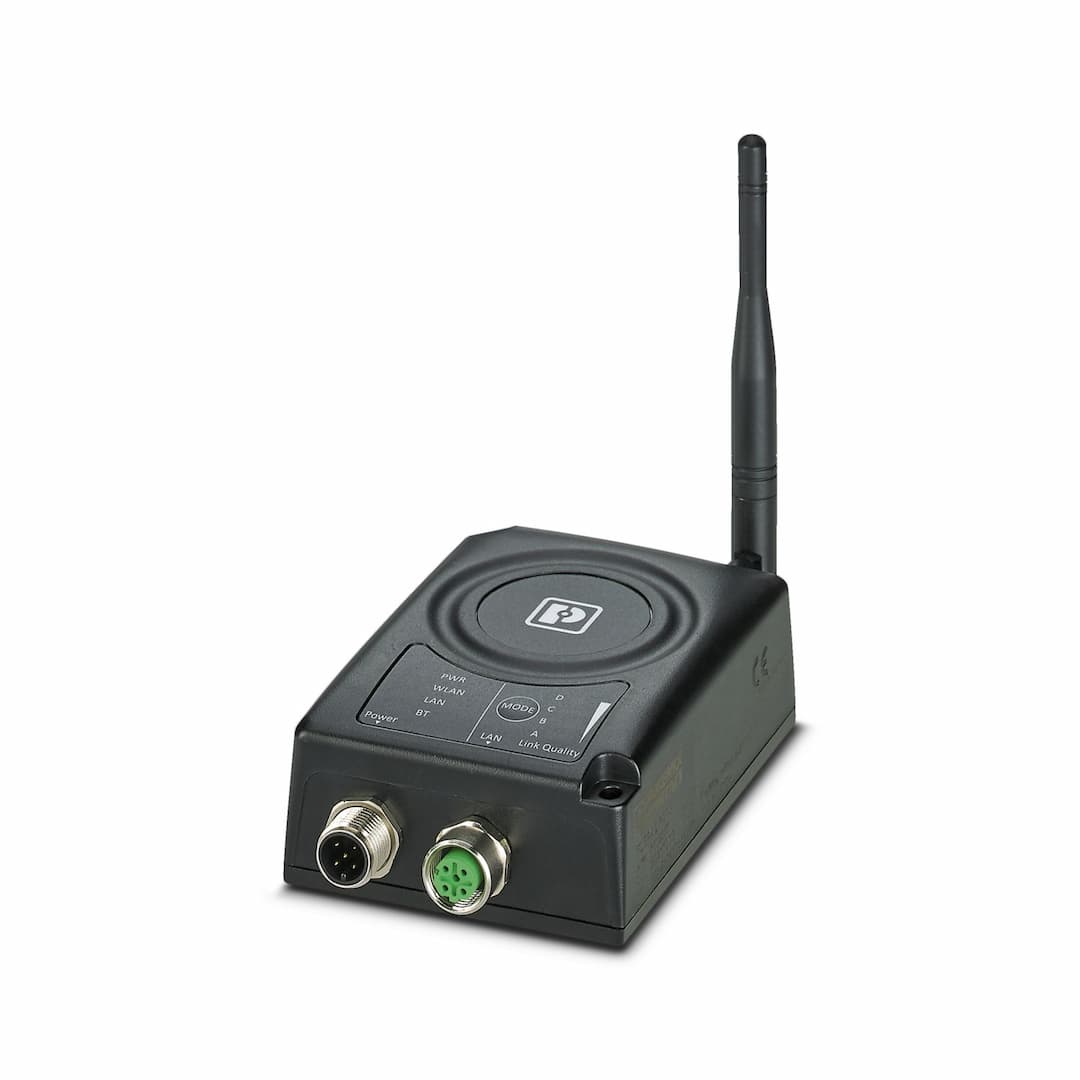

FL EPA 2 RSMA
Selling Points
- 1Combined Ethernet and wireless module with Bluetooth and Wi-Fi.
- 2IP65 protection for rugged industrial environments.
- 3Replaceable RSMA antenna for easy antenna exchange.
- 4Supports 2.4 GHz and 5 GHz frequencies for versatile connectivity.
- 5Web interface and AT commands for easy configuration and management.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note on application | Only for industrial use | Product type | Wireless module |
Application | Ethernet | Type | Stand-Alone |
Article revision | 04 | Number | 1 |
Assembly note | Permanently installed | Maximum power dissipation for nominal condition | 1.7 W |
Connection technology | M12 connector | Connection method | M12 connector (A-coded, male) |
Supply voltage | 24 V DC | Supply voltage range | 9 V DC ... 30 V DC |
Supply current | typ. 54 mA (at 24 V DC) | Current consumption | max. 190 mA (at 9 V DC) |
Number of inputs | 1 | Connection method | M12 connector (A-coded, male) |
Interface | Ethernet | Number | 1 |
Connection method | M12 connectors (D-coded, female) | Number | 1 |
Connection method | RSMA (male) | Gain | 3 dBi ((2.4 GHz / 5 GHz)) |
Length | 107 mm | Operating modes | Access point/client adapter for WLAN and Bluetooth |
Configuration | Web interface, MODE button, AT commands (TCP/IP), SSC | Security | 802.11i
WPA PSK (preshared key)
WPA2
AES
TKIP
PIN
Non-discoverable |
Wireless licenses | Europe, USA, Canada, additional countries in the e-shop
RED (Radio Equipment Directive)
FCC 47 CFR part 15, subpart B | Country support | Belgium
Bulgaria
Denmark
Germany
Estonia
Finland
France
Greece
Great Britain
Ireland
Iceland
Italy
Japan
Canada
Croatia
Latvia
Liechtenstein
Lithuania
Luxembourg
Malta
Netherlands
Norway
Austria
Poland
Portugal
Romania
Sweden
Switzerland
Slovakia
Slovenia
Spain
South Korea
Thailand
Czech Republic
Hungary
USA
Cyprus (rep.) |
Number of interfaces | 1 | Connection method | M12 connectors (D-coded, female) |
Note on the connection method | Auto negotiation and autocrossing | Transmission speed | 10/100 Mbps |
Transmission physics | Copper | Transmission length | 100 m (per segment) |
Designation | Bluetooth / WLAN | Antenna connection method | RSMA (female) |
Frequency range | 2.402 GHz ... 2.48 GHz (Bluetooth)
2.4095 GHz ... 2.4645 GHz (WLAN)
5.17 GHz ... 5.25 GHz (WLAN-AP)
5.17 GHz ... 5.71 GHz (WLAN-Client) | Frequency band | 2.4 GHz
5 GHz |
Wireless standard | Bluetooth 2.1 + EDR
WLAN
IEEE 802.11
a
b
g
n | Transmission power | max. 16 dBm (Bluetooth: 10 dBm) |
Number of wireless interfaces | 1 IEEE 802.11 a/b/g/n, Bluetooth 2.1+EDR, Bluetooth LE 4.0 | Wireless modules that can be connected | 7 (BT 2.1+EDR, NAP-Mode) |
Profiles supported | PAN (NAP, PANU)
GATT (central) | Width | 67.8 mm |
Height | 92.7 mm | Depth | 33.2 mm |
Note on dimensions | excluding M12 connections and antenna connection | Degree of protection | IP65 |
Ambient temperature (operation) | -40 °C ... 65 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Permissible humidity (operation) | 5 % ... 93 % (non-condensing) | Permissible humidity (storage/transport) | non-condensing |
Standards/regulations | EN 61000-4-2 | Standards/regulations | EN 61000-4-3 |
Standards/regulations | EN 61000-4-4 | Standards/regulations | EN 61000-4-5 |
Standards/regulations | EN 61000-4-6 | Standards/regulations | EN 55022 |
Mounting type | Wall mounting | Assembly note | External OMNI omnidirectional antenna supplied as standard, antennas can be exchanged |
Specifications may be subject to change without notice
