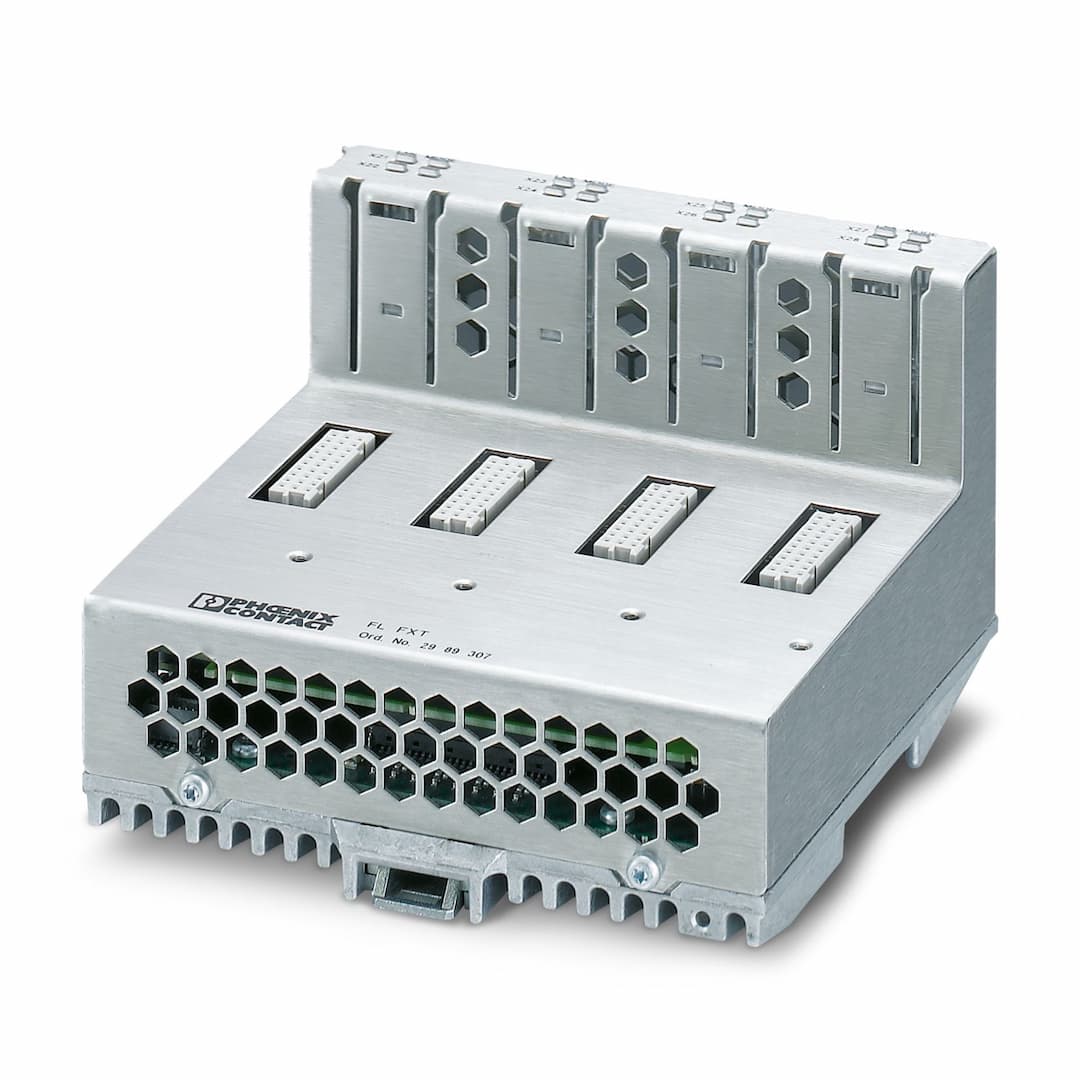

Product Model
FL FXT
Selling Points
- 1Adds up to 8 Ethernet ports for network expansion.
- 2Supports fast transmission speeds of 100 Mbps and 1000 Mbps using SFP plugin modules.
- 3Quick and easy local configuration options with the new operator/display interface.
- 4Secure connection in the automation network according to IEEE 802.1X standards.
- 5Compatible with various connection media like POF, HCS, and GI HCS fibers.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note on application | Only for industrial use | Product type | Extension module |
Type | Stand-Alone | Article revision | 02 |
Basic functions | Extension module for Modular Managed Switch | Transmission medium | Copper
FO |
Typical current consumption | via head station | Connection method | via interface module |
Note on the connection method | Max. 4 interface modules | Transmission speed | 10/100 Mbps (full duplex) |
Transmission physics | multi-mode fiberglass
Single-mode fiberglass
POF-SCRJ
GI-HCS fibers
Copper
PoE | Signal LEDs | Data receive, link status |
No. of channels | 2 (Per interface module) | Status display | LEDs for media modules |
Width | 127 mm | Height | 125 mm |
Depth | 115 mm | Housing material | PA 6.6 |
Degree of protection | IP20 | Ambient temperature (operation) | -20 °C ... 55 °C (non-condensing) |
Ambient temperature (storage/transport) | -20 °C ... 70 °C | Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) | Vibration (operation) | in acc. with IEC 60068-2-6: 5g, 150 Hz |
Electromagnetic compatibility | Conformance with EMC Directive 2004/108/EC | Conformance with EMC directives | IEC 61000-6-2 IEC 61000-4-2 (ESD) Criterion B
IEC 61000-4-3 (immunity to radiated interference) Criterion A
IEC 61000-4-4 (burst) Criterion A
IEC 61000-4-5 (surge) Criterion A
IEC 61000-4-6 (immunity to conducted interference) Criterion A
EN 55022 (emitted interference) Class A |
Noise immunity | EN 61000-6-2:2005 | Noise emission | EN 61000-6-3/-4 |
Free from substances that could impair the application of coating | In acc. with VW specification | Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
