Product Model

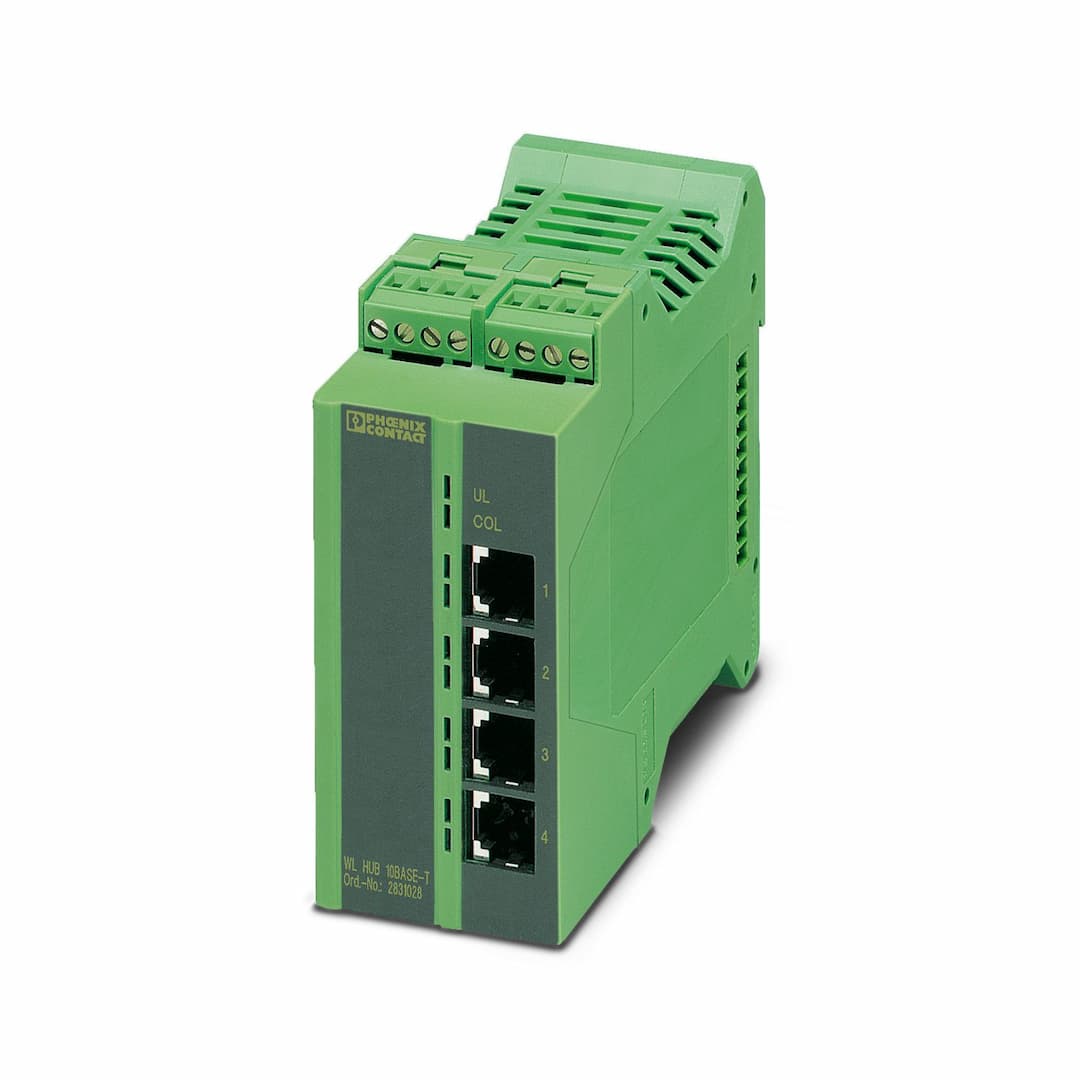

FL HUB 10BASE-T
Selling Points
- 1Easily integrate into industrial settings with its compact DIN-rail design.
- 2Supports multiple connections for enhanced network flexibility.
- 3Ensures high-speed data transmission over Ethernet networks.
- 4Provides reliable electrical isolation and signal integrity.
- 5Built to withstand harsh industrial environments with a robust design and reliable performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Type | Stand-Alone | Operating mode | Semi-duplex |
Protection class | III (IEC 61140, EN 61140, VDE 0140-1) | Basic functions | Hub/repeater, compliance with IEEE 802.3 |
Electrical isolation | 10Base-T// supply | Power consumption | typ. 4.6 W |
Local diagnostics | UL Supply voltage Green LED
COL Telegram collisions LED red
- Link status Green LED
- Telegrams received Yellow LED | Maximum power dissipation for nominal condition | 4.6 W |
Test section | 500 V AC 50 Hz 1 min | Transmission medium | Copper |
Supply voltage | 24 V DC (via COMBICON; max. conductor cross section 2.5 mm²) | Supply voltage range | 18.5 V DC ... 30.5 V DC |
Power supply connection | Via COMBICON, max. conductor cross section 2.5 mm² | Residual ripple | 3.6 V |
Typical current consumption | 190 mA (to U | Signal contact control voltage | 24 V DC (typical) |
Signal contact control current | 100 mA (typical) | Connection method | RJ45, shielded |
Connection method | Four 10Base-T ports | Transmission speed | 10 Mbps (half duplex) |
Transmission physics | Ethernet RJ45 | Transmission length | 100 m (per segment) |
Signal LEDs | Data receive, link status | Connection method | Plug-in/screw connection via COMBICON |
Connection method | Direct plug-in technology | Status display | LEDs: UL (communications voltage), COL (collision) link and receive LED per port |
Width | 45 mm | Height | 99 mm |
Depth | 112 mm | Color | green |
Degree of protection | IP20 | Ambient temperature (operation) | 0 °C ... 55 °C |
Ambient temperature (storage/transport) | -20 °C ... 70 °C | Permissible humidity (operation) | 30 % ... 95 % (non-condensing) |
Permissible humidity (storage/transport) | 30 % ... 95 % (non-condensing) | Vibration (operation) | in acc. with IEC 60068-2-6: 5g, 150 Hz |
Air pressure (operation) | 86 kPa ... 108 kPa (1500 m above sea level) | Air pressure (storage/transport) | 66 kPa ... 108 kPa (3500 m above sea level) |
Resistance to gases that may endanger the functions, in acc. with DIN 40046-36, DIN 40046-37 | Sulfur dioxide (SO | Electromagnetic compatibility | Conformance with EMC directive 89/336/EC |
Conformance with EMC directives | IEC 61000-6-2 IEC 61000-4-2 (ESD) Criterion B
IEC 61000-4-3 (immunity to radiated interference) Criterion A
IEC 61000-4-4 (burst) Criterion B
IEC 61000-4-5 (surge) Criterion B
IEC 61000-4-6 (immunity to conducted interference) Criterion A
IEC 61000-4-8 (immunity to magnetic fields) Criterion A
EN 55022 (emitted interference) Criterion A | Noise immunity | EN 61000-6-2:2005 |
Noise emission | EN 61000-6-4 | Free from substances that could impair the application of coating | In acc. with VW specification |
Electrical isolation | 10Base-T// supply | Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
