Product Model

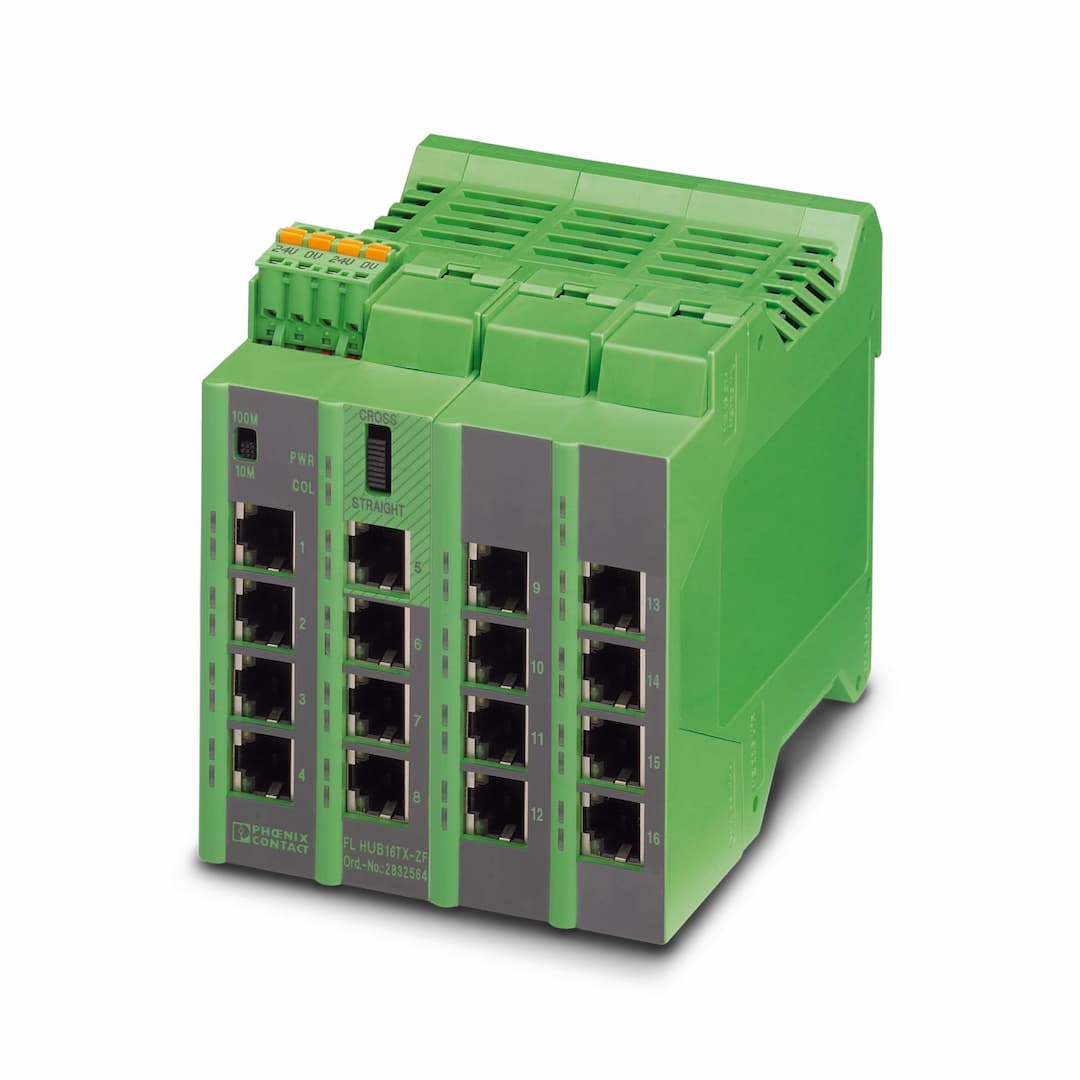

FL HUB 16TX-ZF
Selling Points
- 1Supports 16 RJ45 ports for extensive network connectivity.
- 2Operates at both 10 Mbps and 100 Mbps for versatile network needs.
- 3Built with durable plastic housing and designed for DIN rail mounting.
- 4Includes port assignment switch, signal LEDs, and diagnostic indicators for easy monitoring.
- 5Meets IP20 protection standards and is environmentally friendly with no hazardous substances above threshold values.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 90 mm | Height | 99 mm |
Depth | 112 mm | Color | green |
Housing material | Plastic | Mounting type | DIN rail mounting |
Connection method | RJ45 jack | Transmission speed | 10/100 Mbps |
Transmission physics | Ethernet RJ45 | Transmission length | 100 m |
Signal LEDs | Data receive, link status | No. of channels | 16 (RJ45 ports) |
Product type | Switch | Type | Stand-Alone |
Operating mode | Semi-duplex | Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
Basic functions | Hub/repeater, compliance with IEEE 802.3 | Status and diagnostic indicators | LEDs: UL (communications voltage), COL (collision) link and receive LED per port |
Basic functions | Hub/repeater, compliance with IEEE 802.3 | Electrical isolation | 10BASE-T//100BASE-TX//Supply |
Local diagnostics | US Supply voltage Green LED
COL Telegram collisions LED red
Link status Green LED | Maximum power dissipation for nominal condition | 3.456 W |
Test section | 500 V AC 50 Hz 1 min | Transmission medium | Copper |
Supply voltage (DC) | 24 V DC | Supply voltage range | 18.5 V DC ... 30.5 V DC |
Power supply connection | Via COMBICON, max. conductor cross section 2.5 mm² | Residual ripple | 3.6 V |
Typical current consumption | typ. 144 mA (at U | Degree of protection | IP20 |
Ambient temperature (operation) | 0 °C ... 55 °C | Ambient temperature (storage/transport) | -25 °C ... 70 °C |
Permissible humidity (operation) | 30 % ... 95 % (non-condensing) | Permissible humidity (storage/transport) | 30 % ... 95 % (non-condensing) |
Vibration (operation) | in acc. with IEC 60068-2-6: 5g, 150 Hz | Air pressure (operation) | 86 kPa ... 108 kPa (1500 m above sea level) |
Air pressure (storage/transport) | 66 kPa ... 108 kPa (3500 m above sea level) | Resistance to gases that may endanger the functions, in acc. with DIN 40046-36, DIN 40046-37 | Sulfur dioxide (SO |
Free from substances that could impair the application of coating | In acc. with VW specification | Electrical isolation | 10BASE-T//100BASE-TX//Supply |
Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU | Conformance with EMC directives | IEC 61000-6-2 IEC 61000-4-2 (ESD) Criterion B
IEC 61000-4-3 (immunity to radiated interference) Criterion A
IEC 61000-4-4 (burst) Criterion B
IEC 61000-4-5 (surge) Class A
IEC 61000-4-6 (immunity to conducted interference) Criterion A
IEC 61000-4-8 (immunity to magnetic fields) Criterion A
EN 55022 (emitted interference) Criterion A |
Noise immunity | EN 61000-6-2:2005 | Noise emission | EN 61000-6-4 |
Basic functions | Hub/repeater, compliance with IEEE 802.3 | Status display | LEDs: UL (communications voltage), COL (collision) link and receive LED per port |
Specifications may be subject to change without notice
