Product Model

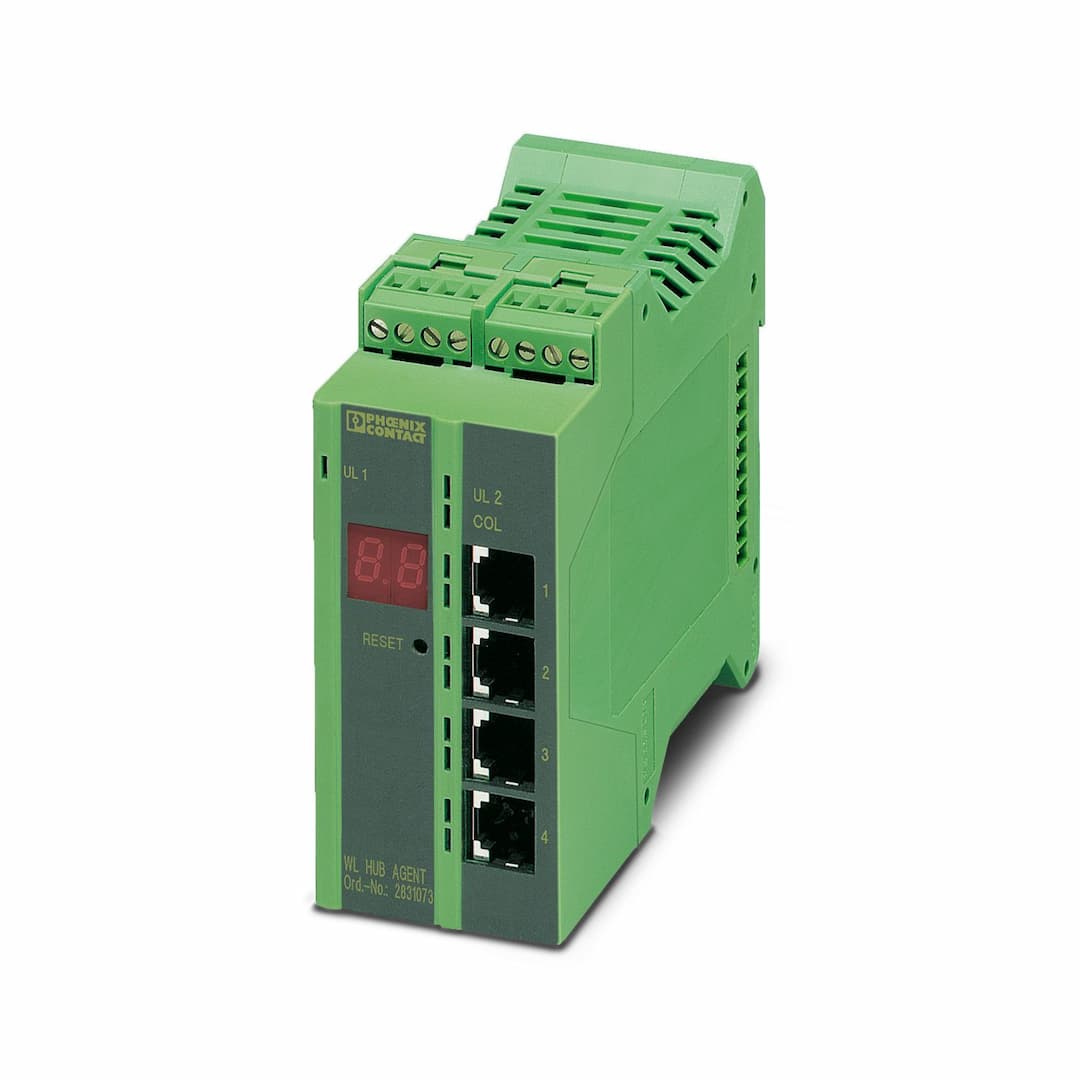

FL HUB AGENT
Selling Points
- 1Modular Hub System: The FL HUB AGENT is designed as a management head station for modular hub systems.
- 2Four 10Base-T Ports: Equipped with four 10Base-T ports for seamless network connectivity.
- 3Customizable Quotations: Offers discounted pricing for bulk orders and tailored quotes based on specific needs.
- 4Global Sourcing: Collaborates with a vast network of suppliers worldwide to source custom items.
- 5Swift Customer Service: Responds to inquiries within 24 hours and provides rapid quotations (1-3 hours).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Type | Stand-Alone | Operating mode | Semi-duplex |
Protection class | III (IEC 61140, EN 61140, VDE 0140-1) | Basic functions | Hub/Repeater, comply with IEEE 802.3, TCP/IP protocol, Boot-P and TFTP-capable |
Supported browsers | Netscape Communicator versions 4.5 and up or Internet Explorer versions 4.01 and up | Electrical isolation | 10Base-T// supply |
Power consumption | typ. 5.5 W | Local diagnostics | UL Supply voltage Green LED
COL Telegram collisions LED red
- Link status Green LED
- Telegrams received Yellow LED |
Maximum power dissipation for nominal condition | 5.2 W | Test section | 500 V AC 50 Hz 1 min |
Transmission medium | Copper | Supply voltage | 24 V DC (redundant supply is possible) |
Supply voltage range | 18.5 V DC ... 30.2 V DC | Power supply connection | Via COMBICON, max. conductor cross section 2.5 mm² |
Residual ripple | 3.6 V | Typical current consumption | 230 mA (to U |
Connection method | RJ45, shielded | Connection method | Four 10Base-T ports |
Transmission speed | 10 Mbps (half duplex) | Transmission physics | Ethernet RJ45 |
Transmission length | 100 m (per segment) | Connection method | Direct plug-in technology |
Status display | Two-digit, seven-segment display and LEDs: UL1 and UL2 (communications voltages), COL (collision) link and receive LED per port | Width | 45 mm |
Height | 99 mm | Depth | 112 mm |
Color | green | Degree of protection | IP20 |
Ambient temperature (operation) | 0 °C ... 55 °C (non-condensing) | Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Permissible humidity (operation) | 30 % ... 95 % (non-condensing) | Permissible humidity (storage/transport) | 30 % ... 95 % (non-condensing) |
Vibration (operation) | in acc. with IEC 60068-2-6: 5g, 150 Hz | Air pressure (operation) | 86 kPa ... 108 kPa (1500 m above sea level) |
Air pressure (storage/transport) | 66 kPa ... 108 kPa (3500 m above sea level) | Resistance to gases that may endanger the functions, in acc. with DIN 40046-36, DIN 40046-37 | Sulfur dioxide (SO |
Electromagnetic compatibility | Conformance with EMC directive 89/336/EC | Conformance with EMC directives | IEC 61000-6-2 IEC 61000-4-2 (ESD) Criterion B
IEC 61000-6-2 IEC 61000-4-3 (immunity to radiated interference) Criterion A
IEC 61000-6-2 IEC 61000-4-4 (burst) Criterion B
IEC 61000-6-2 IEC 61000-4-5 (surge) Criterion B
IEC 61000-6-2 IEC 61000-4-6 (immunity to conducted interference) Criterion A
IEC 61000-6-2 IEC 61000-4-8 (immunity to magnetic fields) Criterion A
IEC 61000-6-2 EN 55022 (emitted interference) Criterion A |
Noise immunity | EN 61000-6-2:2005 | Noise emission | EN 61000-6-4 |
Free from substances that could impair the application of coating | In acc. with VW specification | Electrical isolation | 10Base-T// supply |
Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
