Product Model

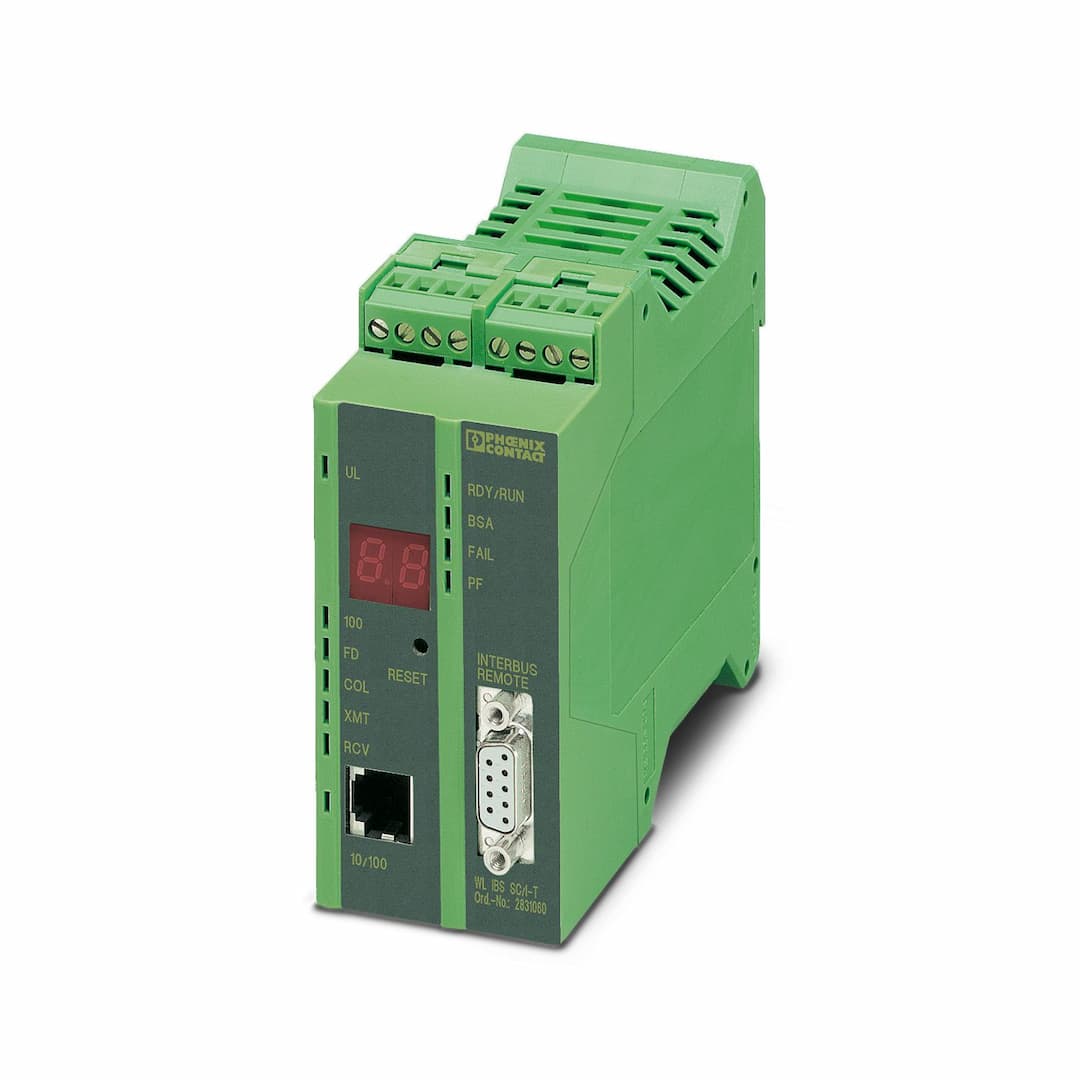

FL IBS SC/I-T
Selling Points
- 1Advanced INTERBUS Master: Supports up to 512 devices, including 256 remote bus devices/segments.
- 2High-Performance Ethernet: Compliant with IEEE 802.3 and TCP/IP protocols, with a 10/100Base-T(X) connection.
- 3Robust Insulation: Protection class III (IEC 61140, EN 61140, VDE 0140-1) for reliable operation.
- 4Durable Design: DIN rail mounting and IP20 degree of protection for harsh environments.
- 5User-Friendly Interface: Two-digit seven-segment display and LEDs for easy diagnostics and status monitoring.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Type | Stand-Alone | Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
Amount of process data | 256 words (4096 binary inputs/outputs) | Number of supported devices | 512 (of which 256 are remote bus devices/segments) |
Number of devices with parameter channel | 62 | Amount of process data | 256 words (4096 binary inputs/outputs) |
Number of PCP words | 256 words (4096 binary inputs/outputs) | Basic functions | Ethernet: Terminal equipment, complies with IEEE 802.3, TCP/IP protocol, BootP and TFTP-capable
INTERBUS: Generation 4 master |
Supported browsers | Netscape Communicator versions 4.5 and up or Internet Explorer versions 4.01 and up | Power consumption | typ. 4.8 W |
Maximum power dissipation for nominal condition | 4 W | Test section | 500 V AC 50 Hz 1 min |
Transmission medium | Copper | Supply voltage | 24 V DC (via COMBICON; max. conductor cross section 2.5 mm²) |
Supply voltage range | 18.5 V DC ... 30.2 V DC | Power supply connection | Via COMBICON, max. conductor cross section 2.5 mm² |
Residual ripple | 3.6 V | Typical current consumption | 200 mA (to U |
Connection method | 10/100 Base-T(X), auto negotiation | Connection method | 1 port 10/100Base-T(X), auto negotiation |
Transmission length | 100 m | Connection method | 9-pos. D-SUB socket strip |
Connection method | 6-pos. MINI-DIN female connector | Status display | Two-digit, seven-segment display and LEDs: UL (communications voltage), COL (collision), Link, Receive, Transmit, Full Duplex, 100 Mbps Wirespeed, INTERBUS: RDY/RUN, BSA, FAIL, PF |
Width | 45 mm | Height | 99 mm |
Depth | 117 mm | Color | green |
Degree of protection | IP20 | Ambient temperature (operation) | 0 °C ... 55 °C |
Ambient temperature (storage/transport) | -20 °C ... 70 °C | Permissible humidity (operation) | 30 % ... 95 % (non-condensing) |
Permissible humidity (storage/transport) | 30 % ... 95 % (non-condensing) | Air pressure (operation) | 86 kPa ... 108 kPa (1500 m above sea level) |
Air pressure (storage/transport) | 66 kPa ... 108 kPa (3500 m above sea level) | Resistance to gases that may endanger the functions, in acc. with DIN 40046-36, DIN 40046-37 | Sulfur dioxide (SO |
Electromagnetic compatibility | Conformance with EMC Directive 2004/108/EC | Conformance with EMC directives | IEC 61000-6-2 IEC 61000-4-2 (ESD) Criterion B
IEC 61000-6-2 IEC 61000-4-3 (immunity to radiated interference) Criterion A
IEC 61000-6-2 IEC 61000-4-4 (burst) Criterion B
IEC 61000-6-2 IEC 61000-4-5 (surge) Criterion B
IEC 61000-6-2 IEC 61000-4-6 (immunity to conducted interference) Criterion A
IEC 61000-6-2 EN 55011 (emitted interference) Class A |
Noise immunity | EN 61000-6-2:2005 | Noise emission | EN 50081-2 |
Free from substances that could impair the application of coating | In acc. with VW specification | Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
