Product Model

FL IF 2HCS 100-D

Manufacturer

Phoenix Contact

Category

Unclassified

Product ID

20816

In Stock
Last updated: 2025/4/25
View Specifications

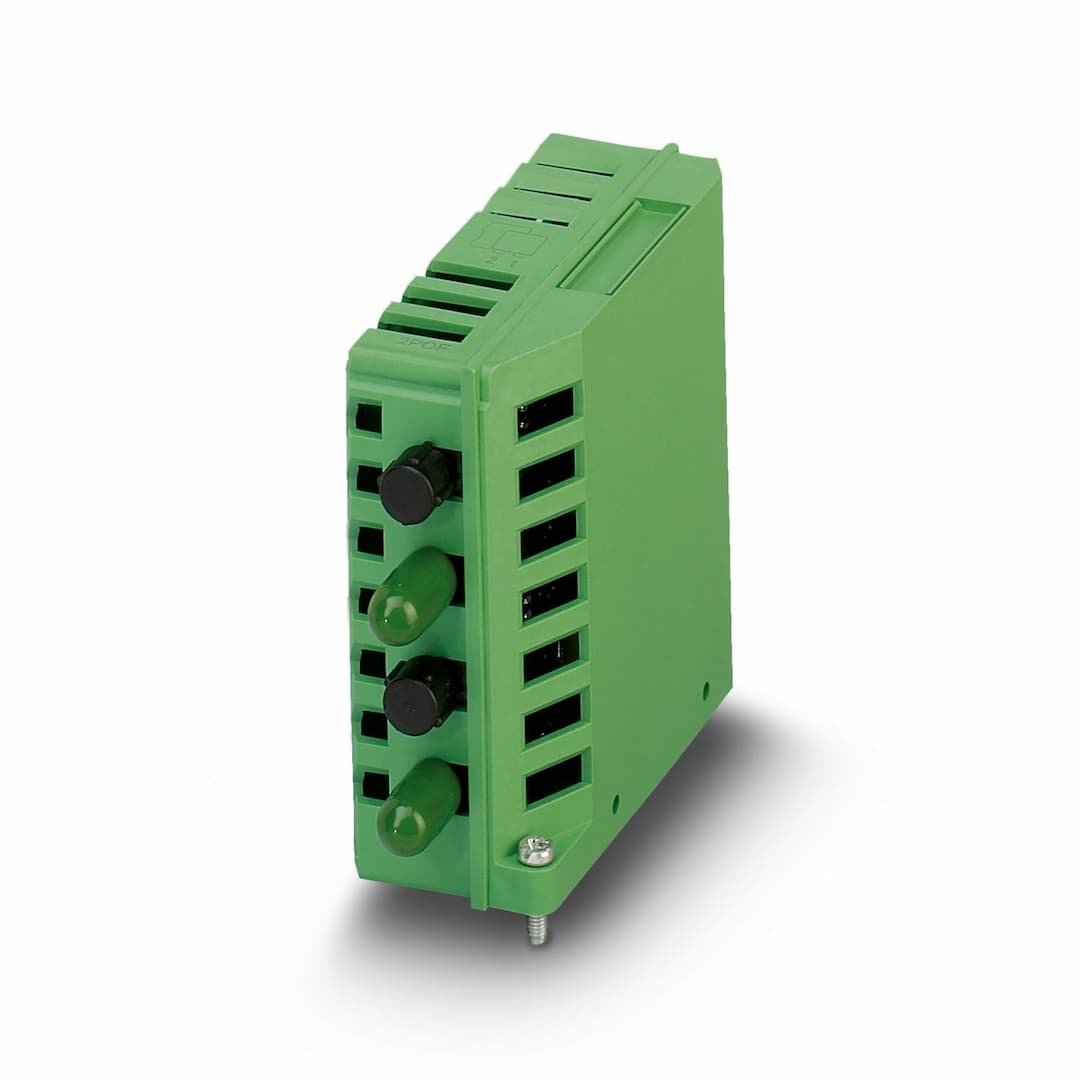

Phoenix Contact FL IF 2HCS 100-D

Selling Points

  • 1Supports distances of up to 300 meters with HCS fiber technology.
  • 2Ensures safe network operation with Rapid Spanning Tree Protocol (RSTP) and Media Redundancy Protocol (MRP).
  • 3Supports various topologies and meshed structures, including ring topologies with special ring detection.
  • 4Includes web server, SNMP agent, and terminal access point for diagnostics, maintenance, and configuration.
  • 5Meets all relevant industrial standards for EMC, climate, and mechanical load, ensuring high availability in harsh environments.
Product Details
FL IF 2HCS 100-D
Phoenix Contact

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Product type
Extension module
Type
fine granularity
Basic functions
Media module for modular managed switch
Transmission medium
FO
Supply voltage
via head station
Power supply connection
from FL SWITCH MM HS or MXT
Typical current consumption
100 mA
Connection method
Can be plugged onto FL SWITCH MM HS or FL MXT
Connection method
Can be plugged onto FL SWITCH MM HS or FL MXT
Connection method
FSMA plugs
Transmission speed
100 Mbps (connection direction downwards)
Transmission physics
Ethernet in RJ45 twisted pair
Transmission length
100 m (PCF fiber with F-S 200/230 10 dB/km)
No. of channels
2
Connection method
F-SMA connector
Transmission speed
100 Mbps
Transmission length
100 m (PCF fiber with F-S 200/230 10 dB/km)
Wavelength
650 nm
No. of channels
2
Width
31 mm
Height
75.7 mm
Depth
72.5 mm
Color
green
Flammability rating according to UL 94
V0
Housing material
PA
Degree of protection
IP20
Ambient temperature (operation)
0 °C ... 55 °C (non-condensing)
Ambient temperature (storage/transport)
-20 °C ... 70 °C
Permissible humidity (operation)
10 % ... 95 % (non-condensing)
Permissible humidity (storage/transport)
10 % ... 95 % (non-condensing)
Vibration (operation)
in acc. with IEC 60068-2-6: 5g, 150 Hz
Electromagnetic compatibility
Conformance with EMC directive 89/336/EC
Noise immunity
EN 61000-6-2:2005
Noise emission
EN 61000-6-3/-4
Mounting type
In the host system

Specifications may be subject to change without notice
