Product Model

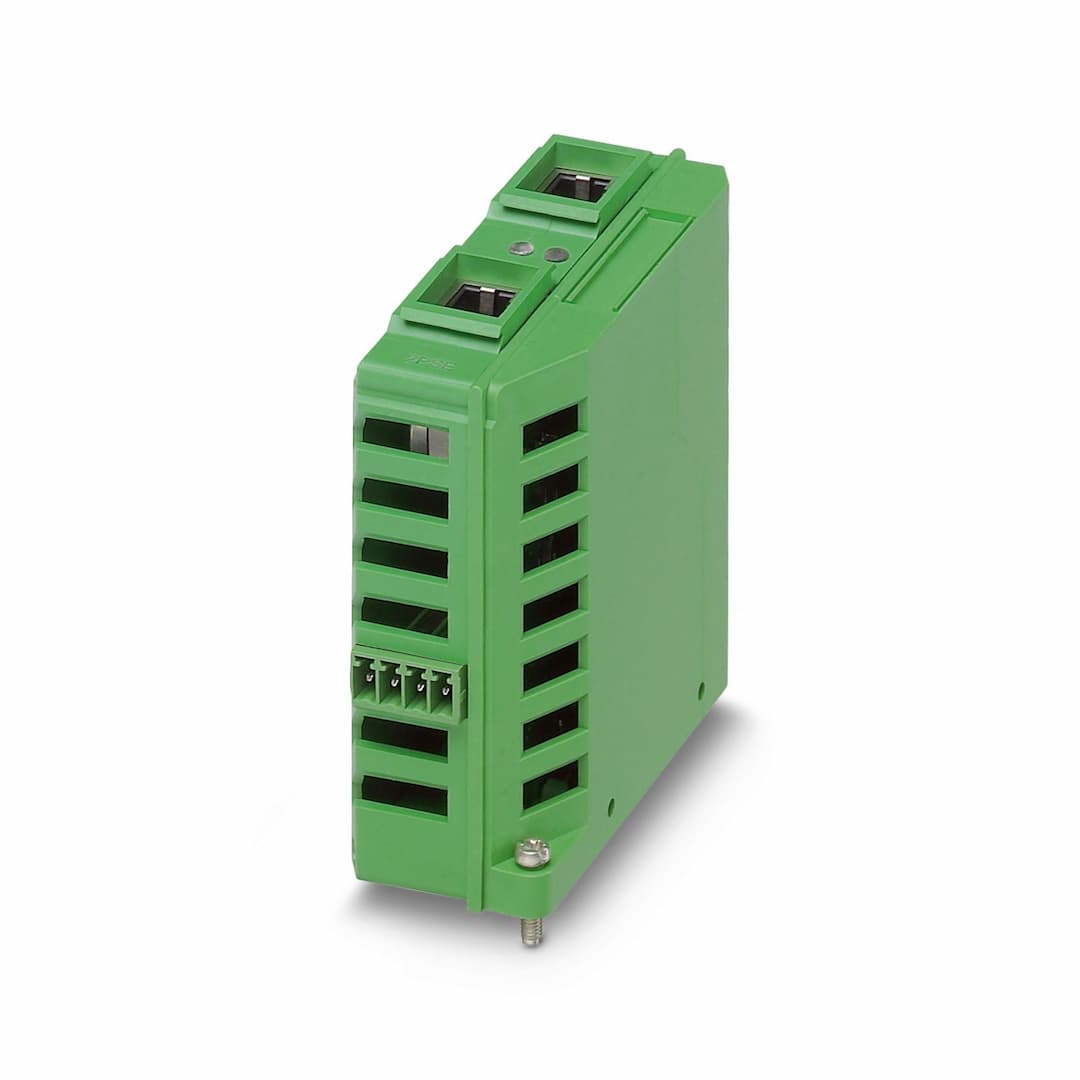

FL IF 2PSE-F
Selling Points
- 1Media Module for Industrial Ethernet: Connects PoE twisted pair ports and RJ45 interfaces for seamless industrial Ethernet integration.
- 2High Performance: Supports IEEE 802.3af standard for Power over Ethernet (PoE) and ensures reliable data transmission.
- 3Durable Design: Flammability rating V0 according to UL 94 and housing material PA 6.6 for enhanced durability.
- 4Compact Dimensions: Measures 31 mm in width, 84.7 mm in height, and 75.5 mm in depth, making it ideal for DIN rail mounting.
- 5Compliant with EMC Directives: Conforms to IEC 61000-4 series and EN 55022 for electromagnetic compatibility and noise immunity.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note on application | Only for industrial use | Product type | Extension module |
Type | Block design | Article revision | 06 |
Basic functions | Media module for Modular Managed Switch with Power over Ethernet IEEE802.3af, Power Source Equipment (PSE) | Maximum power dissipation for nominal condition | 21.6 W |
Test voltage | 500 V AC | Transmission medium | Copper |
Supply voltage | 48 V DC (Internal / 48 V DC for PoE) | Supply voltage range | 45.5 V DC ... 53 V DC |
Power supply connection | from FL SWITCH GHS or FXT | Typical current consumption | 10 mA (max. 900 mA) |
Connection method | Can be plugged onto FL SWITCH MM HS or FL MXT | Connection method | COMBICON |
Supply voltage | 48 V DC (via COMBICON; max. conductor cross section 2.5 mm²) | Supply voltage range | 44 V DC ... 53 V DC |
Current consumption | max. 850 mA | Connection method | Can be plugged onto FL SWITCH MM HS or FL MXT |
Connection method | RJ45 | Transmission speed | 10/100 Mbps (connection direction forwards) |
Transmission physics | Ethernet in RJ45 twisted pair | Transmission length | 100 m (per segment) |
No. of channels | 2 (PoE ports) | Transmission speed | 10/100 Mbps (connection direction forwards) |
Transmission length | 100 m (per segment) | No. of channels | 2 |
Width | 31 mm | Height | 84.7 mm |
Depth | 75.5 mm | Color | green |
Flammability rating according to UL 94 | V0 | Housing material | PA 6.6 |
Degree of protection | IP20 | Ambient temperature (operation) | -20 °C ... 55 °C (non-condensing) |
Ambient temperature (storage/transport) | -20 °C ... 70 °C | Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) | Vibration (operation) | in acc. with IEC 60068-2-6: 5g, 150 Hz |
Electromagnetic compatibility | Conformance with EMC Directive 2004/108/EC | Conformance with EMC directives | IEC 61000-6-2 IEC 61000-4-2 (ESD) Criterion B
IEC 61000-4-3 (immunity to radiated interference) Criterion A
IEC 61000-4-4 (burst) Criterion A
IEC 61000-4-5 (surge) Criterion A
IEC 61000-4-6 (immunity to conducted interference) Criterion A
IEC 61000-4-8 (immunity to magnetic fields) Criterion A
EN 55022 (emitted interference) Criterion A |
Noise immunity | EN 61000-6-2:2005 | Noise emission | EN 61000-6-3/-4 |
Free from substances that could impair the application of coating | In acc. with VW specification | Mounting type | In the host system |
Specifications may be subject to change without notice
