Product Model

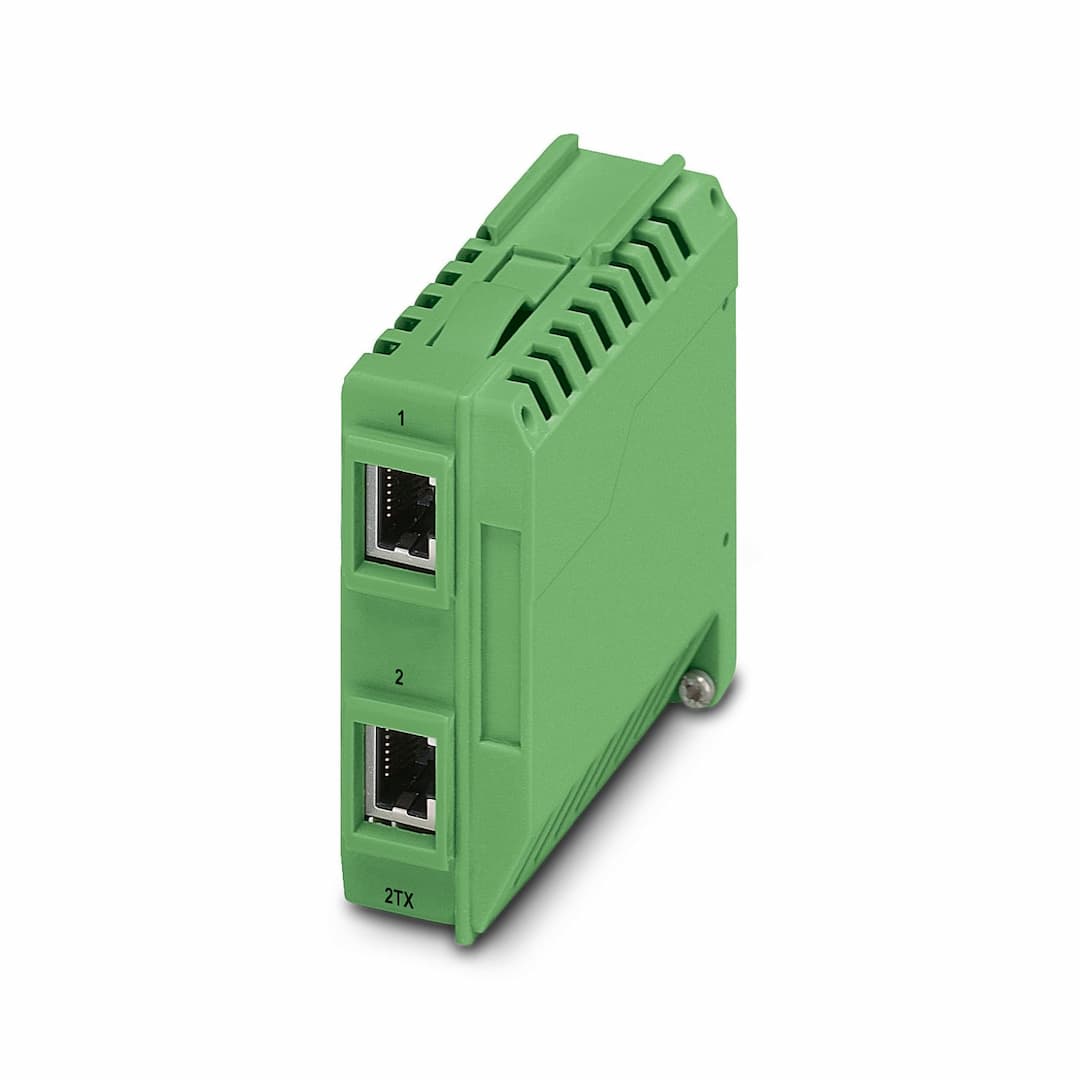

FL IF 2TX VS-RJ-D
Selling Points
- 1The FL IF 2TX VS-RJ-D offers 2 RJ45 ports for secure and stable Ethernet connections.
- 2Supports transmission speeds of 10/100 Mbps in a downward connection direction, ensuring fast data communication.
- 3Built with PA 6.6 housing material, ensuring long-lasting performance in demanding environments.
- 4Operates within -20 °C to 55 °C ambient temperature and 10% to 95% humidity, making it versatile for various industrial settings.
- 5Designed for easy installation in the host system, ideal for streamlined setup in control panels.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note on application | Only for industrial use | Product type | Extension module |
Type | Stand-Alone | Article revision | 07 |
Basic functions | Media module for modular managed switch | Maximum power dissipation for nominal condition | 21.6 W |
Transmission medium | Copper | Supply voltage | via head station |
Power supply connection | from FL SWITCH GHS or FXT | Typical current consumption | 10 mA |
Connection method | RJ45 | Transmission speed | 10/100 Mbps (connection direction downwards) |
Transmission physics | Ethernet in RJ45 twisted pair | Transmission length | 100 m (per segment) |
No. of channels | 2 (RJ45 ports) | Transmission speed | 10/100 Mbps (connection direction downwards) |
Transmission length | 100 m (per segment) | Width | 31 mm |
Height | 75 mm | Depth | 72.5 mm |
Color | green | Flammability rating according to UL 94 | V0 |
Housing material | PA 6.6 | Degree of protection | IP20 |
Ambient temperature (operation) | -20 °C ... 55 °C (non-condensing) | Ambient temperature (storage/transport) | -20 °C ... 80 °C |
Permissible humidity (operation) | 10 % ... 95 % (non-condensing) | Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) |
Vibration (operation) | in acc. with IEC 60068-2-6: 5g, 150 Hz | Electromagnetic compatibility | Conformance with EMC Directive 2004/108/EC |
Conformance with EMC directives | IEC 61000-6-2 IEC 61000-4-2 (ESD) Criterion B
IEC 61000-4-3 (immunity to radiated interference) Criterion A
IEC 61000-4-4 (burst) Criterion A
IEC 61000-4-5 (surge) Criterion A
IEC 61000-4-6 (immunity to conducted interference) Criterion A
IEC 61000-4-8 (immunity to magnetic fields) Criterion A
EN 55022 (emitted interference) Criterion A | Noise immunity | EN 61000-6-2:2005 |
Noise emission | EN 61000-6-3/-4 | Free from substances that could impair the application of coating | In acc. with VW specification |
Mounting type | In the host system |
Specifications may be subject to change without notice
