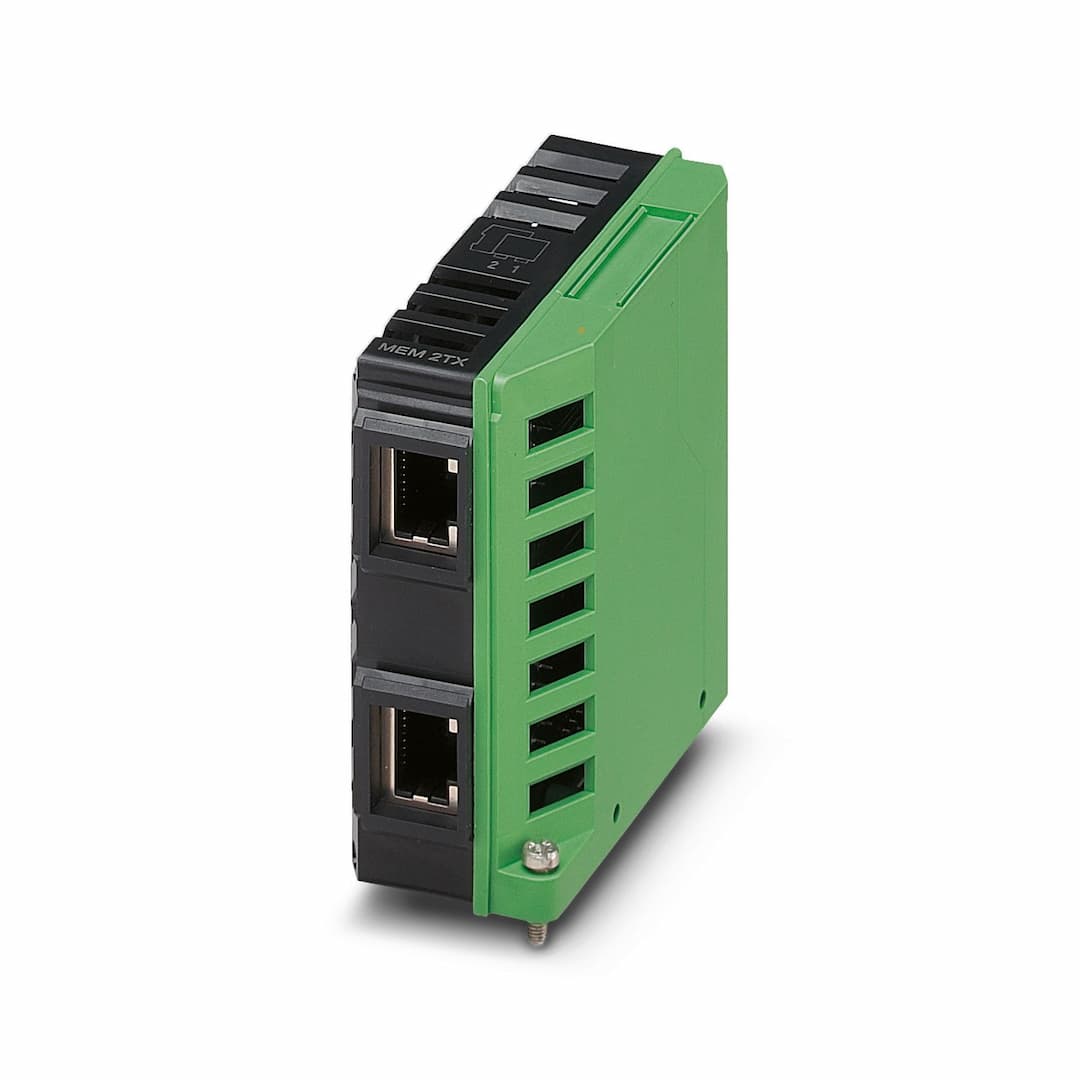

Product Model
FL IF MEM 2TX-D
Selling Points
- 131 mm width, 78 mm height, and 72.5 mm depth for easy DIN rail integration.
- 2Supports 10/100 Mbps Ethernet with RJ45 female connectors.
- 3Operates in ambient temperatures from 0°C to 55°C and humidity levels of 10% to 95%.
- 4Meets IEC 61000-6-2 and EN 61000-6-3 standards for electromagnetic compatibility.
- 5Suitable for configuration memory and MRP (Media Redundancy Protocol) management.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Storage medium | Type | fine granularity |
Basic functions | Configuration memory (plug-in) | Supply voltage | via head station |
Power supply connection | from FL SWITCH MM HS or MXT | Typical current consumption | 10 mA |
Connection method | RJ45 jack | Transmission speed | 10/100 Mbps |
Transmission physics | Copper | Transmission length | 100 m |
No. of channels | 2 | Width | 31 mm |
Height | 78 mm | Depth | 72.5 mm |
Color | green | Housing material | PA |
Degree of protection | IP20 | Ambient temperature (operation) | 0 °C ... 55 °C (non-condensing) |
Ambient temperature (storage/transport) | -20 °C ... 70 °C | Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) | Electromagnetic compatibility | Conformance with EMC Directive 2004/108/EC |
Conformance with EMC directives | IEC 61000-6-2 IEC 61000-4-2 (ESD) Criterion B
IEC 61000-4-3 (immunity to radiated interference) Criterion A
IEC 61000-4-4 (burst) Criterion A
IEC 61000-4-5 (surge) Criterion A
IEC 61000-4-6 (immunity to conducted interference) Criterion A
IEC 61000-4-8 (immunity to magnetic fields) Criterion A
EN 55022 (emitted interference) Criterion A | Noise immunity | EN 61000-6-2:2005 |
Noise emission | EN 61000-6-3/-4 | Mounting type | In the host system |
Specifications may be subject to change without notice
