Product Model

FL IF TX/POF 10/100-D

Manufacturer

Phoenix Contact

Category

Unclassified

Product ID

19220

In Stock
Last updated: 2025/4/25
View Specifications

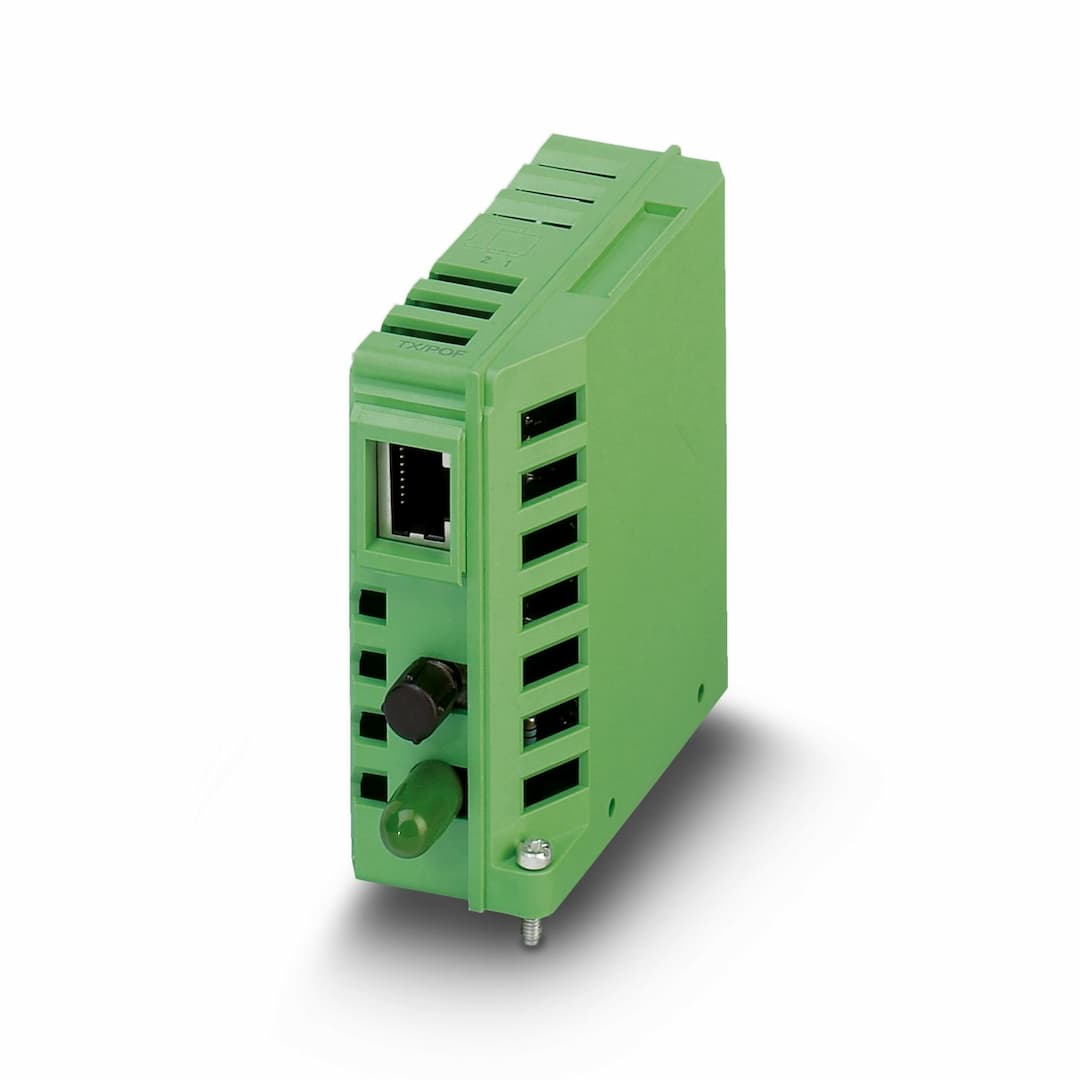

Phoenix Contact FL IF TX/POF 10/100-D

Selling Points

  • 1Versatile Connectivity: Supports both twisted pair and POF (Polymer Optical Fiber) interfaces for diverse network configurations.
  • 2High-Speed Data Transfer: Compatible with 10/100 Mbps data transfer rates, ensuring efficient communication.
  • 3Compact Design: Designed for easy integration into various industrial settings, minimizing space requirements.
  • 4Reliable Performance: Built to withstand harsh industrial environments with robust construction and reliable operation.
  • 5Flexible Configuration: Can be individually equipped with interface modules to meet specific network needs.
Product Details
FL IF TX/POF 10/100-D
Phoenix Contact

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Product type
Extension module
Type
fine granularity
Basic functions
Media module for modular managed switch
Transmission medium
FO Copper
Supply voltage
via head station
Power supply connection
from FL SWITCH MM HS or MXT
Typical current consumption
60 mA
Connection method
Can be plugged onto FL SWITCH MM HS or FL MXT
Connection method
Can be plugged onto FL SWITCH MM HS or FL MXT
Connection method
RJ45 jack
Transmission speed
10/100 Mbps
Transmission physics
Copper
Transmission length
100 m
No. of channels
1
Connection method
FSMA plugs
Transmission speed
10/100 Mbps
Transmission physics
FO
Transmission length
50 m (including 3 dB system reserve, polymer fiber with F-K 980/1000 230 dB/km)
Wavelength
650 nm
No. of channels
1
Width
31 mm
Height
80.3 mm
Depth
72.5 mm
Color
green
Flammability rating according to UL 94
V0
Housing material
PA
Degree of protection
IP20
Ambient temperature (operation)
0 °C ... 55 °C (non-condensing)
Ambient temperature (storage/transport)
-20 °C ... 70 °C
Permissible humidity (operation)
10 % ... 95 % (non-condensing)
Permissible humidity (storage/transport)
10 % ... 95 % (non-condensing)
Electromagnetic compatibility
Conformance with EMC directive 89/336/EC
Noise immunity
EN 61000-6-2:2005
Noise emission
EN 61000-6-3/-4
Mounting type
In the host system

Specifications may be subject to change without notice
