Product Model

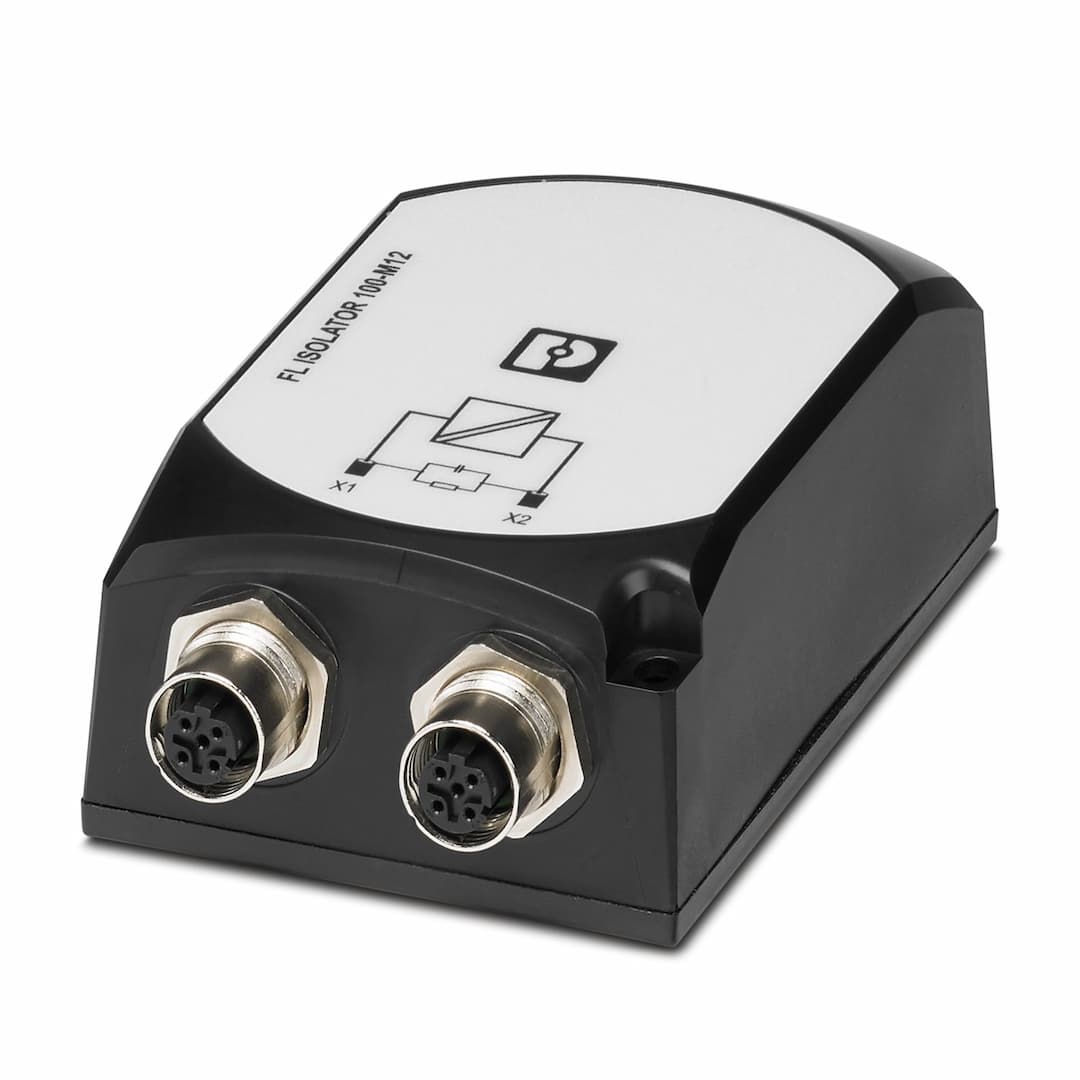

FL ISOLATOR 100-M12
Selling Points
- 1Protects Ethernet devices from potential differences of up to 4 kV.
- 2Supports transmission speeds of up to 100 Mbps.
- 3Flexible connection via two M12 sockets (D-coded).
- 4Operates in temperatures from -40°C to +75°C.
- 5Designed for harsh industrial environments with coated PCB for protection against aggressive influences.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note on application | Only for industrial use | Product type | Network isolator |
MTTF | 18372 Years (SN 29500 standard, temperature 25°C, operating cycle 21%)
13381 Years (SN 29500 standard, temperature 40°C, operating cycle 34.25%)
3348 Years (SN 29500 standard, temperature 40°C, operating cycle 100%) | MTBF | 38062 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day))
12264 Years (Telcordia standard, 40°C temperature, 34.25% operating cycle (5 days a week, 12 hours a day)) |
Article revision | 02 | Electrical isolation | Port X1//port X2 |
Insulation voltage input/output | 250 V | Test voltage data interface/data interface | 4 kV AC (50 Hz, 1 min.) |
Supply voltage range | passive module, no supply voltage required | Signal | Ethernet
PROFINET |
Serial transmission speed | 10/100 Mbps | Connection method | M12 connectors (D-coded, female) |
No. of channels | 1 | Tightening torque | ≤ 2 Nm |
Transmission length | ≤ 100 m (Total length across both ports (dependent on data rate and cable used)) | Protocols supported | Transparent protocol for IPv4 and IPv6 |
Connection method | M12 connectors (D-coded, female) | No. of channels | 1 |
Width | 66 mm | Height | 91 mm |
Depth | 34 mm | Color (Housing) | black (RAL 9005) |
Material (Housing) | Polycarbonate | Material (Lower part) | PC-ABS |
Shielding | no connection to protective earth ground (PE)
capacitive isolation between both shield connections | Degree of protection | IP54 |
Ambient temperature (operation) | -40 °C ... 75 °C (85°C for 10 min.; thereafter function can no longer be guaranteed - check device) | Ambient temperature (storage/transport) | -40 °C ... 75 °C |
Altitude | ≤ 5000 m (For restrictions, see the manufacturer's declaration for altitude operation) | Permissible humidity (operation) | 10 % ... 95 % |
Permissible humidity (storage/transport) | 5 % ... 95 % | Certificate | CE-compliant |
Identification | ISA-S71.04-1985 G3 Harsh Group A | Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
Standards/regulations | EN 61000-4-4 | Standards/regulations | EN 61000-6-4 |
Radio interference voltage in acc. with EN 55011 | Class B, area of application: Industry and residential | Emitted radio interference in acc. with EN 55011 | Class B, area of application: Industry and residential |
Standards/regulations | EN 50121 and EN 50155 (for railway applications)
IEC 60571
IEC 62368
Suitable in accordance with SELV EN 50153 | Mounting type | Wall mounting |
Specifications may be subject to change without notice
