Product Model

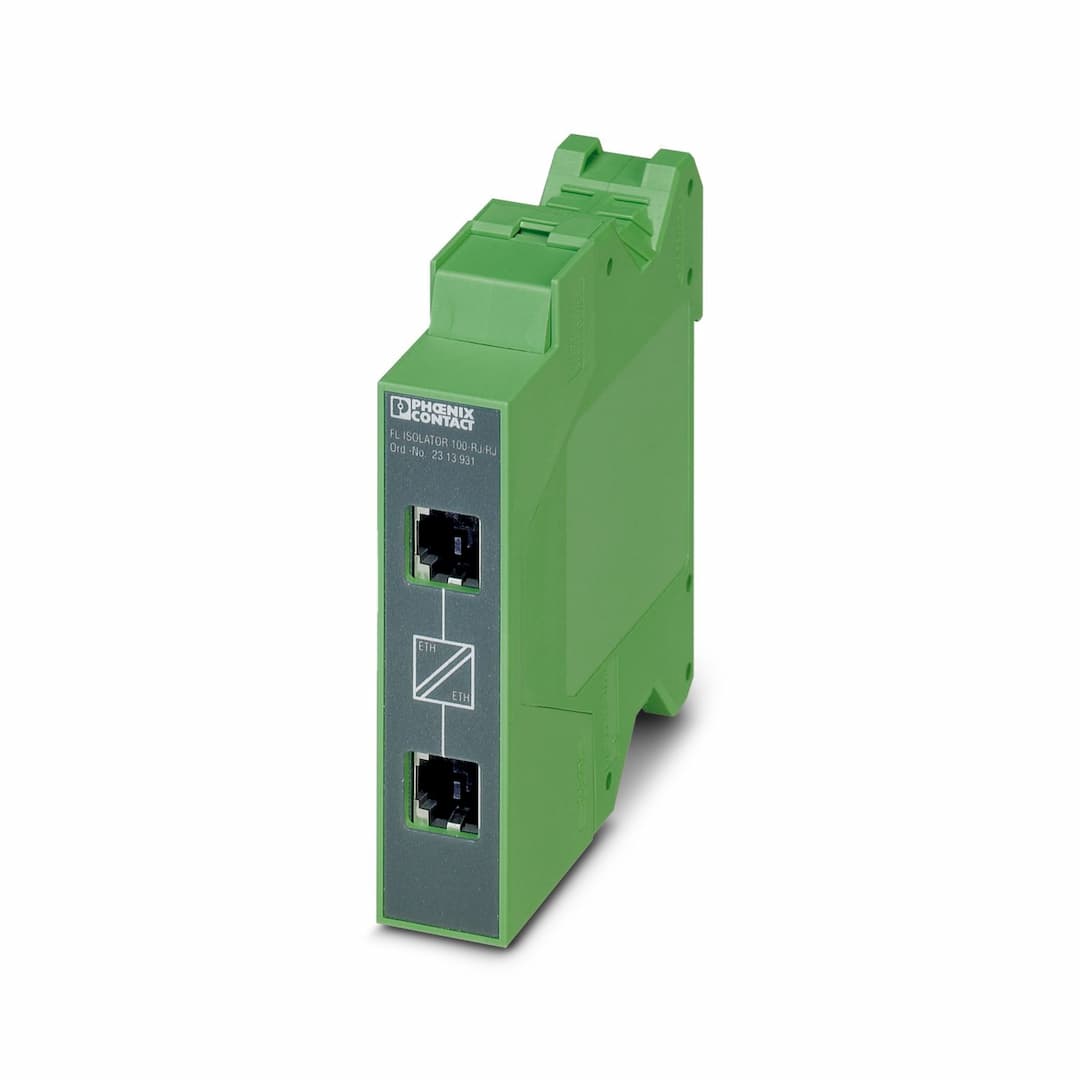

FL ISOLATOR 100-RJ/RJ
Selling Points
- 1Provides up to 4 kV electrical isolation for reliable protection against potential differences.
- 2Supports transmission speeds of up to 100 Mbps for efficient data transfer.
- 3Easily connects two RJ45 plugs for seamless Ethernet network integration.
- 4Designed for harsh industrial environments with an extended temperature range of -25°C to +85°C.
- 5Conveniently mounts on EN DIN rails for easy installation and space-saving design.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note on application | Only for industrial use | Product type | Network isolator |
MTBF | 7993 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day))
4201 Years (Telcordia standard, 40°C temperature, 34.25% operating cycle (5 days a week, 12 hours a day)) | Article revision | 03 |
Electrical isolation | Ethernet // Ethernet | Insulation voltage input/output | 250 V |
Test voltage data interface/data interface | 4 kV AC (50 Hz, 1 min.) | Tightening torque | 0.56 Nm ... 0.79 Nm |
Signal | Ethernet
PROFINET | Serial transmission speed | 10/100 Mbps |
Connection method | RJ45 jack | No. of channels | 1 |
Transmission length | ≤ 100 m (Total length across both ports (dependent on data rate and cable used)) | Serial transmission speed | 10/100 Mbps |
Connection method | RJ45 jack | No. of channels | 1 |
Width | 22.5 mm | Height | 99 mm |
Depth | 92 mm | Color (Housing) | green (RAL 6021) |
Material (Housing) | PA 6.6-FR | Degree of protection | IP20 |
Ambient temperature (operation) | -25 °C ... 75 °C | Ambient temperature (storage/transport) | -25 °C ... 85 °C |
Altitude | ≤ 5000 m (For restrictions, see the manufacturer's declaration for altitude operation) | Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) | Certificate | CE-compliant |
Identification | 508 Listed | Identification | ISA-S71.04-1985 G3 Harsh Group A |
Identification | DNV GL | Temperature | B |
Humidity | A | Vibration | A |
EMC | B | Enclosure | Required protection according to the Rules shall be provided upon installation on board |
Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU | Standards/regulations | EN 61000-4-2 |
Standards/regulations | EN 61000-4-3 | Frequency range | 26 MHz ... 3 GHz (Test Level 3) |
Field intensity | 20 V/m | Comments | Criterion A |
Standards/regulations | EN 61000-4-4 | Standards/regulations | EN 61000-4-6 |
Frequency range | 0.15 MHz ... 80 MHz | Comments | Criterion A |
Voltage | 10 V | Standards/regulations | EN 61000-6-4 |
Radio interference voltage in acc. with EN 55011 | Class B, area of application: Industry and residential | Emitted radio interference in acc. with EN 55011 | Class B, area of application: Industry and residential |
Standards/regulations | EN 50121 and EN 50155 (for railway applications) | Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
