Product Model

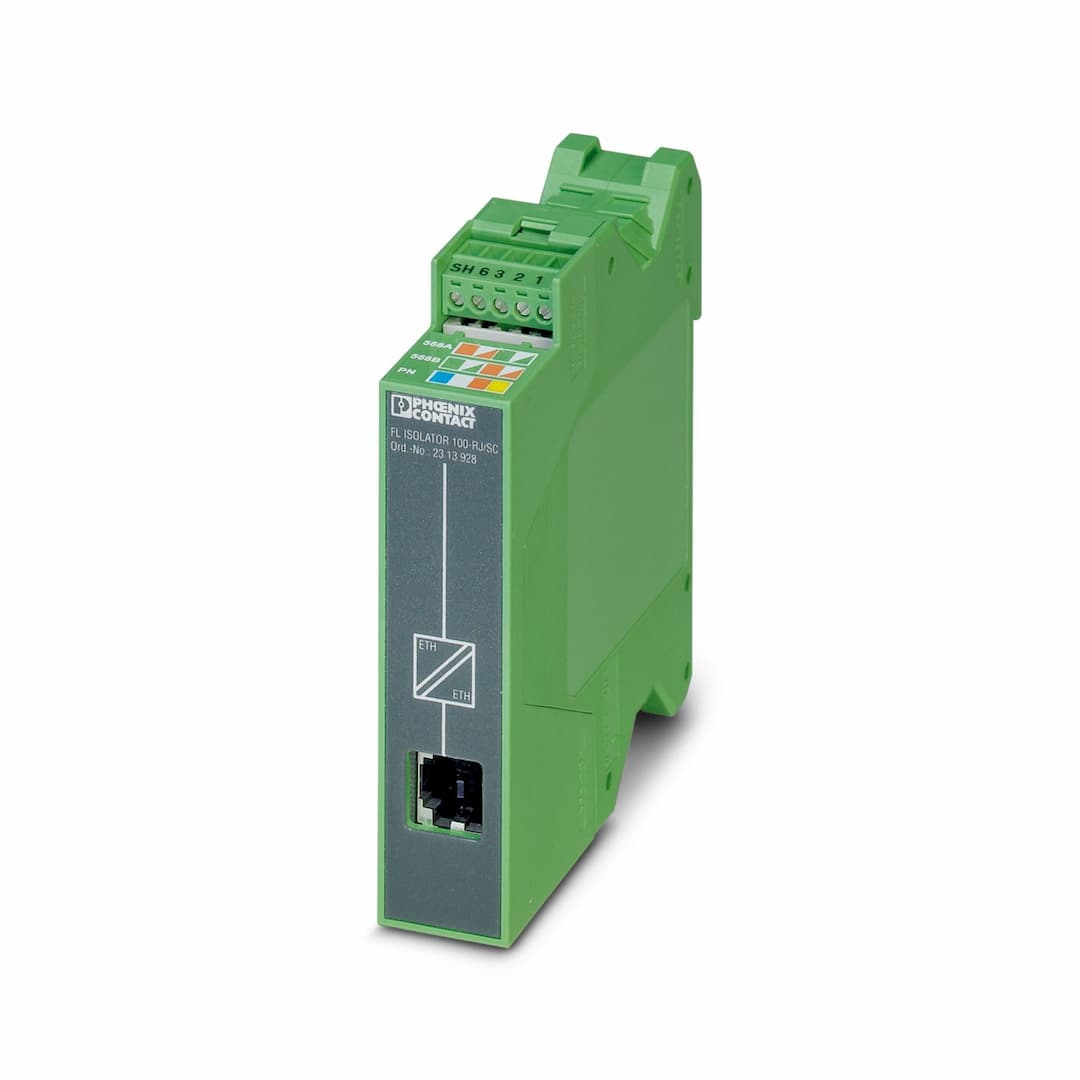

FL ISOLATOR 100-RJ/SC
Selling Points
- 1Electrical Isolation Up to 4 kV: Safeguards Ethernet devices from potential differences.
- 2Transmission Speeds Up to 100 Mbps: Supports high-speed data transmission in industrial settings.
- 3RJ45 and COMBICON Connectivity: Easy connection options for seamless integration.
- 4Durable and Reliable Design: Constructed with PA 6.6-FR housing material for long-lasting performance.
- 5Wide Operating Temperature Range: Operates from -25 °C to 75 °C, suitable for various industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Network isolator | MTBF | 5575 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day))
3094 Years (Telcordia standard, 40°C temperature, 34.25% operating cycle (5 days a week, 12 hours a day)) |
Article revision | 03 | Electrical isolation | Ethernet // Ethernet |
Insulation voltage input/output | 250 V | Test voltage data interface/data interface | 4 kV AC (50 Hz, 1 min.) |
Tightening torque | 0.56 Nm ... 0.79 Nm | Signal | Ethernet
PROFINET |
Serial transmission speed | 10/100 Mbps | Connection method | RJ45 jack |
No. of channels | 1 | Transmission length | ≤ 100 m (Total length across both ports (dependent on data rate and cable used)) |
Connection method | Screw connection | No. of channels | 1 |
Conductor cross section flexible max. | 1.5 mm² | Conductor cross section flexible min. | 0.14 mm² |
Conductor cross section, rigid max. | 1.5 mm² | Conductor cross section, rigid min. | 0.14 mm² |
Conductor cross section AWG max. | 16 | Conductor cross section AWG min. | 26 |
Width | 22.5 mm | Height | 99 mm |
Depth | 92 mm | Color (Housing) | green (RAL 6021) |
Material (Housing) | PA 6.6-FR | Degree of protection | IP20 |
Ambient temperature (operation) | -25 °C ... 75 °C | Ambient temperature (storage/transport) | -25 °C ... 85 °C |
Altitude | ≤ 5000 m (For restrictions, see the manufacturer's declaration for altitude operation) | Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) | Certificate | CE-compliant |
Identification | 508 Listed | Identification | ISA-S71.04-1985 G3 Harsh Group A |
Identification | DNV GL | Temperature | B |
Humidity | A | Vibration | A |
EMC | B | Enclosure | Required protection according to the Rules shall be provided upon installation on board |
Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU | Standards/regulations | EN 61000-4-2 |
Standards/regulations | EN 61000-4-3 | Frequency range | 26 MHz ... 3 GHz (Test Level 3) |
Field intensity | 20 V/m | Comments | Criterion A |
Standards/regulations | EN 61000-4-4 | Standards/regulations | EN 61000-4-6 |
Frequency range | 0.15 MHz ... 80 MHz | Comments | Criterion A |
Voltage | 10 V | Standards/regulations | EN 61000-6-4 |
Radio interference voltage in acc. with EN 55011 | Class B, area of application: Industry and residential | Emitted radio interference in acc. with EN 55011 | Class B, area of application: Industry and residential |
Standards/regulations | EN 50121 and EN 50155 (for railway applications) | Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
