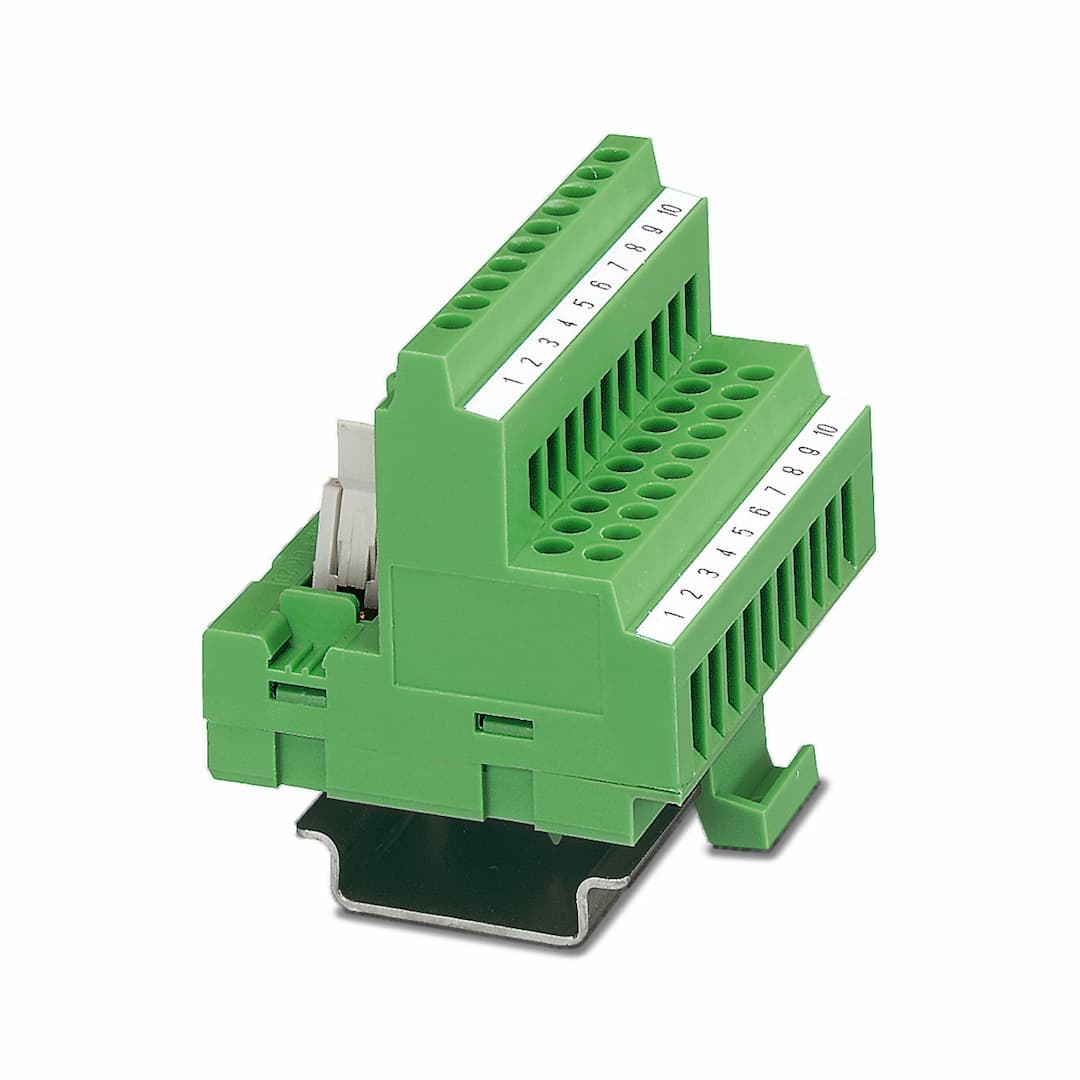

Phoenix Contact FLK 10 Interface Module - Reliable Connection Solutions

Selling Points

1Standard 1:1 FLK Module: Designed for precise and reliable data transfer with a spring-cage connection.
210 Positions: Accommodates up to 10 connections, ideal for various industrial applications.
3Flat-Ribbon Cable Connector: Ensures secure and efficient data transfer with minimal space requirements.
4Ambient Temperature Range: Operates between -20°C to 50°C, suitable for diverse environmental conditions.
5IP20 Degree of Protection: Provides basic protection against solid objects and dust, ensuring reliable operation in most settings.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Product type	Interface module	Number of positions	10
Overvoltage category	II	Pollution degree	2
Nominal voltage U	< 50 V AC 60 V DC	Max. current carrying capacity per branch	1 A
Connection in acc. with standard	IEC / EN	Connection method	Screw connection
Stripping length	8 mm	Screw thread	M3
Conductor cross section rigid	0.2 mm² ... 4 mm²	Conductor cross section flexible	0.2 mm² ... 2.5 mm²
Conductor cross section AWG	24 ... 12	Connection method	IDC/FLK pin strip
Number of positions	10	Pitch	2.54 mm
Status display	no	Status display present	No
Width	60 mm	Height	50 mm
Depth	58.5 mm	Color	green (RAL 6021)
Housing insulation material	Polyamide 6 green	Ambient temperature (operation)	-20 °C ... 50 °C
Ambient temperature (storage/transport)	-20 °C ... 70 °C	Standards/regulations	IEC 60664 DIN EN 50178
Mounting type	DIN rail mounting	Mounting position	any
Notes on operation	For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.

Specifications may be subject to change without notice
