Product Model

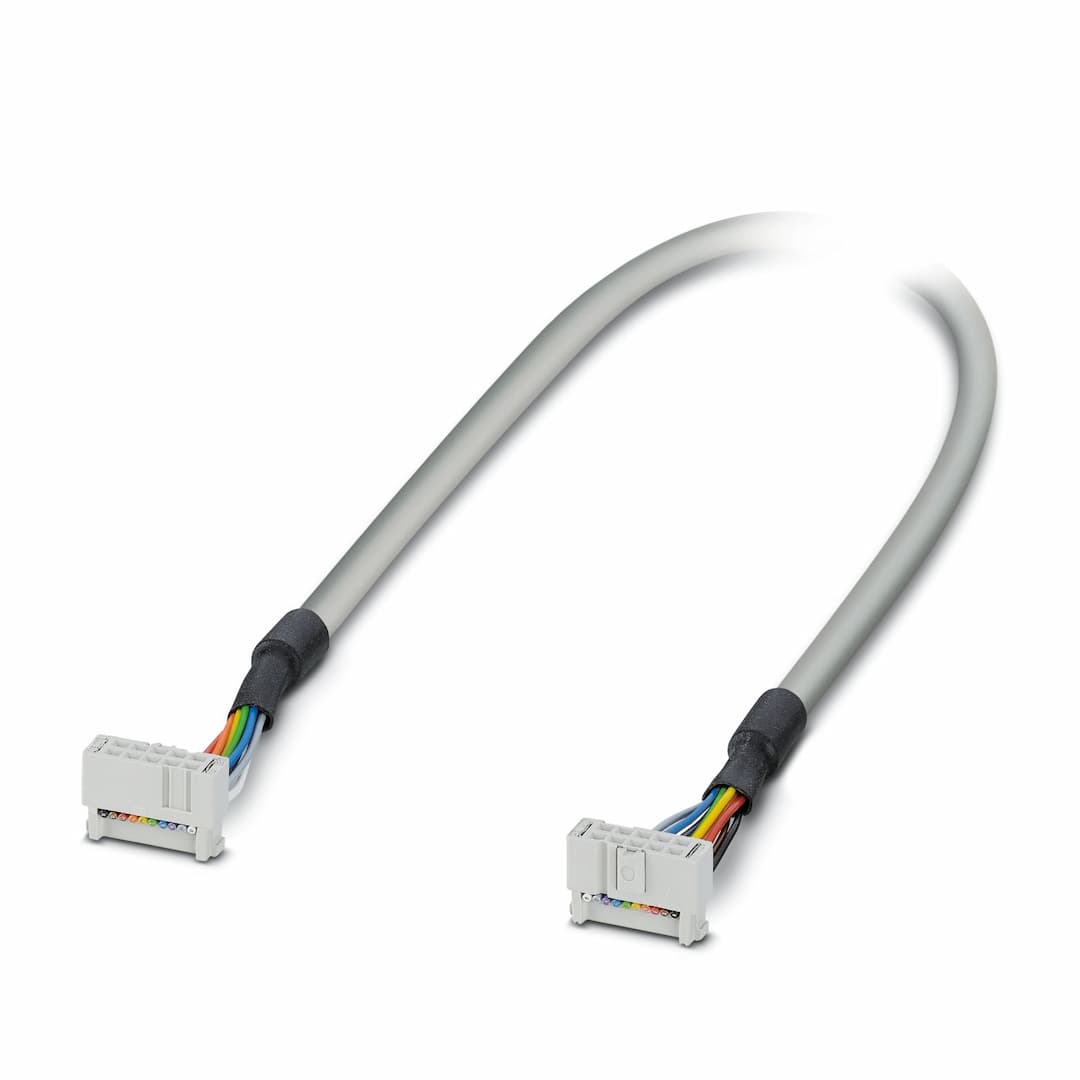

FLK 10/EZ-DR/1000/KONFEK
Selling Points
- 1High-Quality Connectivity: Ensures reliable and efficient connections in industrial automation applications.
- 210-Position IDC/FLK Socket Strips: Supports up to 10 connections with easy insertion and withdrawal cycles.
- 310-Meter Length: Conveniently pre-assembled with male connector strips for easy installation.
- 4UL AWM Style 2464/1061: Meets stringent safety standards for electrical insulation and flame resistance.
- 5Suitable for Emerson DeltaV: Compatible with Emerson DeltaV controllers, enhancing system integration and performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | System cable | Article revision | 03 |
Degree of protection | IP00 | Degree of protection (Installation location) | ≥ IP54 (Installation location) |
Ambient temperature (operation) | -40 °C ... 70 °C (fixed installation)
-10 °C ... 70 °C (flexible installation) | Ambient temperature (storage/transport) | -40 °C ... 80 °C |
Altitude | ≤ 2000 m | Operating voltage (AC) | ≤ 30 V AC |
Operating voltage (DC) | ≤ 60 V DC | Nominal operating mode | 100% operating factor |
Current (Per path, 50°C) | ≤ 1 A (Uncoiled, see derating) | Current (Per path, 70°C) | ≤ 0.6 A (Uncoiled, see derating) |
Suitable I/O card | VE4002S1T2B4 | Cable length | 10 m |
UL AWM Style | 2464/1061 | Number of positions | 10 |
Shielded | no | Cable type | 10X0.14 [PVC] |
Conductor type | Round cable set | Conductor structure signal line | 7x 0.16 mm |
AWG signal line | 26 | Conductor cross section | 10x 0.14 mm² |
Wire diameter incl. insulation | 1 mm ±0.03 mm | External cable diameter | 6.10 mm ±0.4 mm |
Outer sheath, material | Semi-rigid PVC | External sheath, color | gray |
Conductor material | Tin-plated Cu litz wires | Cable resistance | ≤ 145 Ω/km (20 °C) |
Insulation resistance | ≥ 20 MΩ*km (20 °C) | Smallest bending radius, fixed installation | 52 mm |
Smallest bending radius, movable installation | 98 mm | Dynamic load capacity (bending) | Max. bending cycles: 5000 |
Halogen-free | no | Flame resistance | IEC 60332-1-2 (raw cable)
VDE 0842, Part 332-1-2 (raw cable)
IEC 60332-3-22 (raw cable)
UL VW-1
CSA FT-1 |
Resistance to oil | can withstand occasional splashes (raw cable) | Cable type | Cable for one module |
black | IDC/FLK10 (1) = IDC/FLK10 (1) | brown | IDC/FLK10 (2) = IDC/FLK10 (2) |
red | IDC/FLK10 (3) = IDC/FLK10 (3) | orange | IDC/FLK10 (4) = IDC/FLK10 (4) |
yellow | IDC/FLK10 (5) = IDC/FLK10 (5) | green | IDC/FLK10 (6) = IDC/FLK10 (6) |
blue | IDC/FLK10 (7) = IDC/FLK10 (7) | violet | IDC/FLK10 (8) = IDC/FLK10 (8) |
gray | IDC/FLK10 (9) = IDC/FLK10 (9) | white | IDC/FLK10 (10) = IDC/FLK10 (10) |
Connection in acc. with standard | IEC 60603-13 (in compliance) | Connection method | IDC/FLK socket strip |
Number of connections | 1 | Number of positions | 10 |
Insertion/withdrawal cycles | > 50 | Pitch | 2.54 mm |
Connection in acc. with standard | IEC 60603-13 (in compliance) | Connection method | IDC/FLK socket strip |
Number of connections | 1 | Number of positions | 10 |
Insertion/withdrawal cycles | > 50 | Pitch | 2.54 mm |
Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
