Product Model
FLK 14-20-EZ-DR-DV-SOE/...
Selling Points

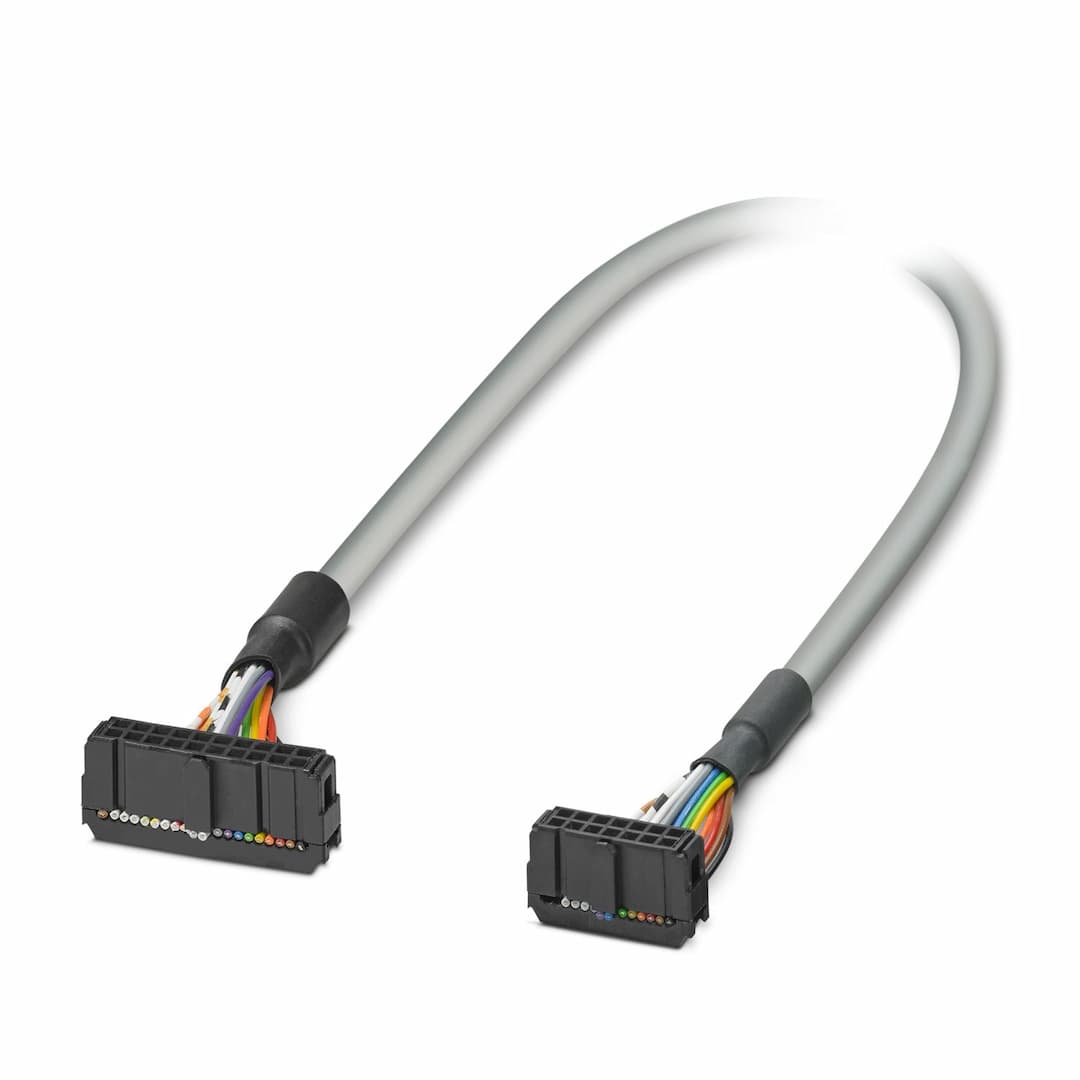

- 1Assembled round cable with 14-pos and 20-pos socket strips for precise signal transmission in Emerson DeltaV systems.
- 2Compatible with IDC/FLK socket strips and designed for reliable connections in industrial environments.
- 3Suitable for both 14-pos and 20-pos configurations, catering to various application needs.
- 4Constructed with durable PVC insulation and round cable set for long-lasting performance.
- 5Simple to install with IDC connectors, ensuring quick setup and minimal downtime.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | System cable | Degree of protection | IP00 |
Degree of protection (Installation location) | ≥ IP54 (Installation location) | Ambient temperature (operation) | -40 °C ... 70 °C (fixed installation)
-10 °C ... 70 °C (flexible installation) |
Ambient temperature (storage/transport) | -40 °C ... 80 °C | Altitude | ≤ 2000 m |
Operating voltage (AC) | ≤ 30 V AC | Operating voltage (DC) | ≤ 60 V DC |
Nominal operating mode | 100% operating factor | Current (Per path, 50°C) | ≤ 1 A (Uncoiled, see derating) |
Current (Per path, 70°C) | ≤ 0.6 A (Uncoiled, see derating) | Suitable I/O card | VE4001S5T2B5 |
Cable length | variable | Number of positions | 16 |
Shielded | no | Cable type | 16X0.14 [PVC] |
Conductor type | Round cable set | Conductor structure signal line | 7x 0.16 mm |
AWG signal line | 26 | Conductor cross section | 16x 0.14 mm² |
Wire diameter incl. insulation | 1 mm ±0.03 mm | External cable diameter | 6.80 mm ±0.4 mm |
Outer sheath, material | Semi-rigid PVC | External sheath, color | gray |
Conductor material | Tin-plated Cu litz wires | Cable resistance | ≤ 145 Ω/km (20 °C) |
Insulation resistance | ≥ 20 MΩ*km (20 °C) | Smallest bending radius, fixed installation | 58 mm |
Smallest bending radius, movable installation | 108 mm | Dynamic load capacity (bending) | Max. bending cycles: 5000 (at a radius of ≥ 15x outside diameter) |
Halogen-free | no | Flame resistance | IEC 60332-1-2 (raw cable)
VDE 0842, Part 332-1-2 (raw cable)
IEC 60332-3-22 (raw cable)
UL VW-1
CSA FT-1 |
Resistance to oil | can withstand occasional splashes (raw cable) | Connection in acc. with standard | IEC 60603-13 (in compliance) |
Connection method | IDC/FLK socket strip | Number of connections | 1 |
Number of positions | 20 | Insertion/withdrawal cycles | > 50 |
Pitch | 2.54 mm | Connection in acc. with standard | IEC 60603-13 (in compliance) |
Connection method | IDC/FLK socket strip | Number of connections | 1 |
Number of positions | 14 | Insertion/withdrawal cycles | > 50 |
Pitch | 2.54 mm | Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
