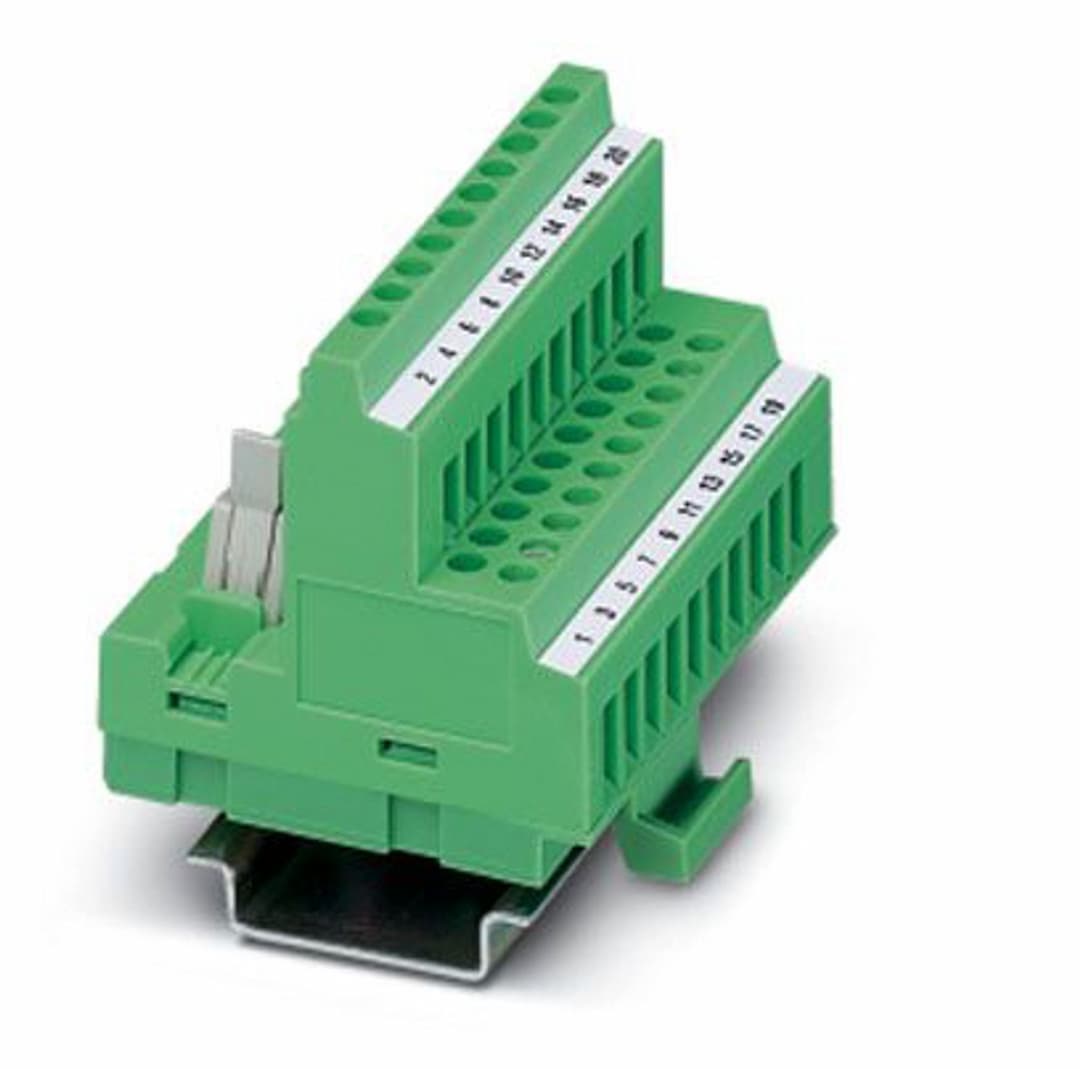

Product Model
FLK 20
Selling Points
- 1High Reliability: Designed for 20 positions with overvoltage category II and pollution degree 2.
- 2Versatile Connectivity: Suitable for various applications including industrial and commercial use.
- 3Durable Construction: Built to withstand harsh environments with high insertion/withdrawal cycles.
- 4Easy Installation: Features IDC/FLK socket strip for simple and efficient connections.
- 5Comprehensive Insulation: Ensures safe operation with insulation characteristics meeting industry standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Interface module | Number of positions | 20 |
Overvoltage category | II | Pollution degree | 2 |
Nominal voltage U | < 50 V AC
60 V DC | Max. current carrying capacity per branch | 1 A |
Connection in acc. with standard | IEC / EN | Connection method | Screw connection |
Stripping length | 8 mm | Screw thread | M3 |
Conductor cross section rigid | 0.2 mm² ... 4 mm² | Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
Conductor cross section AWG | 24 ... 12 | Connection method | IDC/FLK pin strip |
Number of positions | 20 | Pitch | 2.54 mm |
Status display | no | Status display present | No |
Width | 60 mm | Height | 50 mm |
Depth | 58.5 mm | Color | green (RAL 6021) |
Housing insulation material | Polyamide 6 green | Ambient temperature (operation) | -20 °C ... 50 °C |
Ambient temperature (storage/transport) | -20 °C ... 70 °C | Standards/regulations | IEC 60664
DIN EN 50178 |
Mounting type | DIN rail mounting | Mounting position | any |
Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
