Product Model
FLK 40/4X14/EZ-DR/ 50/IB32
Selling Points
- 1Designed for reliable and efficient system connectivity.
- 2Specifically engineered for use with Allen-Bradley SLC 500 controllers.
- 3Operates within a wide ambient temperature range (-20°C to 50°C).
- 4Features IDC/FLK socket strips with 40 and 14 positions for easy connection.
- 5Made with tin-plated Cu litz wires and semi-rigid PVC sheath for durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | System cable | Insulation | Functional insulation |
Overvoltage category | II | Pollution degree | 2 |
Degree of protection | IP00 | Degree of protection (Installation location) | ≥ IP54 (Installation location) |
Ambient temperature (operation) | -40 °C ... 70 °C (fixed installation)
-10 °C ... 70 °C (flexible installation) | Ambient temperature (storage/transport) | -40 °C ... 80 °C |
Altitude | ≤ 2000 m | Operating voltage (AC) | ≤ 25 V AC |
Operating voltage (DC) | ≤ 60 V DC | Nominal operating mode | 100% operating factor |
Current (Per path, 50°C) | ≤ 1 A | Current (Per path, 70°C) | ≤ 0.6 A |
Rated insulation voltage | 63 V | Rated surge voltage | 0.6 kV |
Suitable I/O card | 1746 IB 32
1746 IV 32 | Cable length | 0.5 m |
UL AWM Style | 2464/1061 | Number of positions | 10 |
Shielded | no | Cable type | 10X0.14 [PVC] |
Conductor type | Round cable set | Conductor structure signal line | 7x 0.16 mm |
AWG signal line | 26 | Conductor cross section | 10x 0.14 mm² |
Wire diameter incl. insulation | 1 mm ±0.03 mm | External cable diameter | 6.10 mm ±0.4 mm |
Outer sheath, material | Semi-rigid PVC | External sheath, color | gray |
Conductor material | Tin-plated Cu litz wires | Cable resistance | ≤ 145 Ω/km (20 °C) |
Insulation resistance | ≥ 20 MΩ*km (20 °C) | Smallest bending radius, fixed installation | 52 mm |
Smallest bending radius, movable installation | 98 mm | Dynamic load capacity (bending) | Max. bending cycles: 5000 |
Halogen-free | no | Flame resistance | IEC 60332-1-2 (raw cable)
VDE 0842, Part 332-1-2 (raw cable)
IEC 60332-3-22 (raw cable)
UL VW-1
CSA FT-1 |

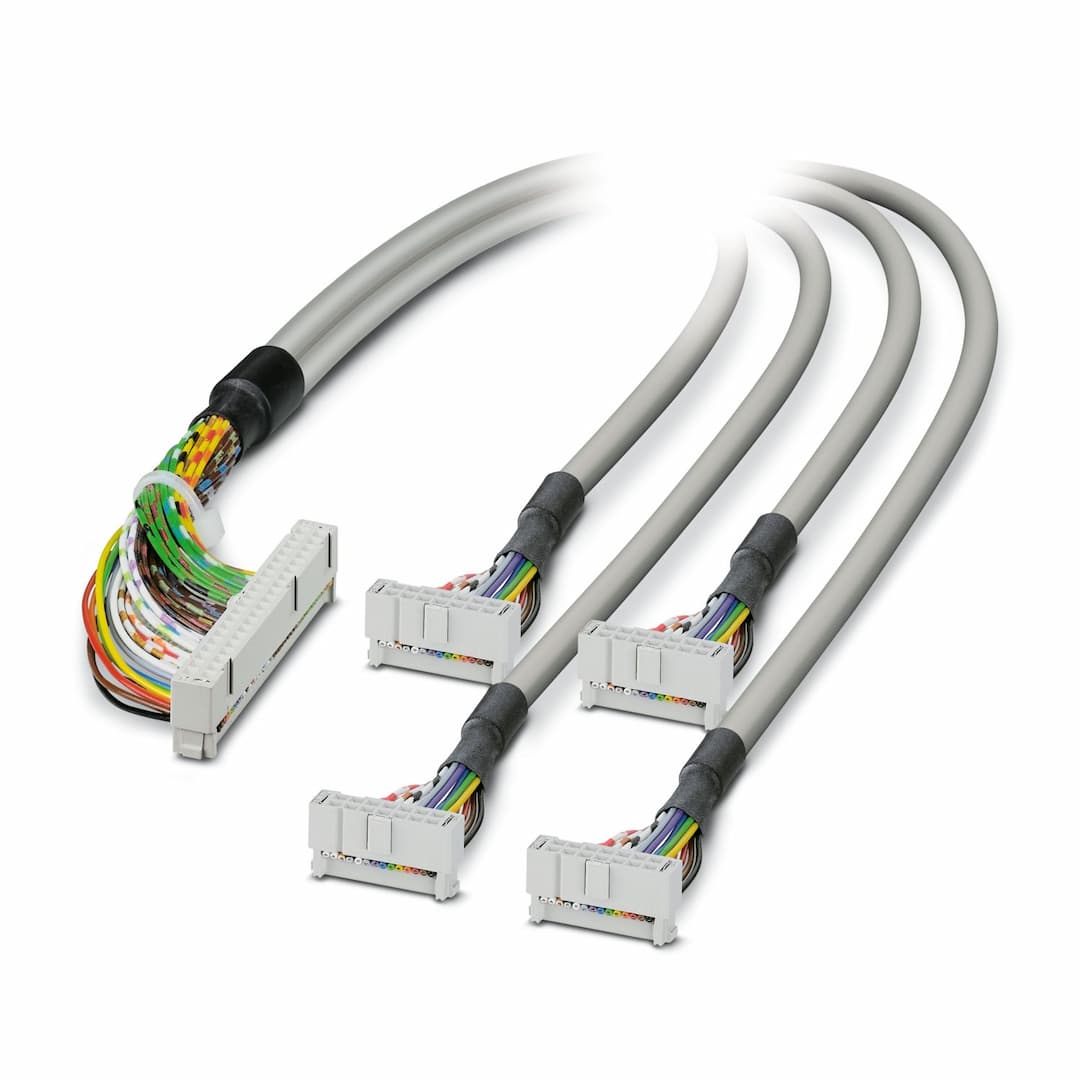

Resistance to oil | can withstand occasional splashes (raw cable) | Cable type | Splitting cable for four modules |
black | IDC/FLK40 (5) = IDC/FLK14-1 (1) | brown | IDC/FLK40 (7) = IDC/FLK14-1 (2) |
red | IDC/FLK40 (9) = IDC/FLK14-1 (3) | orange | IDC/FLK40 (11) = IDC/FLK14-1 (4) |
yellow | IDC/FLK40 (13) = IDC/FLK14-1 (5) | green | IDC/FLK40 (15) = IDC/FLK14-1 (6) |
blue | IDC/FLK40 (17) = IDC/FLK14-1 (7) | violet | IDC/FLK40 (19) = IDC/FLK14-1 (8) |
gray | IDC/FLK40 (1) = IDC/FLK14-1 (10) | white | IDC/FLK40 (3) = IDC/FLK14-1 (12) |
black | IDC/FLK40 (21) = IDC/FLK14-2 (1) | brown | IDC/FLK40 (23) = IDC/FLK14-2 (2) |
red | IDC/FLK40 (25) = IDC/FLK14-2 (3) | orange | IDC/FLK40 (27) = IDC/FLK14-2 (4) |
yellow | IDC/FLK40 (29) = IDC/FLK14-2 (5) | green | IDC/FLK40 (31) = IDC/FLK14-2 (6) |
blue | IDC/FLK40 (33) = IDC/FLK14-2 (7) | violet | IDC/FLK40 (35) = IDC/FLK14-2 (8) |
gray | IDC/FLK40 (37) = IDC/FLK14-2 (10) | white | IDC/FLK40 (39) = IDC/FLK14-2 (12) |
black | IDC/FLK40 (6) = IDC/FLK14-3 (1) | brown | IDC/FLK40 (8) = IDC/FLK14-3 (2) |
red | IDC/FLK40 (10) = IDC/FLK14-3 (3) | orange | IDC/FLK40 (12) = IDC/FLK14-3 (4) |
yellow | IDC/FLK40 (14) = IDC/FLK14-3 (5) | green | IDC/FLK40 (16) = IDC/FLK14-3 (6) |
blue | IDC/FLK40 (18) = IDC/FLK14-3 (7) | violet | IDC/FLK40 (20) = IDC/FLK14-3 (8) |
gray | IDC/FLK40 (2) = IDC/FLK14-3 (10) | white | IDC/FLK40 (4) = IDC/FLK14-3 (12) |
black | IDC/FLK40 (22) = IDC/FLK14-4 (1) | brown | IDC/FLK40 (24) = IDC/FLK14-4 (2) |
red | IDC/FLK40 (26) = IDC/FLK14-4 (3) | orange | IDC/FLK40 (28) = IDC/FLK14-4 (4) |
yellow | IDC/FLK40 (30) = IDC/FLK14-4 (5) | green | IDC/FLK40 (32) = IDC/FLK14-4 (6) |
blue | IDC/FLK40 (34) = IDC/FLK14-4 (7) | violet | IDC/FLK40 (36) = IDC/FLK14-4 (8) |
gray | IDC/FLK40 (38) = IDC/FLK14-4 (10) | white | IDC/FLK40 (40) = IDC/FLK14-4 (12) |
Connection in acc. with standard | IEC 60603-13 | Connection method | IDC/FLK socket strip |
Number of connections | 4 | Number of positions | 14 |
Insertion/withdrawal cycles | > 50 | Pitch | 2.54 mm |
Connection in acc. with standard | IEC 60603-13 | Connection method | IDC/FLK socket strip |
Number of connections | 1 | Number of positions | 40 |
Insertion/withdrawal cycles | > 50 | Pitch | 2.54 mm |
Standards/regulations | DIN EN 50178 | Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
