Product Model

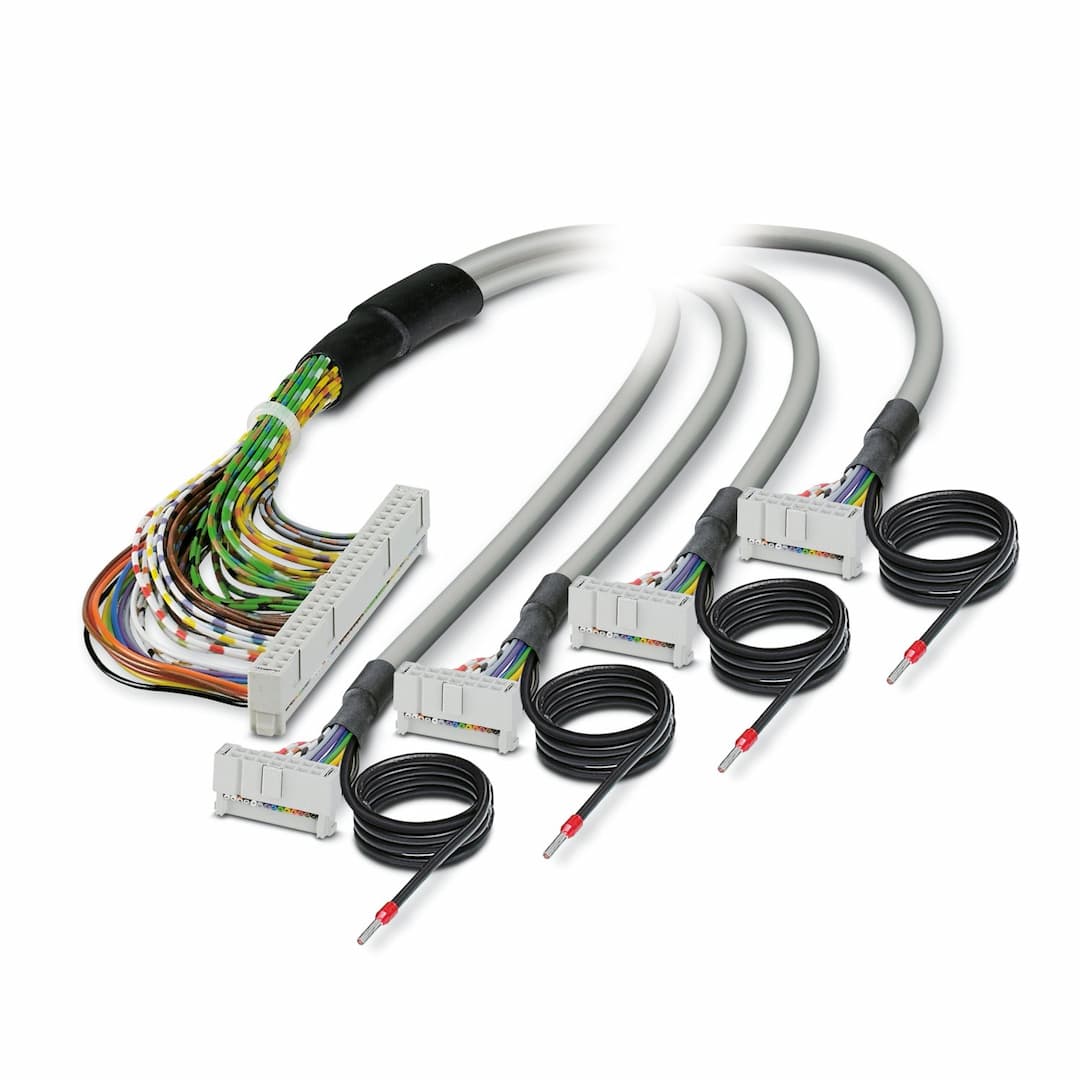

FLK 50-4X14/EZ-DR/200KONFEK/S
Selling Points
- 1High-Quality PVC Insulation: Durable and resistant to environmental factors.
- 2Assembled Shielded Conductors: Enhanced signal integrity and protection against interference.
- 314 Positions: Suitable for a variety of applications requiring multiple connections.
- 4Reliable Data Transmission: Designed for consistent and secure data transfer.
- 5Easy Installation: Simple and efficient setup process for quick deployment.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | System cable | Insulation | Functional insulation |
Overvoltage category | II | Pollution degree | 2 |
Degree of protection | IP00 | Degree of protection (Installation location) | ≥ IP54 (Installation location) |
Ambient temperature (operation) | -40 °C ... 70 °C (fixed installation)
-10 °C ... 70 °C (flexible installation) | Ambient temperature (storage/transport) | -40 °C ... 80 °C |
Altitude | ≤ 2000 m | Operating voltage | ≤ 25 V AC |
Operating voltage (DC) | ≤ 60 V DC | Nominal operating mode | 100% operating factor |
Current (Per path, 50°C) | ≤ 1 A | Current (Per path, 70°C) | ≤ 0.6 A |
Rated insulation voltage | 63 V | Rated surge voltage | 0.6 kV |
Suitable I/O card | 6ES7421-1BL01-0AA0
6ES7422-1BL00-0AA0
6ES7422-7BL00-0AB0 | Suitable I/O card | 1756-IB32
1756-OB32 |
Suitable I/O card | 1771 IBN
1771 OBN | Suitable I/O card | TC-IDD 321
TC-ODD 321 |
Suitable I/O card | DDI 353
DDI 853
DAI 353
DAI 453
DDO 353 | Suitable I/O card | CPU 313C-2DP
CPU 314C-2PtP
6ES7321-1BL00-0AA0
6ES7322-1BL00-0AA0
6ES7323-1BL00-0AA0
6ES7331-7NF00-0AB0
6ES7331-7PF01-0AB0
6ES7331-7PF11-0AB0
6ES7350-2AH01-0AE0
6ES7357-4AH01-0AE0
CPU 314C-2DP
CPU 313C
CPU 313C-2PtP |
Cable length | 2 m | Number of positions | 14 |
Shielded | yes | Cable type | 14X0.14 [PVC] |
Conductor type | Assembled shielded round cable | Conductor structure signal line | 7x 0.16 mm |
AWG signal line | 26 | Conductor cross section | 14x 0.14 mm² |
Wire diameter incl. insulation | 1 mm ±0.03 mm | External cable diameter | 6.70 mm ±0.4 mm |
Outer sheath, material | Semi-rigid PVC | External sheath, color | gray |
Conductor material | Tin-plated Cu litz wires | Cable resistance | ≤ 145 Ω/km (20 °C) |
Insulation resistance | ≥ 20 MΩ*km (20 °C) | Smallest bending radius, fixed installation | 71 mm |
Smallest bending radius, movable installation | 128 mm | Dynamic load capacity (bending) | Max. bending cycles: 5000 (at a radius of ≥ 15x outside diameter) |
Halogen-free | no | Flame resistance | IEC 60332-1-2 (raw cable)
VDE 0842, Part 332-1-2 (raw cable)
IEC 60332-3-22 (raw cable)
UL VW-1
CSA FT-1 |
Resistance to oil | can withstand occasional splashes (raw cable) | Cable type | Splitting cable for four modules |
gray | IDC/FLK50 (1) = IDC/FLK14-1 (9) | white-black | IDC/FLK50 (2) = IDC/FLK14-1 (11) |
black | IDC/FLK50 (3) = IDC/FLK14-1 (1) | brown | IDC/FLK50 (4) = IDC/FLK14-1 (2) |
red | IDC/FLK50 (5) = IDC/FLK14-1 (3) | orange | IDC/FLK50 (6) = IDC/FLK14-1 (4) |
yellow | IDC/FLK50 (7) = IDC/FLK14-1 (5) | green | IDC/FLK50 (8) = IDC/FLK14-1 (6) |
blue | IDC/FLK50 (9) = IDC/FLK14-1 (7) | violet | IDC/FLK50 (10) = IDC/FLK14-1 (8) |
white | IDC/FLK50 (11) = IDC/FLK14-1 (10) | white-brown | IDC/FLK50 (12) = IDC/FLK14-1 (12) |
gray | IDC/FLK50 (13) = IDC/FLK14-2 (9) | white-black | IDC/FLK50 (14) = IDC/FLK14-2 (11) |
black | IDC/FLK50 (15) = IDC/FLK14-2 (1) | brown | IDC/FLK50 (16) = IDC/FLK14-2 (2) |
red | IDC/FLK50 (17) = IDC/FLK14-2 (3) | orange | IDC/FLK50 (18) = IDC/FLK14-2 (4) |
yellow | IDC/FLK50 (19) = IDC/FLK14-2 (5) | green | IDC/FLK50 (20) = IDC/FLK14-2 (6) |
blue | IDC/FLK50 (21) = IDC/FLK14-2 (7) | violet | IDC/FLK50 (22) = IDC/FLK14-2 (8) |
white | IDC/FLK50 (23) = IDC/FLK14-2 (10) | white-brown | IDC/FLK50 (24) = IDC/FLK14-2 (12) |
gray | IDC/FLK50 (25) = IDC/FLK14-3 (9) | white-black | IDC/FLK50 (26) = IDC/FLK14-3 (11) |
black | IDC/FLK50 (27) = IDC/FLK14-3 (1) | brown | IDC/FLK50 (28) = IDC/FLK14-3 (2) |
red | IDC/FLK50 (29) = IDC/FLK14-3 (3) | orange | IDC/FLK50 (30) = IDC/FLK14-3 (4) |
yellow | IDC/FLK50 (31) = IDC/FLK14-3 (5) | green | IDC/FLK50 (32) = IDC/FLK14-3 (6) |
blue | IDC/FLK50 (33) = IDC/FLK14-3 (7) | violet | IDC/FLK50 (34) = IDC/FLK14-3 (8) |
white | IDC/FLK50 (35) = IDC/FLK14-3 (10) | white-brown | IDC/FLK50 (36) = IDC/FLK14-3 (12) |
gray | IDC/FLK50 (37) = IDC/FLK14-4 (9) | white-black | IDC/FLK50 (38) = IDC/FLK14-4 (11) |
black | IDC/FLK50 (39) = IDC/FLK14-4 (1) | brown | IDC/FLK50 (40) = IDC/FLK14-4 (2) |
red | IDC/FLK50 (41) = IDC/FLK14-4 (3) | orange | IDC/FLK50 (42) = IDC/FLK14-4 (4) |
yellow | IDC/FLK50 (43) = IDC/FLK14-4 (5) | green | IDC/FLK50 (44) = IDC/FLK14-4 (6) |
blue | IDC/FLK50 (45) = IDC/FLK14-4 (7) | violet | IDC/FLK50 (46) = IDC/FLK14-4 (8) |
white | IDC/FLK50 (47) = IDC/FLK14-4 (10) | white-brown | IDC/FLK50 (48) = IDC/FLK14-4 (12) |
Connection in acc. with standard | IEC 60603-13 | Connection method | IDC/FLK socket strip |
Number of connections | 4 | Number of positions | 14 |
Note | The braided shield is routed to four separate cable ends.
The separate cable end is approximately 0.5 m long (H05V-K 1 mm², black) | Insertion/withdrawal cycles | > 50 |
Pitch | 2.54 mm | Connection in acc. with standard | IEC 60603-13 |
Connection method | IDC/FLK socket strip | Number of connections | 1 |
Number of positions | 50 | Insertion/withdrawal cycles | > 50 |
Pitch | 2.54 mm | Standards/regulations | DIN EN 50178 |
Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
