Product Model
FLK 50/EZ-DR/ 200/OE/KONFEK
Selling Points

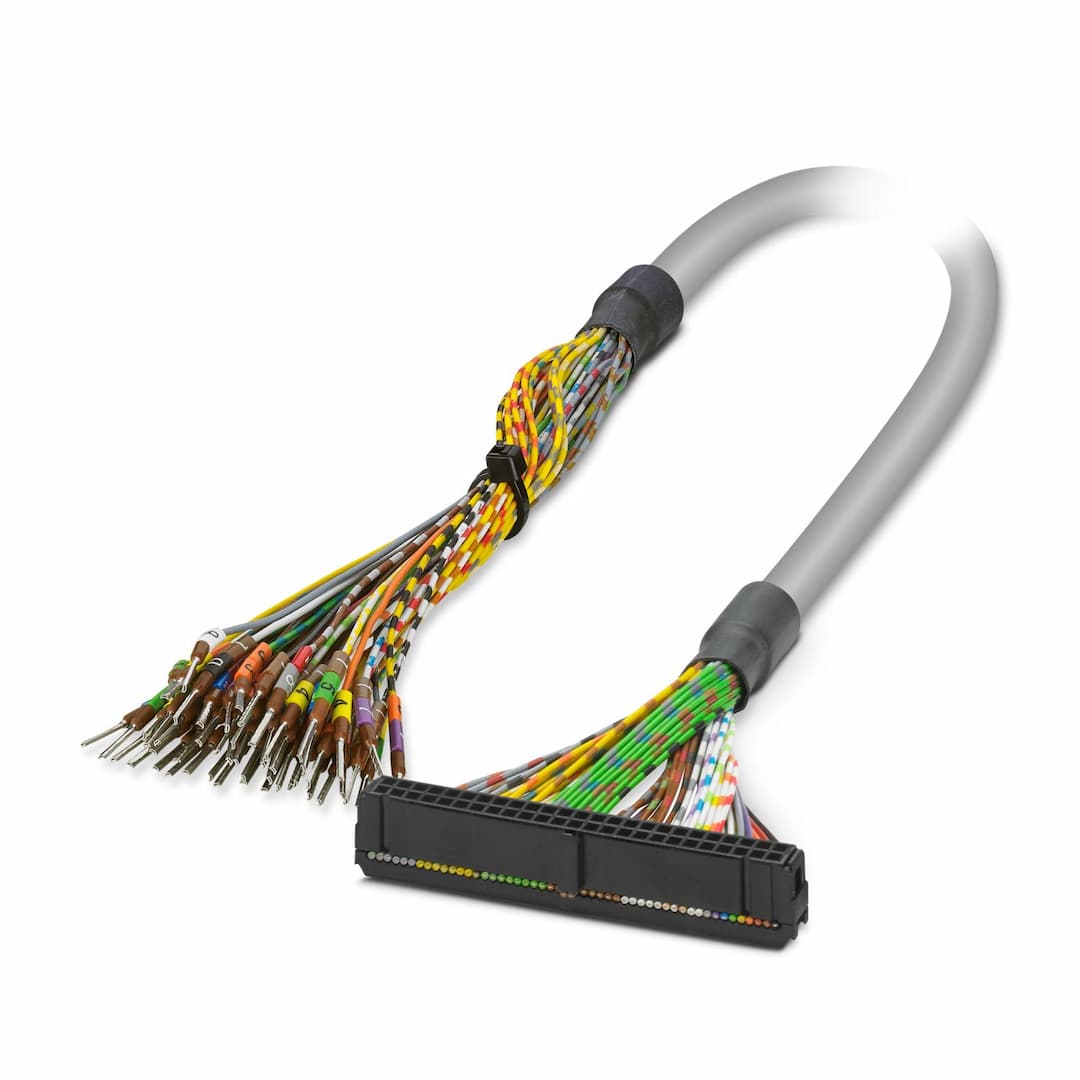

- 1Assembled round cable with a 50-position socket strip.
- 2Cable length: 2 meters, suitable for various industrial connections.
- 3High-quality insulation and durable construction.
- 4Compatible with multiple controller systems, including SIEMENS S7-1500.
- 5Environmentally friendly, compliant with China RoHS standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | System cable | Article revision | 04 |
Degree of protection | IP00 | Degree of protection (Installation location) | ≥ IP54 (Installation location) |
Ambient temperature (operation) | -40 °C ... 70 °C (fixed installation)
-10 °C ... 70 °C (flexible installation) | Ambient temperature (storage/transport) | -40 °C ... 80 °C |
Altitude | ≤ 2000 m | Operating voltage (AC) | ≤ 30 V AC |
Operating voltage (DC) | ≤ 60 V DC | Nominal operating mode | 100% operating factor |
Current (Per path, 50°C) | ≤ 1 A (Uncoiled, see derating) | Current (Per path, 70°C) | ≤ 0.6 A (Uncoiled, see derating) |
Cable length | 2 m | UL AWM Style | 2464/1061 |
Number of positions | 50 | Shielded | no |
Cable type | 50X0.14 [PVC] | Conductor type | Round cable set |
Conductor structure signal line | 7x 0.16 mm | AWG signal line | 26 |
Conductor cross section | 50x 0.14 mm² | Wire diameter incl. insulation | 1 mm ±0.03 mm |
External cable diameter | 10.30 mm ±0.4 mm | Outer sheath, material | Semi-rigid PVC |
External sheath, color | gray | Conductor material | Tin-plated Cu litz wires |
Cable resistance | ≤ 145 Ω/km (20 °C) | Insulation resistance | ≥ 20 MΩ*km (20 °C) |
Smallest bending radius, fixed installation | 86 mm | Smallest bending radius, movable installation | 161 mm |
Dynamic load capacity (bending) | Max. bending cycles: 5000 (at a radius of ≥ 15x outside diameter) | Halogen-free | no |
Flame resistance | IEC 60332-1-2 (raw cable)
VDE 0842, Part 332-1-2 (raw cable)
IEC 60332-3-22 (raw cable)
UL VW-1
CSA FT-1 | Resistance to oil | can withstand occasional splashes (raw cable) |
Cable type | Cable for one module | Connection method | Single wires |
Stripping length (Sheath) | 150 mm | Number of positions | 50 |
Note | The wires are marked and fitted with ferrules | Connection in acc. with standard | IEC 60603-13 (in compliance) |
Connection method | IDC/FLK socket strip | Number of connections | 1 |
Number of positions | 50 | Insertion/withdrawal cycles | > 50 |
Pitch | 2.54 mm | Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
