Product Model

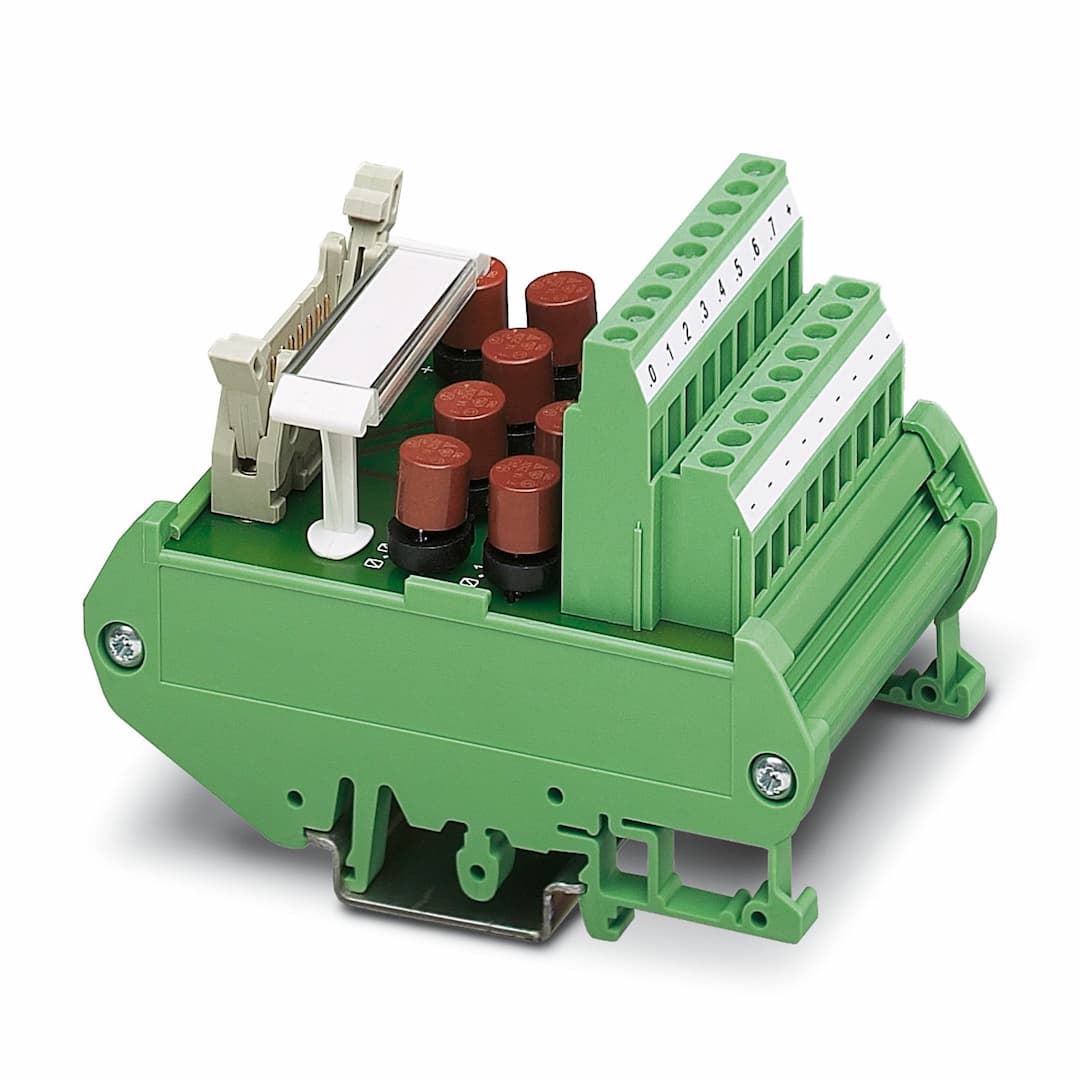

FLKM 14/8M/SI/PLC-125MA
Selling Points
- 1Versatile Connectivity: Supports 8 channels with additional terminal blocks and fuses per signal.
- 2Enhanced Insulation: Meets overvoltage category II and pollution degree 2 standards.
- 3Compact Design: Ideal for space-constrained applications with dimensions of 45 mm x 126.93 mm x 75 mm.
- 4Reliable Performance: Operates within a temperature range of -25°C to 60°C, ensuring stable performance in various environments.
- 5Compliance Standards: Meets REACh SVHC and China RoHS regulations, ensuring environmental safety and compliance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Interface module | Number of positions | 14 |
No. of channels | 8 | Overvoltage category | II |
Pollution degree | 2 | Nominal voltage U | 60 V DC |
Max. current carrying capacity per branch | 125 mA | Max. total current of voltage supply | 2 A |
Suitable I/O card | DO810
DO840 | Suitable I/O card | 1756-IB32
1756-OB32
1756-IN16
1756-IB16
1756-IC16
1756-OB16E |
Suitable I/O card | 1771 IBN
1771 OBN | Suitable I/O card | 1746 OB16
1746 OV16
1746 OG16
1746 IA16
1746 ITB16
1746 IN16
1746 IV16
1746 ITV16
1746 IG16
1746 OB 32
1746 OV 32
1746 IB 32
1746 IV 32
1746 IB16 |
Suitable I/O card | IC693 MDL241
IC693 MDL634
IC693 MDL645
IC693 MDL646
IC693 MDL732
IC693 MDL733
IC693 MDL740
IC693 MDL741
IC693 MDL742 | Suitable I/O card | IC694MDL754
IC694MDL660 |
Suitable I/O card | TC-IDD 321
TC-ODD 321 | Suitable I/O card | LX41C4
LX42C4
LY41NT1P
LY42NT1P
LY41PT1P
LY42PT1P |
Suitable I/O card | QX81
QY81P
QX41
QX41-S1
QX42
QX42-S1
QX71
QX72
QY41P
QY42P
QY71
QH42P
QX82
QX82-S1
QY82P | Suitable I/O card | CPU 313C-2DP
CPU 314C-2DP
CPU 314C-2PtP
6ES7321-1BH02-0AA0
6ES7321-1BL00-0AA0
6ES7322-1BH01-0AA0
6ES7322-1BL00-0AA0
6ES7323-1BH01-0AA0
6ES7323-1BL00-0AA0
6ES7321-1BH10-0AA0
6ES7322-1BH10-0AA0
CPU 313C
CPU 313C-2PtP |
Suitable I/O card | DDI 353
DDI 853
DAI 353
DAI 453
DDO 353 | Connection in acc. with standard | IEC / EN |
Connection method | Screw connection | Stripping length | 8 mm |
Screw thread | M3 | Conductor cross section rigid | 0.2 mm² ... 4 mm² |
Conductor cross section flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 12 |
Connection method | IDC/FLK pin strip | Pitch | 2.54 mm |
Status display | no | Status display present | No |
Width | 57 mm | Height | 90 mm |
Depth | 68 mm | Color | green (RAL 6021) |
Housing insulation material | PVC | Ambient temperature (operation) | -20 °C ... 50 °C |
Ambient temperature (storage/transport) | -20 °C ... 70 °C | Standards/regulations | IEC 60664
DIN EN 50178 |
Mounting position | any | Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
CE note | The products are offered exclusively for export outside the EU and the European Economic Area. |
Specifications may be subject to change without notice
