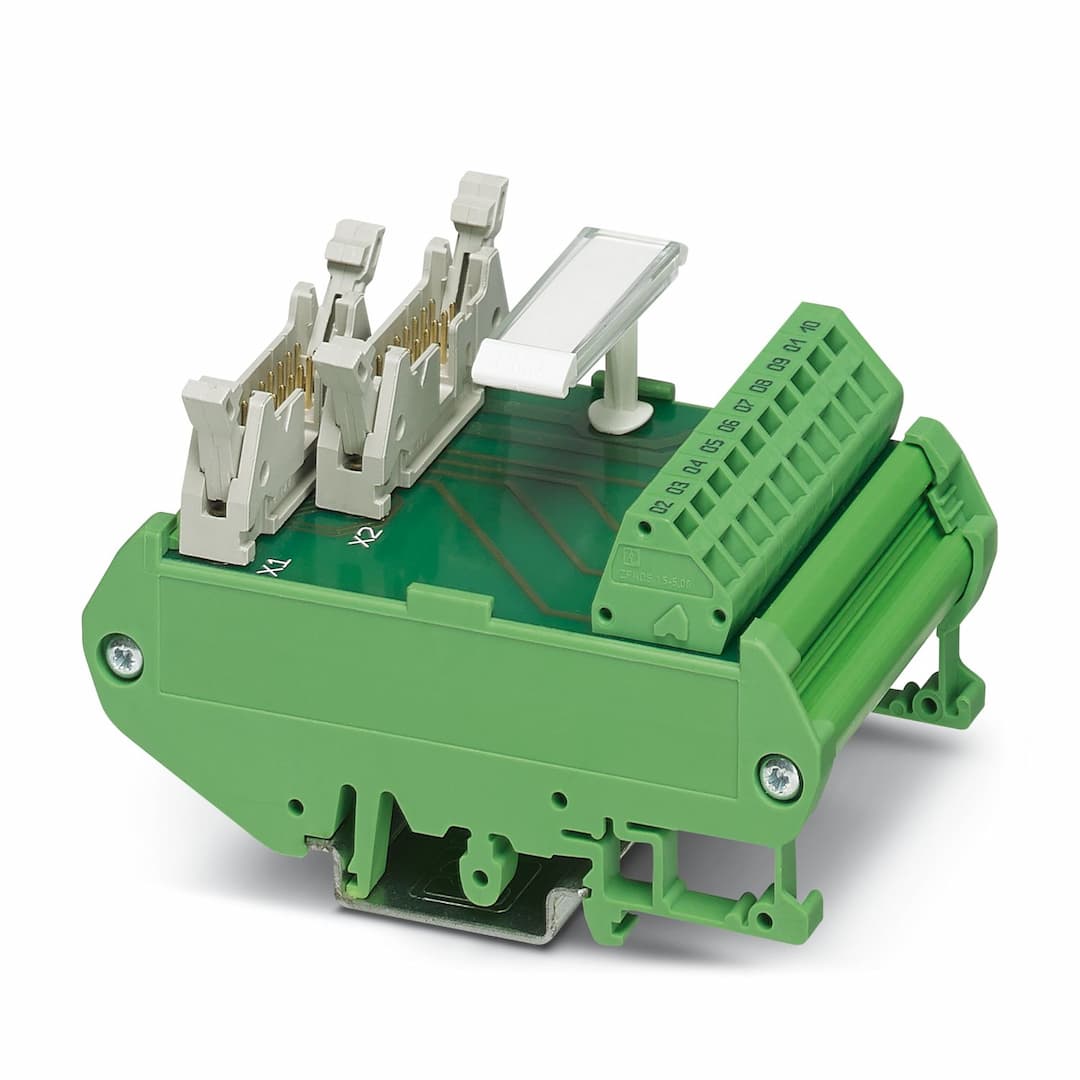

Product Model
FLKM14/FLK14/ZFKDS/DI8/SO199
Selling Points
- 1The FLKM14/FLK14/ZFKDS/DI8/SO199 interface module offers 8 channels, ensuring versatile connectivity options for various industrial applications.
- 2Equipped with functional insulation, this module ensures reliable data transmission while maintaining safety standards.
- 3Designed to handle high overvoltage conditions, this module provides robust performance in demanding industrial environments.
- 4The module features optimized air clearances and creepage distances for enhanced electrical insulation and reliability.
- 5Built with durable materials, the FLKM14/FLK14/ZFKDS/DI8/SO199 interface module is designed for long-lasting performance in harsh industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Interface module | Product family | VARIOFACE |
No. of channels | 8 | Article revision | 07 |
Insulation | Functional insulation | Overvoltage category | II |
Pollution degree | 2 | Operating voltage (AC) | ≤ 30 V AC |
Operating voltage (DC) | ≤ 50 V DC | Current (per branch) | ≤ 1 A |
Current (Terminal block 01, 10) | ≤ 3 A | Rated insulation voltage | 50 V |
Rated surge voltage | 0.5 kV (1.2/50 μs) | Connection in acc. with standard | IEC 60603-13 |
Connection method | IDC/FLK pin strip | Number of connections | 2 |
Number of positions | 14 | Insertion/withdrawal cycles | > 50 |
Pitch | 2.54 mm | Connection method | Spring-cage connection |
Stripping length | 7.5 mm | Number of positions | 10 |
Conductor cross section rigid | 0.2 mm² ... 2.5 mm² | Conductor cross section flexible | 0.2 mm² ... 1.5 mm²
0.25 mm² ... 1.5 mm² (Ferrule without plastic sleeve)
0.25 mm² ... 1.5 mm² (Ferrule with plastic sleeve) |
Conductor cross section AWG | 24 ... 14 | Pitch | 5.08 mm |
Status display present | No | Width | 55.8 mm |
Height | 89.6 mm | Depth | 60.9 mm |
Color | green (RAL 6021) | Housing insulation material | PVC |
Degree of protection (Module) | IP00 | Degree of protection (Installation location) | ≥ IP54 |
Ambient temperature (operation) | -20 °C ... 50 °C | Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Altitude | ≤ 2000 m | Standards/regulations | EN IEC 60664-1 |
Mounting type | DIN rail mounting | Mounting position | any |
Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
