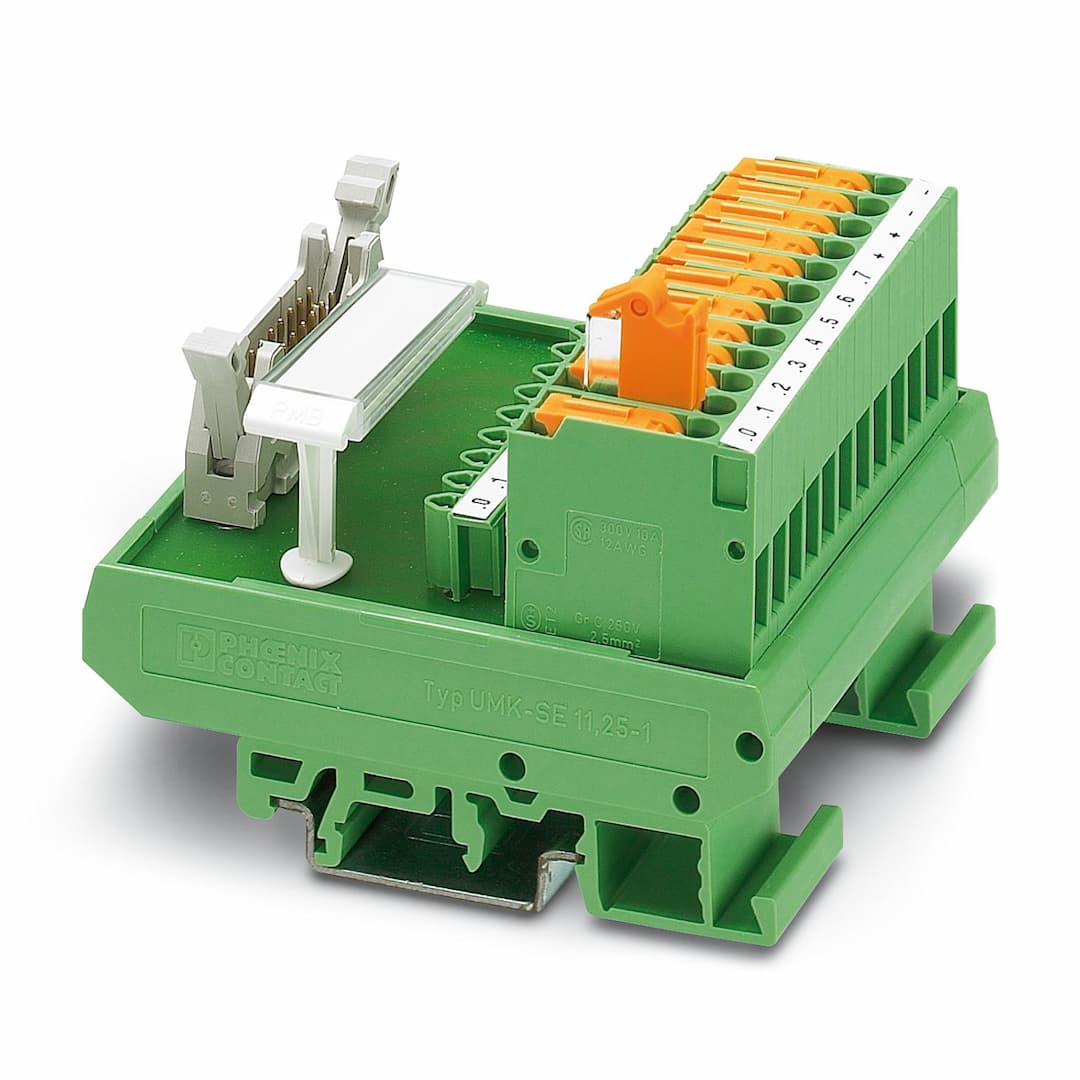

FLKM 14/KDS3-MT/PPA/PLC Passive Module

Selling Points

114-Position Interface Module: Supports up to 14 positions for versatile connectivity.
28-Channel Capability: Designed for 8 channels with knife disconnect terminal blocks and test sockets.
3Durable Construction: Made with high-quality materials, ensuring reliability in harsh environments.
4Comprehensive Compatibility: Compatible with SIEMENS S7-1500, ABB S800 I/O, and other leading controllers.
5IP20 Protection: Offers degree of protection IP20, suitable for various industrial applications.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Product type	Interface module	Overvoltage category	II
Pollution degree	2	Nominal voltage U	48 V AC/DC
Max. current carrying capacity per branch	1 A	Max. total current of voltage supply	3 A
Rated insulation voltage	50 V	Rated surge voltage	0.5 kV
Connection method	Screw connection with disconnect knife	Number of positions	12
Conductor cross section rigid	0.2 mm² ... 4 mm²	Conductor cross section flexible	0.2 mm² ... 2.5 mm²
Conductor cross section AWG	24 ... 12	Connection method	Flat-ribbon cable connector in acc. with IEC 60603-13
Number of connections	1	Number of positions	14
Width	67 mm	Height	77 mm
Depth	62 mm	Color	green (RAL 6021)
Housing insulation material	PVC	Ambient temperature (operation)	-20 °C ... 50 °C
Standards/regulations	DIN EN 50178	Mounting position	any
Notes on operation	For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.

Specifications may be subject to change without notice
