Product Model

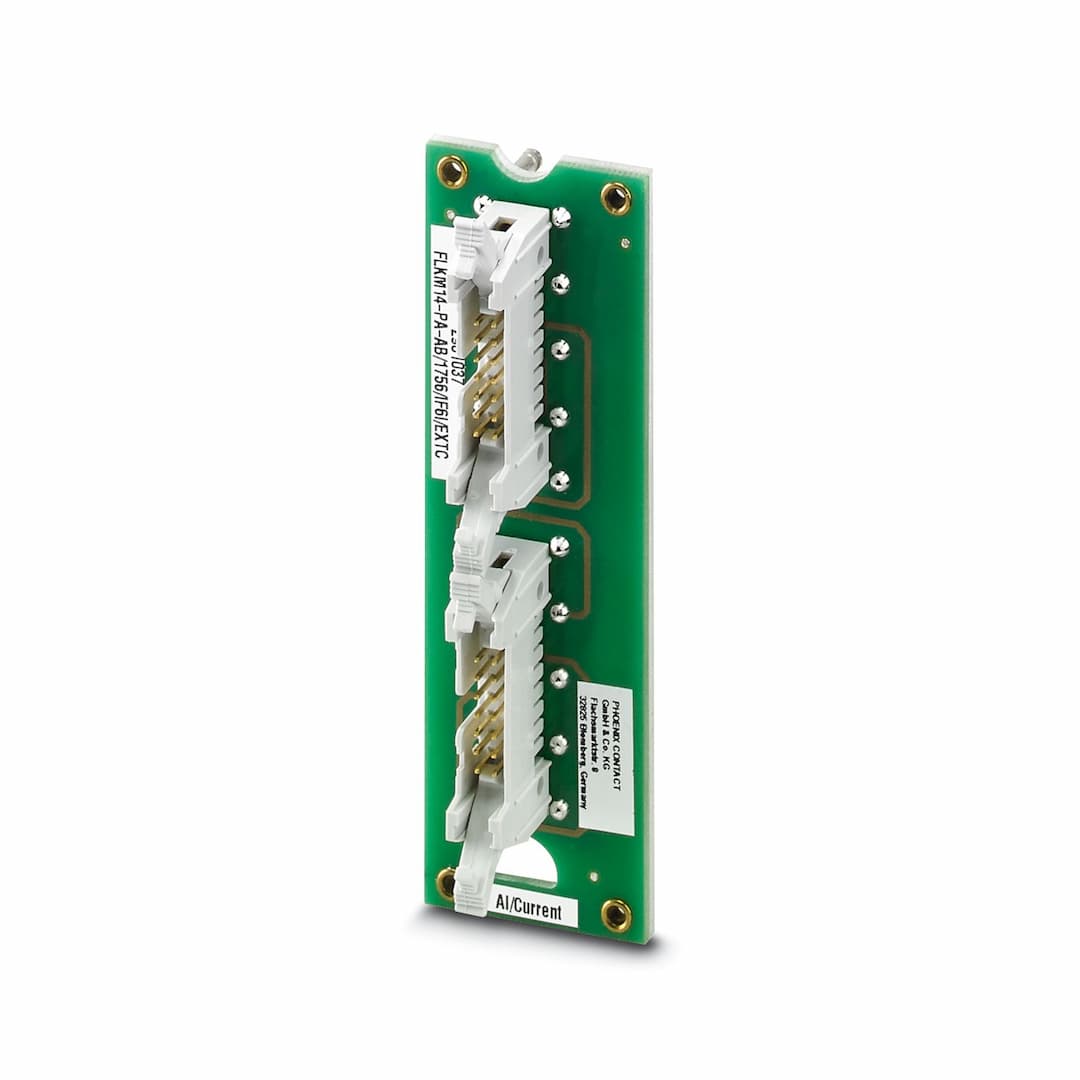

FLKM 14-PA-AB/1756/IF6I/EXTC
Selling Points
- 1High Connectivity: Supports up to 2 x 8 channels for maximum connectivity in industrial automation.
- 2Versatile Compatibility: Compatible with Allen Bradley ControlLogix and Honeywell PlantScape systems.
- 3Functional Insulation: Meets Overvoltage Category II and Pollution Degree 2 standards for reliable operation.
- 4Durable Design: Rated insulation voltage of 63 V and surge voltage of 0.6 kV for robust performance.
- 5Easy Installation: Plug-in mounting type with dimensions of 104.9 mm x 33 mm x 40.84 mm for straightforward integration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Front adapter | Insulation | Functional insulation |
Overvoltage category | II | Pollution degree | 2 |
Operating voltage (AC) | ≤ 25 V AC | Operating voltage (DC) | ≤ 60 V DC |
Nominal operating mode | 100% operating factor | Current (Per path) | ≤ 1 A |
Rated insulation voltage | 63 V | Rated surge voltage | 0.6 kV |
Connection method | IDC/FLK pin strip | Number of connections | 2 |
Number of positions | 14 | Pitch | 2.54 mm |
Connection method | Screw connection | Conductor cross section rigid | 0.14 mm² ... 1.5 mm² |
Conductor cross section flexible | 0.14 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
Degree of protection | IP00 | Degree of protection (Installation location) | ≥ IP54 (Installation location) |
Ambient temperature (operation) | -20 °C ... 50 °C | Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Altitude | ≤ 2000 m | Standards/regulations | DIN EN 50178 |
Assembly note | in rows with zero spacing | Mounting position | any |
Notes on operation | Do not connect adjacent channels to SELV/ PELV and voltages dangerous to the touch. | Notes on operation | No additional touch protection is required when using a SELV/PELV voltage (≤ 25 V AC or 60 V DC). |
Notes on operation | At least one functional insulation against adjacent modules is complied with (in the support rail direction). If the application has stricter requirements for the insulation (basic insulation or reinforced insulation), they must be realized by applying suitable measures (e. g. partition plates). | Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
