Product Model

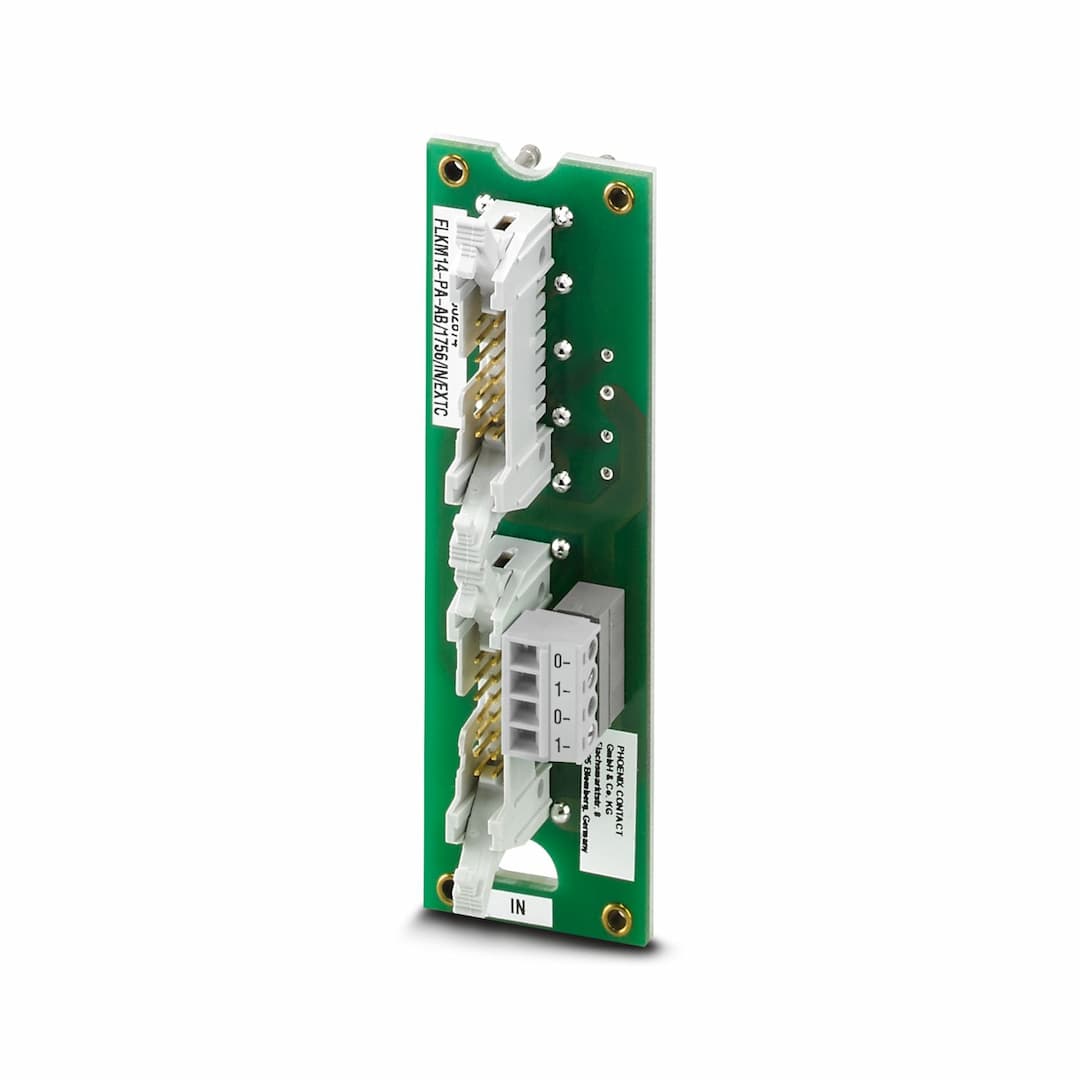

FLKM 14-PA-AB/1756/IN/EXTC
Selling Points
- 1Compatible with Allen-Bradley ControlLogix and Honeywell Experion systems.
- 2Functional insulation with overvoltage category II and pollution degree 2.
- 3Operating voltage up to 30V AC and 60V DC, with a rated insulation voltage of 63V.
- 4Supports up to 8A current via screw connection and 1A per branch.
- 5Durable design with IP54 protection and operating temperature range of -20°C to 50°C.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Front adapter | Article revision | 07 |
Insulation | Functional insulation | Overvoltage category | II |
Pollution degree | 2 | Operating voltage (AC) | ≤ 25 V AC |
Operating voltage (DC) | ≤ 60 V DC | Nominal operating mode | 100% operating factor |
Current (Per path) | ≤ 1 A | Rated insulation voltage | 63 V |
Rated surge voltage | 0.6 kV | Suitable I/O card | 1756-IN16
1756-IA16
1756-IB16
1756-IC16 |
Suitable I/O card | TC-IDA 161 | Connection method | IDC/FLK pin strip |
Number of connections | 2 | Number of positions | 14 |
Pitch | 2.54 mm | Connection method | Screw connection |
Conductor cross section rigid | 0.14 mm² ... 1.5 mm² | Conductor cross section flexible | 0.14 mm² ... 1.5 mm² |
Conductor cross section AWG | 28 ... 16 | Width | 104.9 mm |
Height | 33 mm | Depth | 40.84 mm |
Degree of protection | IP00 | Degree of protection (Installation location) | ≥ IP54 (Installation location) |
Ambient temperature (operation) | -20 °C ... 50 °C | Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Altitude | ≤ 2000 m | Standards/regulations | DIN EN 50178 |
Assembly note | in rows with zero spacing | Mounting position | any |
Notes on operation | Do not connect adjacent channels to SELV/ PELV and voltages dangerous to the touch. | Notes on operation | No additional touch protection is required when using a SELV/PELV voltage (≤ 25 V AC or 60 V DC). |
Notes on operation | At least one functional insulation against adjacent modules is complied with (in the support rail direction). If the application has stricter requirements for the insulation (basic insulation or reinforced insulation), they must be realized by applying suitable measures (e. g. partition plates). | Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
