Product Model

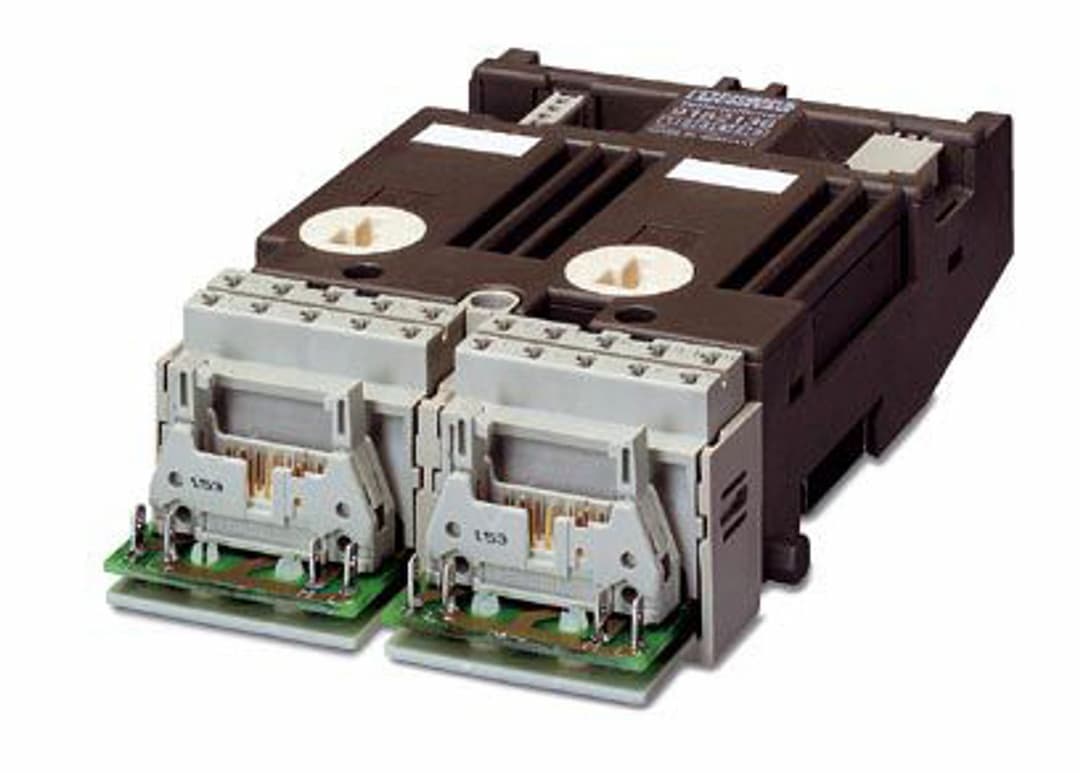

FLKM 14/PA/BUS/S100
Selling Points
- 1Industrial-grade reliability: Built for demanding industrial environments.
- 2Versatile connectivity: Supports 1-8 AMP, 50 VAC, 60 VDC.
- 3Easy integration: Compatible with various industrial systems.
- 4Fast shipping: Available for same-day shipping from trusted suppliers.
- 5Extended warranty: Backed by a 2-year warranty for peace of mind.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Front adapter | Overvoltage category | II |
Pollution degree | 2 | Max. permissible operating voltage | < 50 V AC
60 V DC |
Max. permissible current | 1 A (per path)
8 A (per connection, supply via separate power supply) | Connection method | IDC/FLK pin strip |
Number of connections | 1 | Number of positions | 14 |
Pitch | 2.54 mm | Ambient temperature (operation) | -20 °C ... 50 °C |
Ambient temperature (storage/transport) | -20 °C ... 70 °C | Standards/regulations | IEC 60664
IEC 60664A
DIN VDE 0110
DIN VDE 0160 (in parts) |
Mounting position | any | Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
