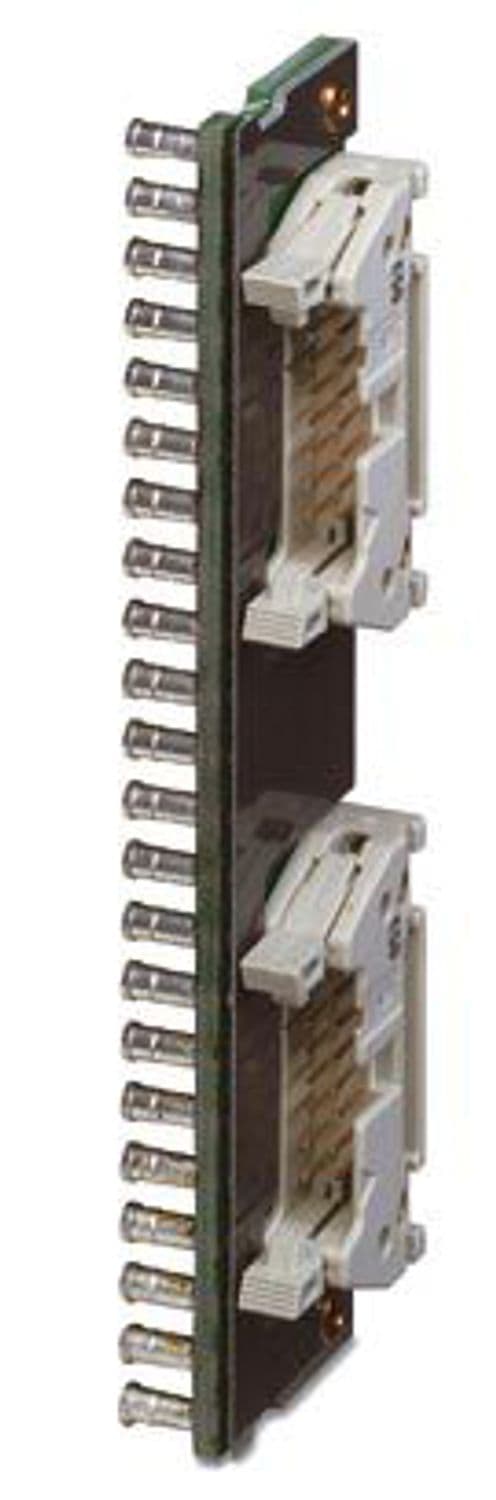

Product Model
FLKM 14-PA-MODI-A120
Selling Points
- 1Functional insulation ensures reliable operation in various environments.
- 2Supports multiple I/O cards including BMX DDI 1602, BMX DDI 1603, and more.
- 3Designed for high-performance applications with a nominal operating mode of 100% operating factor.
- 4Can be mounted in any position, offering flexibility in system setup.
- 5Compatible with Modicon M340 systems, ensuring seamless integration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Front adapter | Overvoltage category | II |
Pollution degree | 2 | Max. permissible operating voltage | < 50 V AC
60 V DC |
Max. permissible current | 1 A (per path) | Max. permissible total current | 3 A (per Byte, for supply via connector) |
Connection method | IDC/FLK pin strip | Number of connections | 2 |
Number of positions | 14 | Pitch | 2.54 mm |
Ambient temperature (operation) | -20 °C ... 50 °C | Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Standards/regulations | IEC 60664
IEC 60664A
DIN VDE 0110
DIN VDE 0160 (in parts) | Mounting position | any |
Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
