Product Model

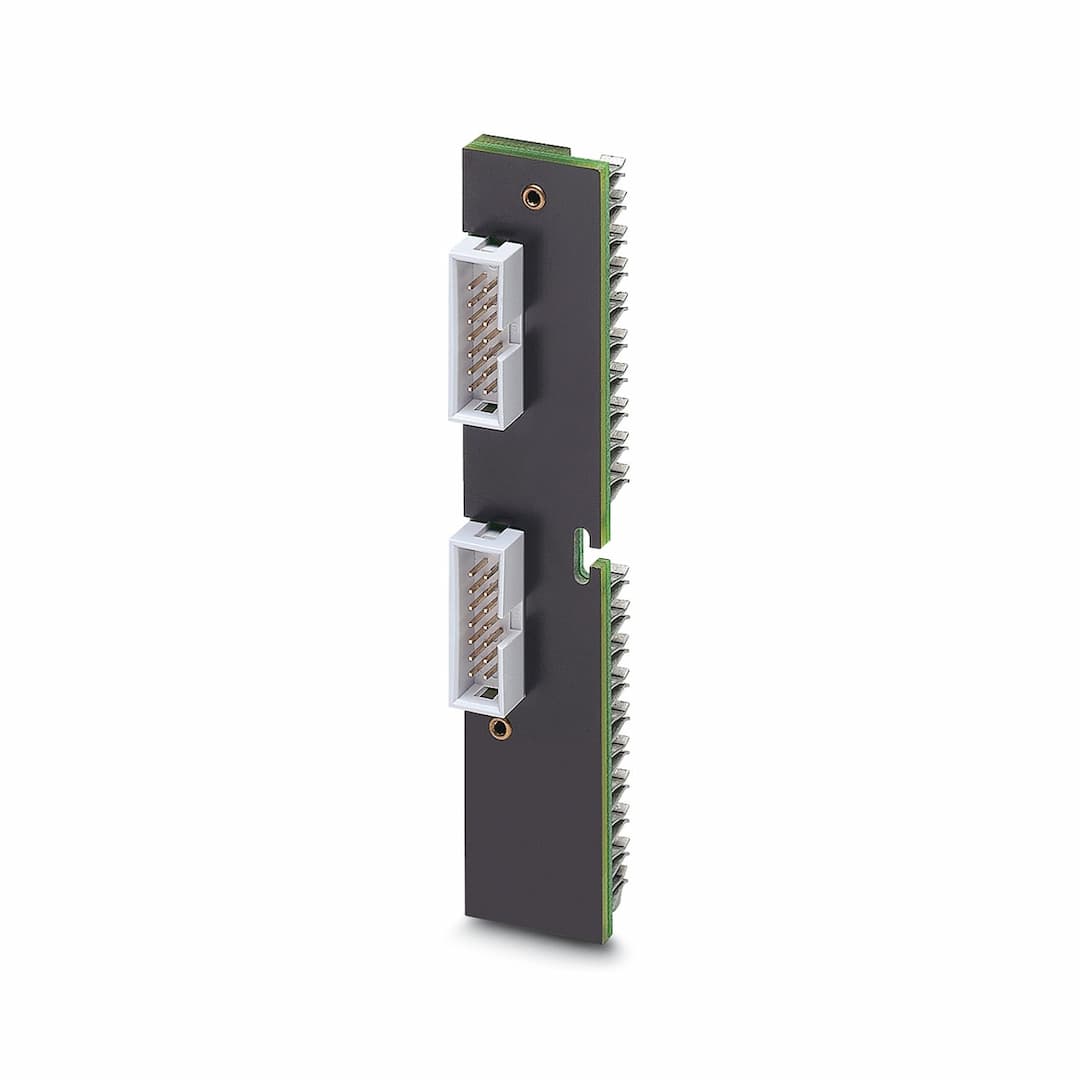

FLKM 14-PA-S300/AN
Selling Points
- 1Versatile Connectivity: Connects up to 2 x 8 channels for seamless integration with SIMATIC S7-300 analog I/O cards.
- 2High Reliability: Functional insulation and overvoltage category II ensure reliable operation in harsh industrial environments.
- 3Easy Installation: Plug-in mounting and IDC/FLK pin strip connections make installation quick and straightforward.
- 4Compliance and Safety: Meets IEC 60664 and DIN EN 50178 standards, ensuring compliance with industry regulations.
- 5Durable Design: Built to withstand ambient temperatures from -20°C to 50°C, with over 50 insertion/withdrawal cycles.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Front adapter | Product family | VARIOFACE |
Insulation | Functional insulation | Overvoltage category | II |
Pollution degree | 2 | Operating voltage (AC) | ≤ 30 V AC |
Operating voltage (DC) | ≤ 60 V DC | Nominal operating mode | 100% operating factor |
Current (per branch) | ≤ 1 A | Current (per byte) | ≤ 2 A |
Rated insulation voltage | 63 V | Rated surge voltage | 0.6 kV (1.2/50 μs) |
Suitable I/O card | 6ES7336-4GE00-0AB0 | Connection method | Plug-in connection |
Number of positions | 20 | Connection in acc. with standard | IEC 60603-13 |
Connection method | IDC/FLK pin strip | Number of connections | 2 |
Number of positions | 14 | Insertion/withdrawal cycles | > 50 |
Pitch | 2.54 mm | Degree of protection (Module) | IP00 |
Degree of protection (Installation location) | ≥ IP54 | Ambient temperature (operation) | -20 °C ... 50 °C |
Ambient temperature (storage/transport) | -20 °C ... 50 °C | Altitude | ≤ 2000 m |
Standards/regulations | EN IEC 60664-1 | Mounting type | Plug-in mounting |
Mounting position | any | Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Notes on operation | Do not connect adjacent channels to SELV/ PELV and voltages dangerous to the touch. |
Specifications may be subject to change without notice
