Product Model

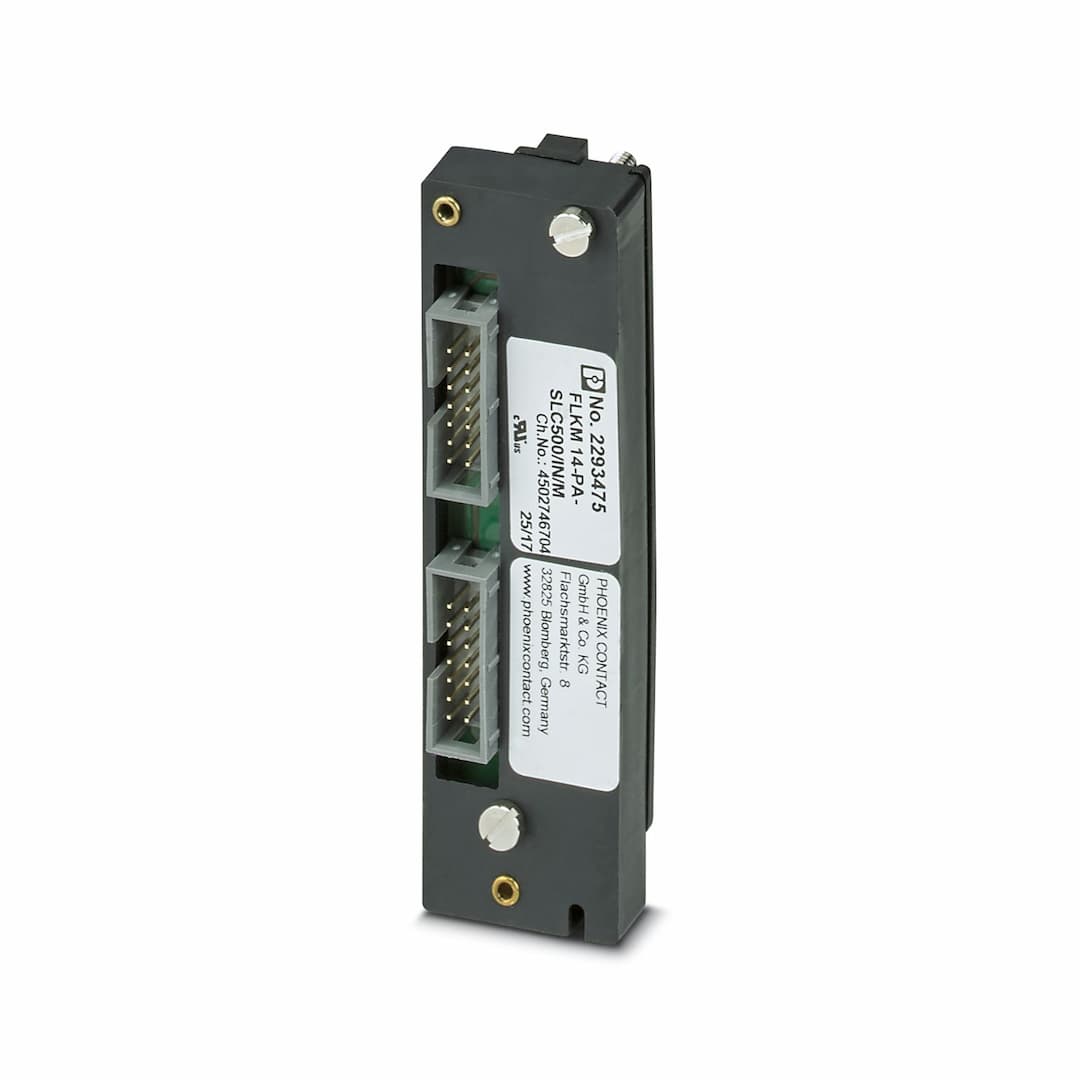

FLKM 14-PA-SLC500/IN/M
Selling Points
- 1Connects 2 x 8 channels for Allen-Bradley SLC 500, 1746 IV16, and ITV16.
- 2VARIOFACE design offers versatile connection options.
- 3Compliant with IEC 60664 and DIN EN 50178 standards.
- 4Operates within -20°C to 50°C ambient temperature range.
- 5High-quality, reliable performance for industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Front adapter | Insulation | Functional insulation |
Overvoltage category | II | Pollution degree | 2 |
Operating voltage (AC) | ≤ 25 V AC | Operating voltage (DC) | ≤ 60 V DC |
Current (Per path) | ≤ 1 A | Current (Total current per byte) | ≤ 2 A (Feed-in via connector) |
Rated insulation voltage | 63 V | Rated surge voltage | 0.6 kV |
Suitable I/O card | 1746 IV16
1746 ITV16 | Connection method | IDC/FLK pin strip |
Number of connections | 2 | Number of positions | 14 |
Pitch | 2.54 mm | Degree of protection | IP00 |
Ambient temperature (operation) | -20 °C ... 50 °C | Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Standards/regulations | IEC 60664
DIN EN 50178 | Mounting position | any |
Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
