Product Model

FLKM 14-PA-SLC500/OUT

In Stock
Last updated: 2025/4/17

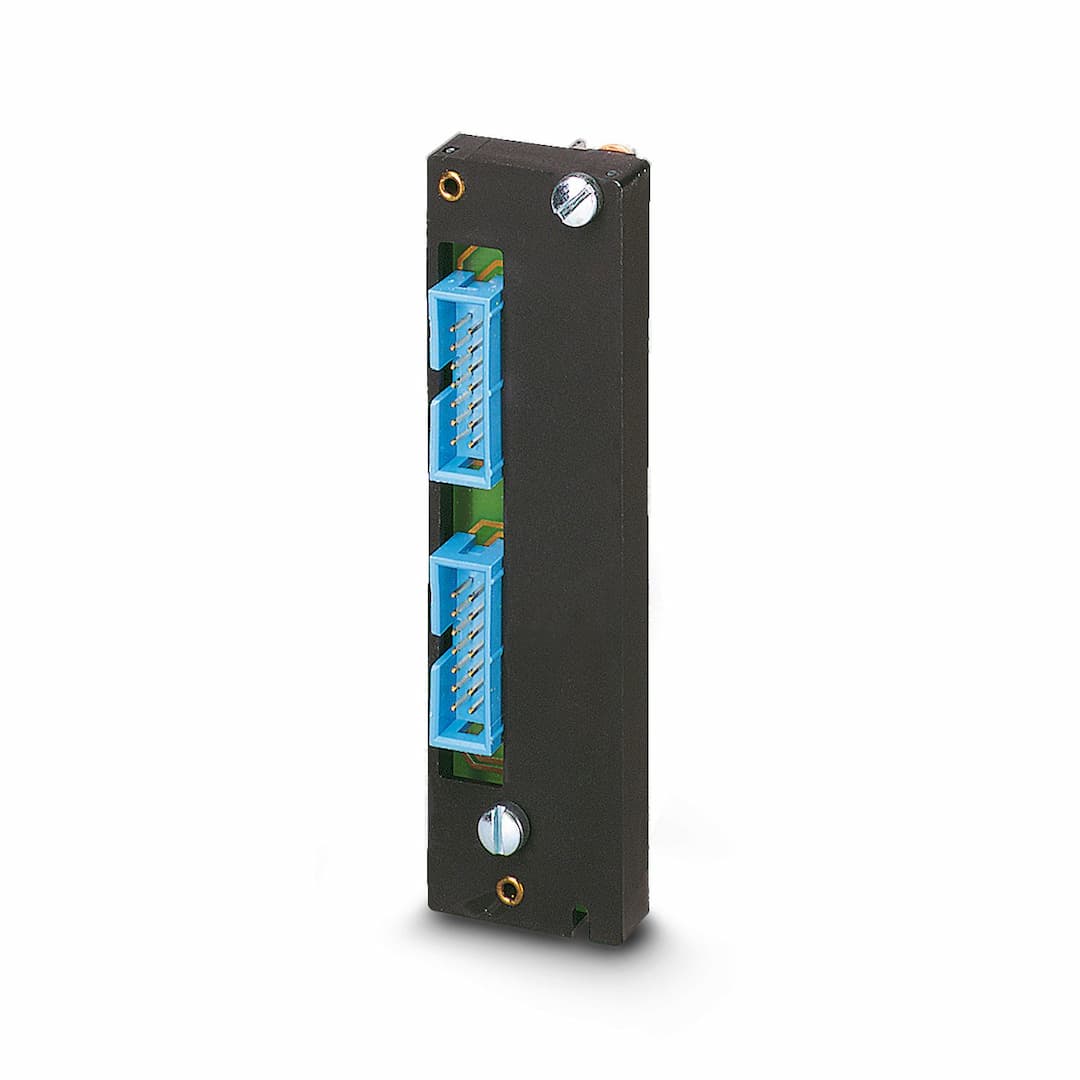

Phoenix Contact FLKM 14-PA-SLC500/OUT

Selling Points

  • 1Connects 2 x 8 channels for Allen-Bradley SLC 500 and other I/O cards.
  • 2VARIOFACE design offers versatile connection options.
  • 3WEEE/RoHS compliant ensuring environmental safety.
  • 4Operates within -20°C to 50°C ambient temperature range.
  • 5Supports up to 2 A total current per byte for reliable supply.
Product Details
FLKM 14-PA-SLC500/OUT
Phoenix Contact

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Product type
Front adapter
Insulation
Functional insulation
Overvoltage category
II
Pollution degree
2
Operating voltage (AC)
≤ 25 V AC
Operating voltage (DC)
≤ 60 V DC
Current (Per path)
≤ 1 A
Current (Total current per byte)
≤ 2 A (Feed-in via connector)
Rated insulation voltage
63 V
Rated surge voltage
0.6 kV
Suitable I/O card
1746 OB16 1746 OG16 1746 OV16 1746 IG16
Connection method
IDC/FLK pin strip
Number of connections
2
Number of positions
14
Pitch
2.54 mm
Degree of protection
IP00
Ambient temperature (operation)
-20 °C ... 50 °C
Ambient temperature (storage/transport)
-20 °C ... 70 °C
Standards/regulations
IEC 60664 DIN EN 50178
Mounting position
any
Notes on operation
For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.

Specifications may be subject to change without notice
