Product Model

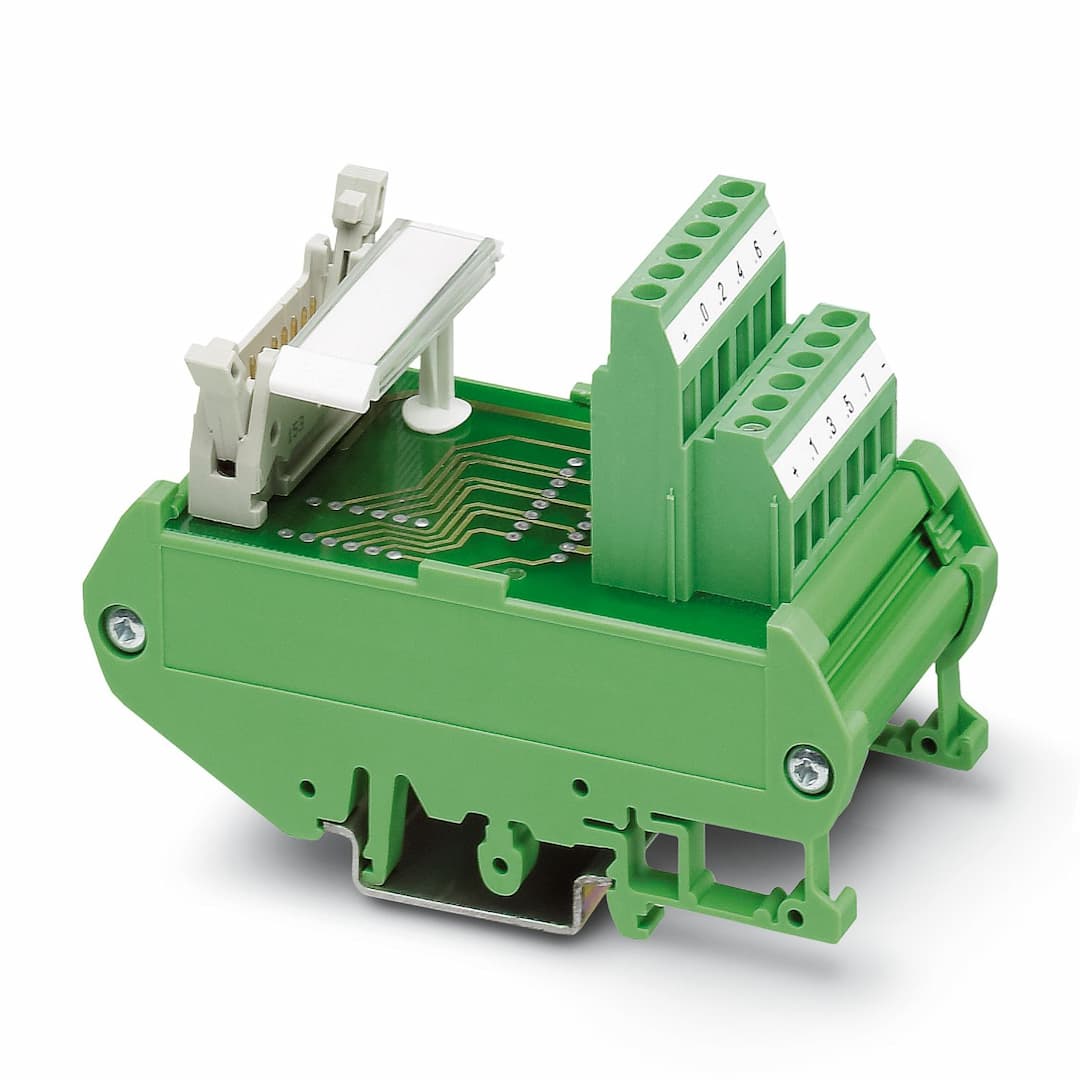

FLKM 14/PLC
Selling Points
- 18 Channels Interface Module: Supports up to 8 channels for versatile industrial automation.
- 2DIN Rail Mounting: Easy installation on DIN rail for compact and efficient setup.
- 3Compliant with IEC 60664: Meets stringent electrical insulation standards for reliability.
- 4Suitable for Various Controllers: Compatible with ABB S800, SIEMENS S7-400, and GE-FANUC controllers.
- 5UL and cUL Recognized: Ensures safety compliance with recognized approvals from UL and cUL.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Interface module | Product family | VARIOFACE |
Number of positions | 14 | No. of channels | 8 |
Insulation | Functional insulation | Overvoltage category | II |
Pollution degree | 2 | Operating voltage (AC) | ≤ 30 V AC |
Operating voltage (DC) | ≤ 60 V DC | Current (per branch) | ≤ 1 A |
Current (Voltage supply) | ≤ 3 A | Rated insulation voltage | 63 V |
Rated surge voltage | 0.6 kV (1.2/50 μs) | Suitable I/O card | DI810
DI811
DI814
DI818
DI830
DI831
DI840
DO810
DO814
DO818
DO840 |
Suitable I/O card | 6ES7421-1BL01-0AA0
6ES7422-1BL00-0AA0
6ES7422-7BL00-0AB0 | Suitable I/O card | IC693 MDL241
IC693 MDL634
IC693 MDL645
IC693 MDL646
IC693 MDL732
IC693 MDL733
IC693 MDL740
IC693 MDL741
IC693 MDL742 |
Suitable I/O card | 1756-IB32
1756-OB32
1756-IN16
1756-IB16
1756-IC16
1756-OB16E | Suitable I/O card | 1771 IBN
1771 OBN |
Suitable I/O card | 1746 OB16
1746 OV16
1746 OG16
1746 IA16
1746 ITB16
1746 IN16
1746 IV16
1746 ITV16
1746 IG16
1746 OB 32
1746 OV 32
1746 IB 32
1746 IV 32
1746 IB16 | Suitable I/O card | TC-IDD 321
TC-ODD 321 |
Suitable I/O card | QX81
QY81P | Suitable I/O card | DDI 353
DDI 853
DAI 353
DAI 453
DDO 353 |
Suitable I/O card | CPU 313C-2DP
CPU 314C-2DP
CPU 314C-2PtP
6ES7321-1BH02-0AA0
6ES7321-1BL00-0AA0
6ES7322-1BH01-0AA0
6ES7322-1BL00-0AA0
6ES7323-1BH01-0AA0
6ES7323-1BL00-0AA0
6ES7321-1BH10-0AA0
6ES7322-1BH10-0AA0
CPU 313C
CPU 313C-2PtP | Connection in acc. with standard | IEC 60603-13 |
Connection method | IDC/FLK pin strip | Number of connections | 1 |
Number of positions | 14 | Insertion/withdrawal cycles | > 50 |
Pitch | 2.54 mm | Connection method | Screw connection |
Stripping length | 7 mm | Screw thread | M3 |
Number of positions | 12 | Conductor cross section rigid | 0.2 mm² ... 4 mm² |
Conductor cross-section rigid (2 conductors with same cross section) | 0.2 mm² ... 1.5 mm² | Conductor cross section flexible | 0.2 mm² ... 2.5 mm²
0.25 mm² ... 1.5 mm² (Ferrule without plastic sleeve)
0.25 mm² ... 2.5 mm² (Ferrule with plastic sleeve) |
Conductor cross section flexible (2 conductors with same cross section) | 0.2 mm² ... 1.5 mm²
0.25 mm² ... 0.75 mm² (Ferrule without plastic sleeve)
0.5 mm² ... 0.5 mm² (TWIN ferrule with plastic sleeve) | Conductor cross section AWG | 24 ... 12 |
Tightening torque | 0.5 Nm ... 0.6 Nm | Pitch | 5.08 mm |
Status display present | No | Width | 45 mm |
Height | 90 mm | Depth | 68 mm |
Color | green (RAL 6021) | Housing insulation material | Polyamide 6.6 green |
Degree of protection (Module) | IP00 | Degree of protection (Installation location) | ≥ IP54 |
Ambient temperature (operation) | -20 °C ... 50 °C | Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Altitude | ≤ 2000 m | Certificate | UKCA-compliant |
Standards/regulations | EN IEC 60664-1 | Mounting type | DIN rail mounting |
Mounting position | any | Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
