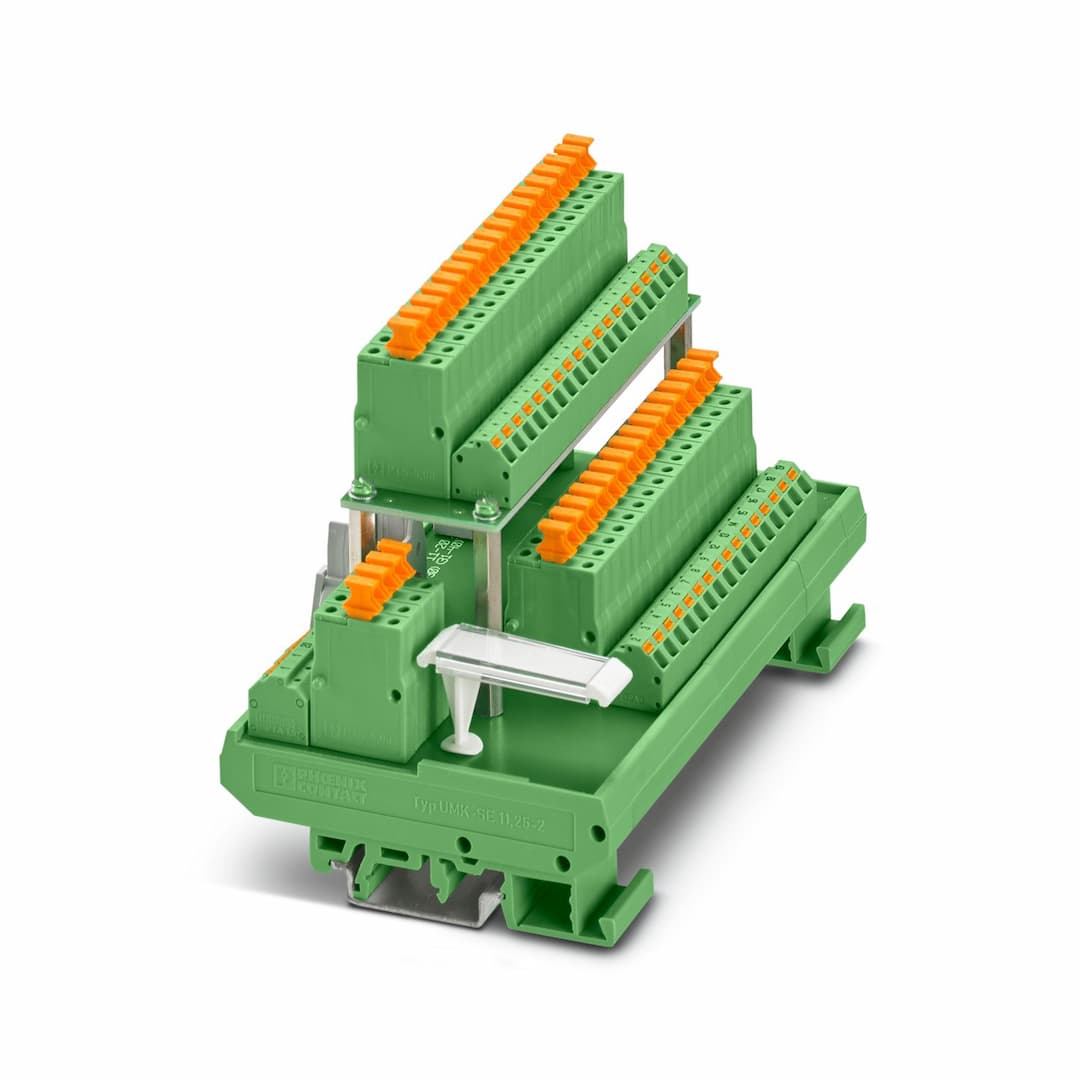

Product Model
FLKM-2FLK14/FKDSP-MT/P/HF/S7
Selling Points
- 1Designed for Siemens SIMATIC S7-300: Compatible with Siemens SIMATIC S7-300 for seamless integration.
- 216 Channels with SIMATIC-Specific Marking: Supports up to 16 channels with SIMATIC-specific marking (1-20).
- 3Additional 18 Connection Terminal Blocks: Includes 18 connection terminal blocks for positive potential.
- 4Functional Insulation: Ensures at least one functional insulation against adjacent modules.
- 5IP00 to IP54 Degree of Protection: Offers a wide range of protection from IP00 to IP54 for various installation locations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Interface module | Product family | VARIOFACE |
Operating mode | 100% operating factor | Article revision | 07 |
Insulation | Functional insulation | Overvoltage category | II |
Pollution degree | 2 | Operating voltage (AC) | ≤ 30 V AC |
Operating voltage (DC) | ≤ 30 V DC | Current (per branch) | ≤ 1 A |
Current (Voltage supply) | ≤ 9 A | Rated insulation voltage | 63 V |
Rated surge voltage | 0.6 kV (1.2/50 μs) | Suitable I/O card | 6ES7331-7KF02-0AB0 |
Connection in acc. with standard | IEC 60603-13 | Connection method | IDC/FLK pin strip |
Number of connections | 2 | Number of positions | 14 |
Insertion/withdrawal cycles | > 50 | Pitch | 2.54 mm |
Connection method | Push-in spring connection | Stripping length | 10 mm |
Number of connections | 2 | Number of positions | 18 |
Conductor cross section rigid | 0.2 mm² ... 1.5 mm² | Conductor cross section flexible | 0.2 mm² ... 1.5 mm²
0.25 mm² ... 1.5 mm² (Ferrule without plastic sleeve)
0.25 mm² ... 1.5 mm² (Ferrule with plastic sleeve) |
Conductor cross section AWG | 24 ... 16 | Pitch | 5.08 mm |
Connection method | PCB terminal block | Type | PCB isolating plugs |
Number of connections | 2 | Number of positions | 18 |
Pitch | 5.08 mm | Connection method | Push-in spring connection |
Number of connections | 1 | Number of positions | 4 |
Conductor cross section rigid | 0.2 mm² ... 1.5 mm² | Conductor cross section flexible | 0.2 mm² ... 1.5 mm²
0.25 mm² ... 1.5 mm² (Ferrule without plastic sleeve)
0.25 mm² ... 1.5 mm² (Ferrule with plastic sleeve) |
Conductor cross section AWG | 24 ... 16 | Pitch | 5.08 mm |
Connection method | PCB terminal block | Type | PCB isolating plugs |
Number of connections | 1 | Number of positions | 4 |
Width | 134.85 mm | Height | 77 mm |
Depth | 93.67 mm | Degree of protection (Module) | IP00 |
Degree of protection (Installation location) | ≥ IP54 | Ambient temperature (operation) | -20 °C ... 50 °C |
Ambient temperature (storage/transport) | -20 °C ... 70 °C | Altitude | ≤ 2000 m |
Certificate | UKCA-compliant | Standards/regulations | EN IEC 60664-1 |
Mounting type | DIN rail mounting | Mounting position | any |
Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
