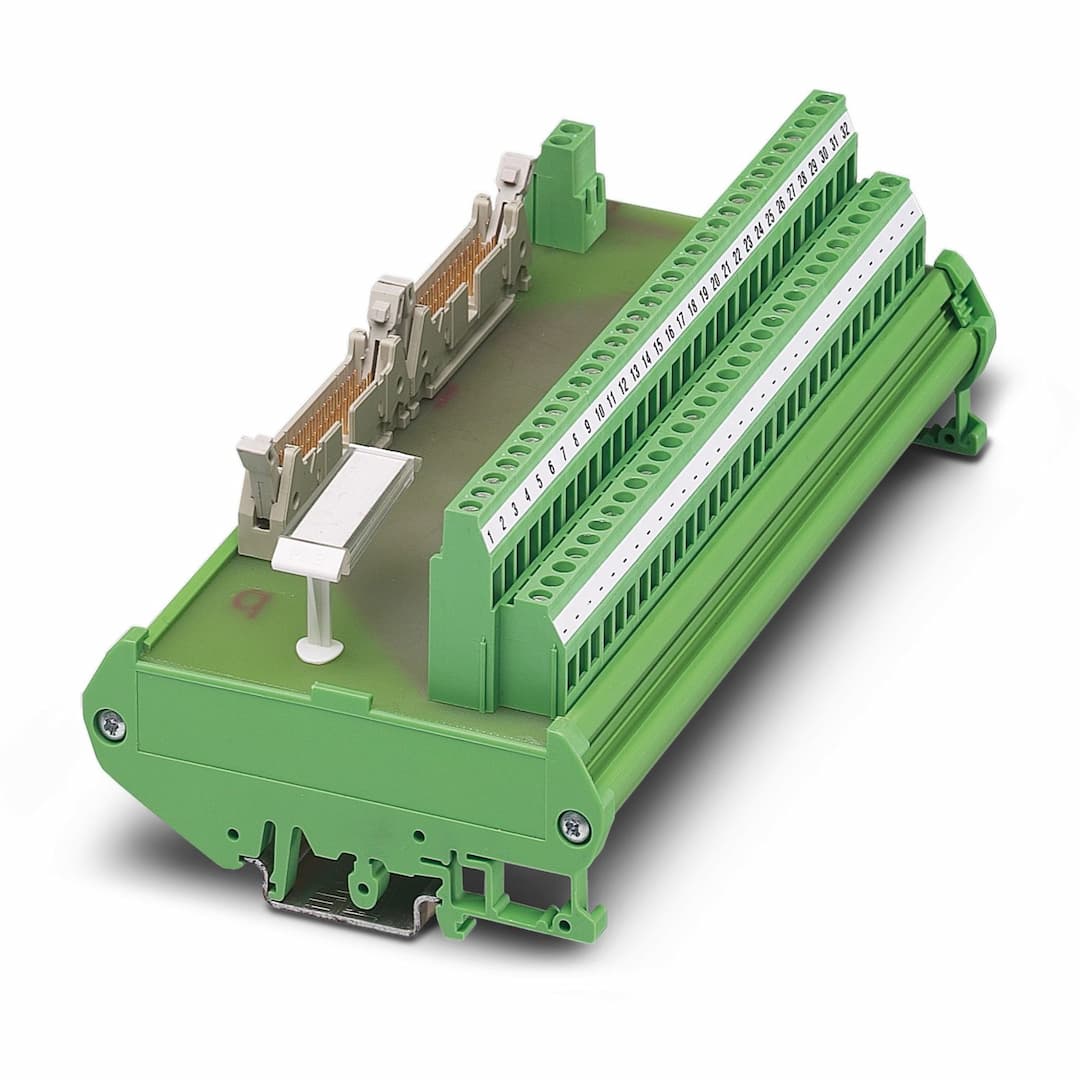

Product Model
FLKM-2FLK20/32M/IN/LA/DV
Selling Points
- 132-channel output with LED per signal for clear signal indication.
- 2Robust technical specifications including max. permissible operating voltage of 30 V DC.
- 3Screw connection method with stripping length of 8 mm for secure installation.
- 4Suitable for DeltaV controller input cards with common negative potential.
- 5Made to order with high-quality materials ensuring reliable performance in industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Interface module | Overvoltage category | II |
Pollution degree | 2 | Nominal voltage U | 30 V DC |
Max. current carrying capacity per branch | 10 mA (IN: LED in series) | Max. total current of voltage supply | 5 A (KL/KL) |
Suitable I/O card | VE4001S2T2B5 | Continuous load current | 10 mA |
Connection in acc. with standard | IEC / EN | Connection method | Screw connection |
Stripping length | 8 mm | Screw thread | M3 |
Conductor cross section rigid | 0.2 mm² ... 4 mm² | Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
Conductor cross section AWG | 24 ... 12 | Connection method | IDC/FLK pin strip |
Number of connections | 2 | Number of positions | 20 |
Pitch | 2.54 mm | Status display | yes |
Status display present | Yes | Width | 169 mm |
Height | 77 mm | Depth | 52 mm |
Color | green (RAL 6021) | Housing insulation material | PVC |
Ambient temperature (operation) | -20 °C ... 50 °C | Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Standards/regulations | IEC 60664 | Mounting type | DIN rail mounting |
Assembly note | in rows with zero spacing | Mounting position | any |
Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
