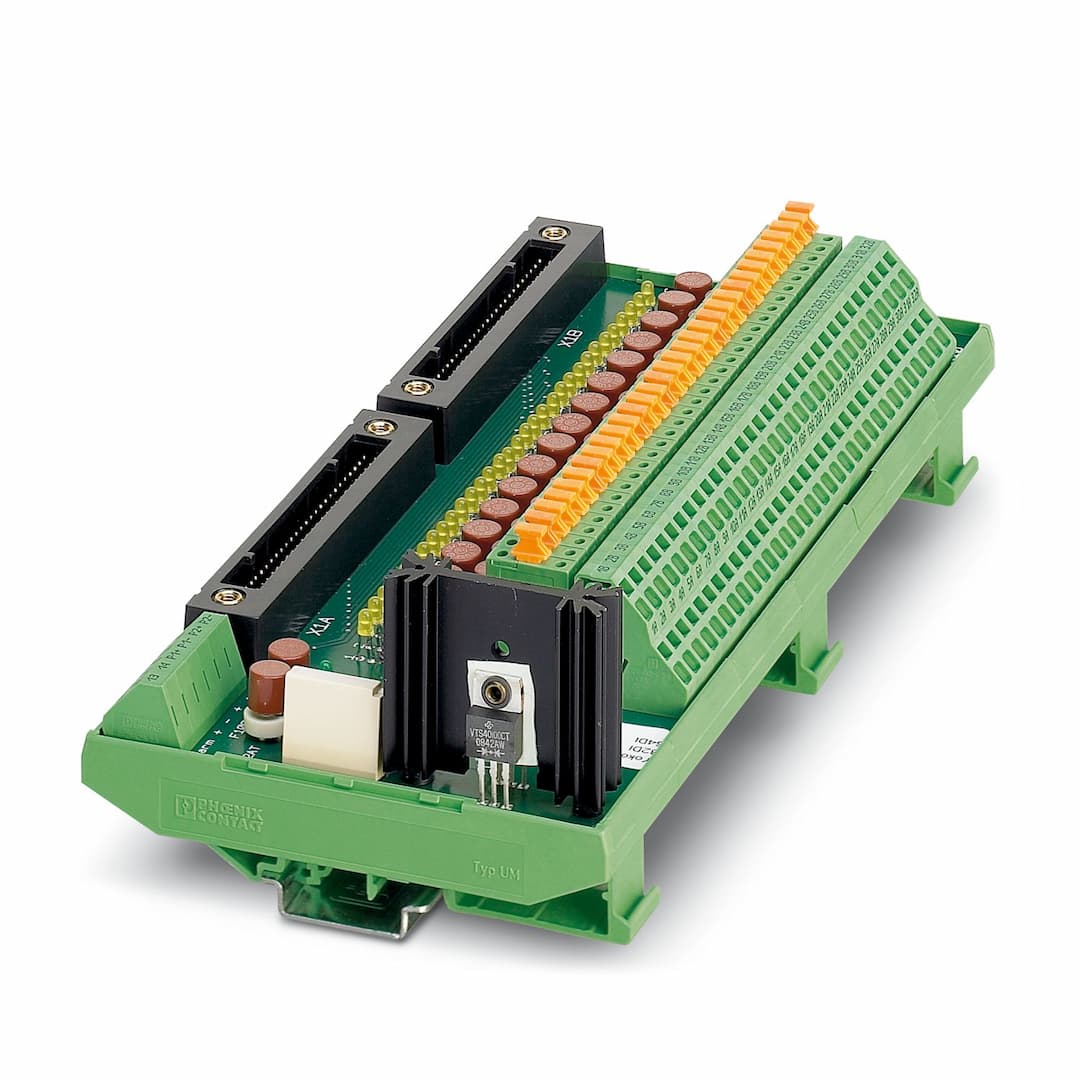

Product Model
FLKM-2KS50/PMT/ADV151/YCS
Selling Points
- 1High Channel Capacity: Supports up to 32 channels for efficient data transmission.
- 2Redundant Connector: Ensures reliable connection with Yokogawa input modules ADV151 and ADV161.
- 3Durable Construction: Designed for operation in ambient temperatures from -20 °C to 70 °C.
- 4Flexible Conductor Options: Compatible with solid, flexible, and AWG conductors (0.2 mm² to 4 mm²).
- 5Easy Installation: Mounts on DIN rail with zero spacing for compact and organized setups.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Interface module | No. of channels | 32 |
Operating mode | 100% operating factor | Article revision | 07 |
Insulation | Functional insulation | Overvoltage category | II |
Pollution degree | 2 | Max. permissible current | 63 mA (per path, protected by slow fuse 63 mA, observe derating) |
Max. permissible total current | 2 A (protected by fuse (2 AT), observe derating) | Nominal voltage U | 24 V DC
19.2 V DC ... 30 V DC |
Rated insulation voltage | 50 V DC | Rated surge voltage | 0.5 kV |
Suitable I/O card | ADV151
ADV161 | Suitable I/O card | NFDV151
NFDV161 |
Contact switching type | Double contact, 1 N/O contact | Contact material | AgNi 90/10, + 5 µm hard gold-plated |
Maximum switching voltage | 48 V DC
≤ 25 V AC | Limiting continuous current | 1 A |
Min. switching current | 1 mA | Interrupting rating (ohmic load) max. | 24 W (24 V DC)
48 W (48 V DC)
25 VA (25 V AC) |
Mechanical service life | approx. 2x 10 | Connection method | Screw connection |
Number of positions | 64 | Conductor cross section rigid | 0.2 mm² ... 4 mm² |
Conductor cross section flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 12 |
Connection method | Yokogawa KS-compatible | Number of connections | 2 |
Number of positions | 50 | Note | Usable system cables: Phoenix Contact YUC50, Yokogawa AKB331 |
Tightening torque | 0.5 Nm | Status display present | Yes |
Operating voltage display | Green LED | Width | 231.6 mm |
Height | 111.8 mm | Depth | 65.5 mm |
Color | green (RAL 6021) | Degree of protection | IP00 |
Degree of protection (Installation location) | ≥ IP54 (Installation location) | Ambient temperature (operation) | -20 °C ... 70 °C |
Ambient temperature (storage/transport) | -20 °C ... 70 °C | Altitude | ≤ 2000 m |
Standards/regulations | EN IEC 60664-1 | Mounting type | DIN rail mounting |
Assembly note | in rows with zero spacing | Mounting position | any |
Notes on operation | No additional touch protection is required when using a SELV/PELV voltage (≤ 25 V AC or 60 V DC). | Notes on operation | At least one functional insulation against adjacent modules is complied with (in the support rail direction). If the application has stricter requirements for the insulation (basic insulation or reinforced insulation), they must be realized by applying suitable measures (e. g. partition plates). |
Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
