Product Model

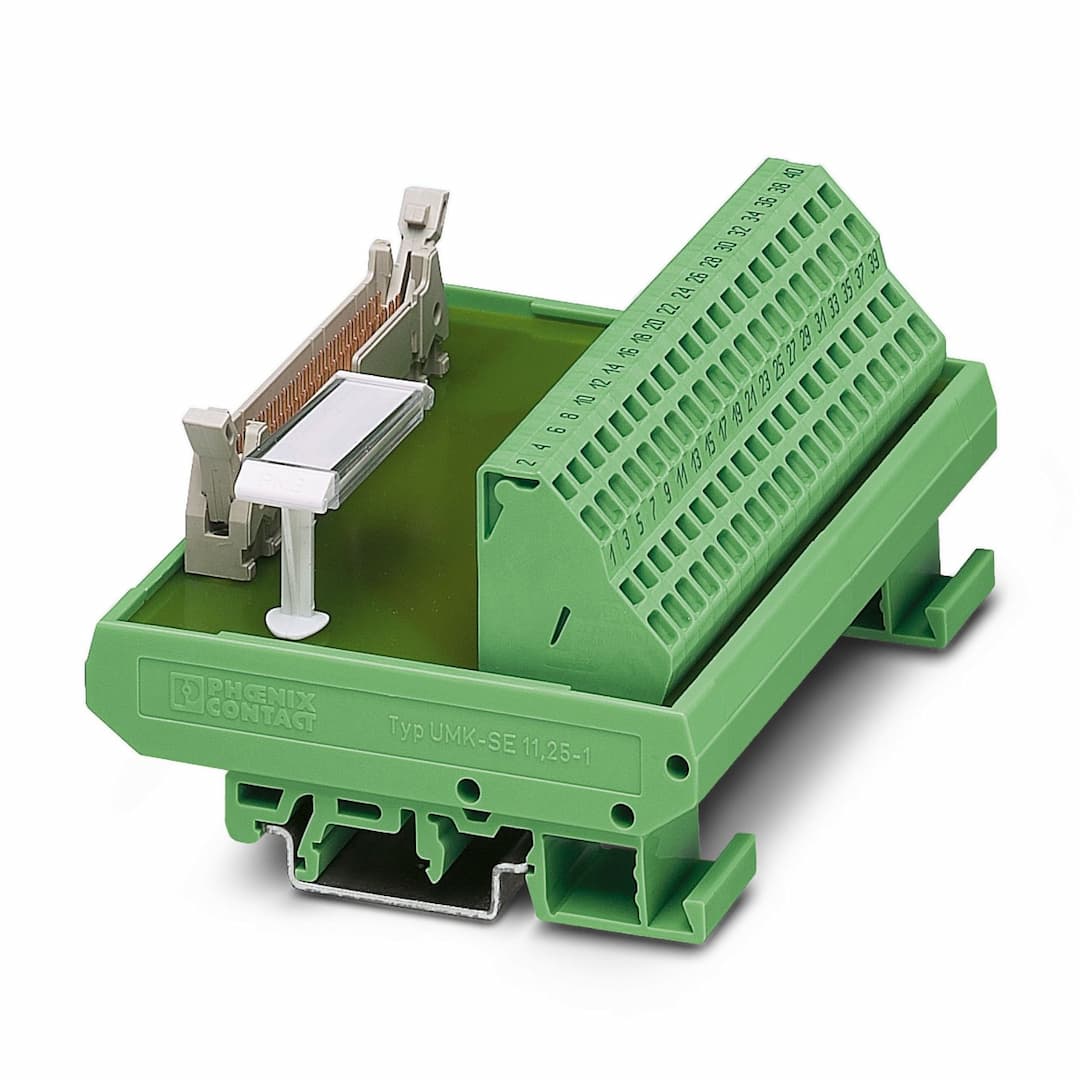

FLKM 34/ZFKDS
Selling Points
- 1High-Quality Connectivity: The FLKM 34/ZFKDS offers reliable and durable connections with a spring-cage design and flat-ribbon cable connectors.
- 234 Positions Available: Equipped with 34 positions for versatile connection options, making it suitable for various industrial applications.
- 3Wide Operating Temperature Range: Operates between -20°C to 50°C, ensuring stable performance in diverse environmental conditions.
- 4Compliant with Industry Standards: Meets IEC 60664 and DIN EN 50178 standards, ensuring safety and reliability in industrial settings.
- 5Versatile Mounting Options: Can be mounted in any position, providing flexibility in installation and use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Interface module | Number of positions | 34 |
Article revision | 05 | Insulation | Functional insulation |
Overvoltage category | II | Pollution degree | 2 |
Max. permissible operating voltage | 25 V AC
60 V DC | Max. current carrying capacity per branch | 1 A |
Rated insulation voltage | 63 V | Rated surge voltage | 0.6 kV |
Connection method | Spring-cage connection | Conductor cross section rigid | 0.2 mm² ... 4 mm² |
Conductor cross section flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 12 |
Connection method | IDC/FLK pin strip | Number of connections | 1 |
Number of positions | 34 | Pitch | 2.54 mm |
Status display present | No | Width | 90 mm |
Height | 77 mm | Depth | 52.34 mm |
Color | green (RAL 6021) | Degree of protection | IP20 |
Ambient temperature (operation) | -20 °C ... 50 °C | Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Standards/regulations | IEC 60664
DIN EN 50178 | Mounting type | DIN rail mounting |
Mounting position | any | Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
