Product Model

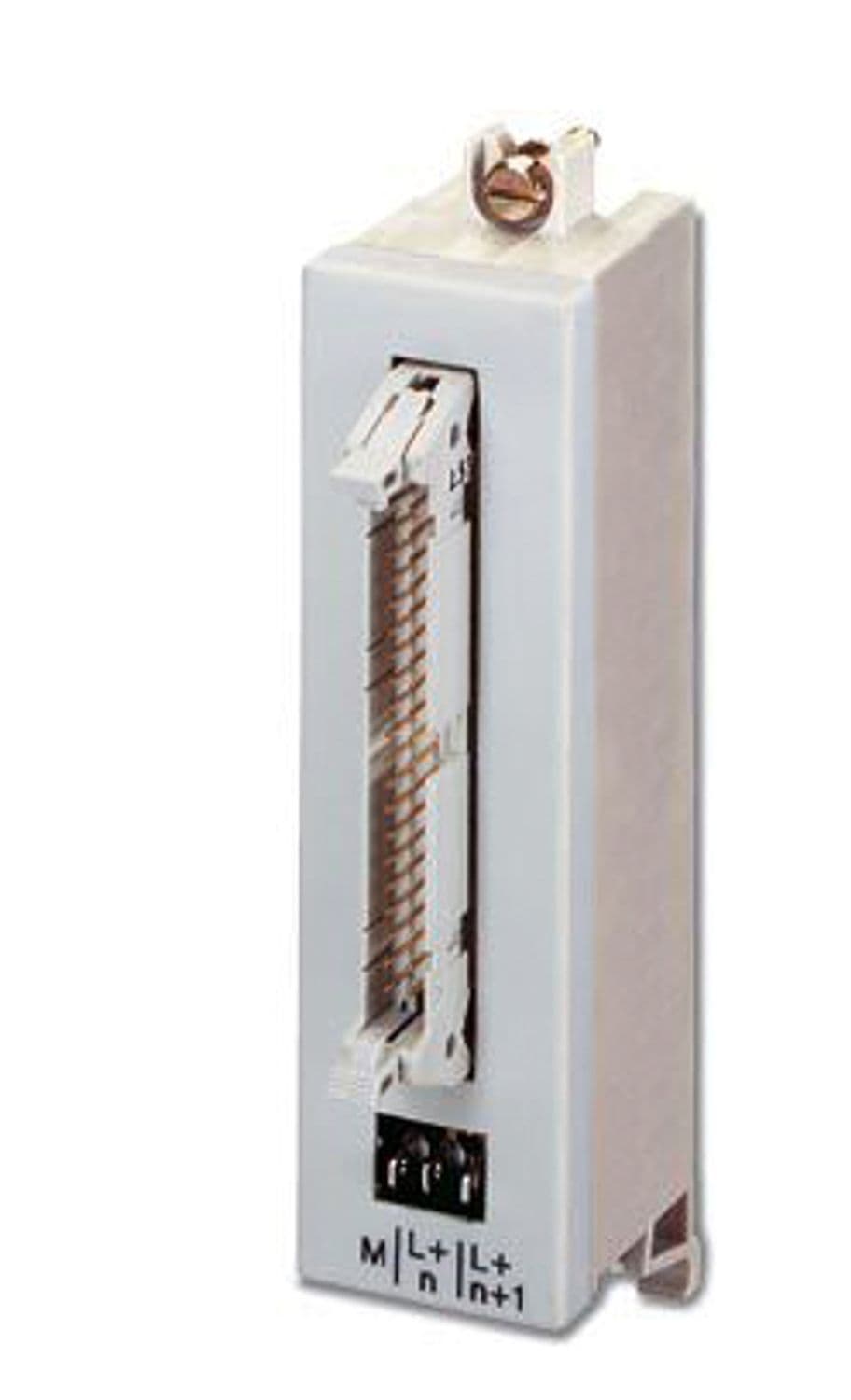

FLKM 40-PA-MA12/S100
Selling Points
- 1Connects up to 32 channels for Siemens SIMATIC S5-100U I/O cards.
- 2Compliant with IEC 60664 and DIN VDE standards for safe and reliable operation.
- 3Operates within -20°C to 50°C ambient temperature range.
- 4Max. permissible operating voltage is <50 V AC and 60 V DC.
- 5Ideal for industrial automation applications with robust electrical properties.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Front adapter | Max. permissible operating voltage | < 50 V AC
60 V DC |
Max. permissible current | 0.5 A (per path)
4 A (per slip-on connection (0+; 1+; 2+; 3+)) | Connection method | IDC/FLK pin strip |
Number of connections | 1 | Number of positions | 40 |
Pitch | 2.54 mm | Ambient temperature (operation) | -20 °C ... 50 °C |
Standards/regulations | IEC 60664
IEC 60664A
DIN VDE 0110
DIN VDE 0160 (in parts) | Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
