Product Model

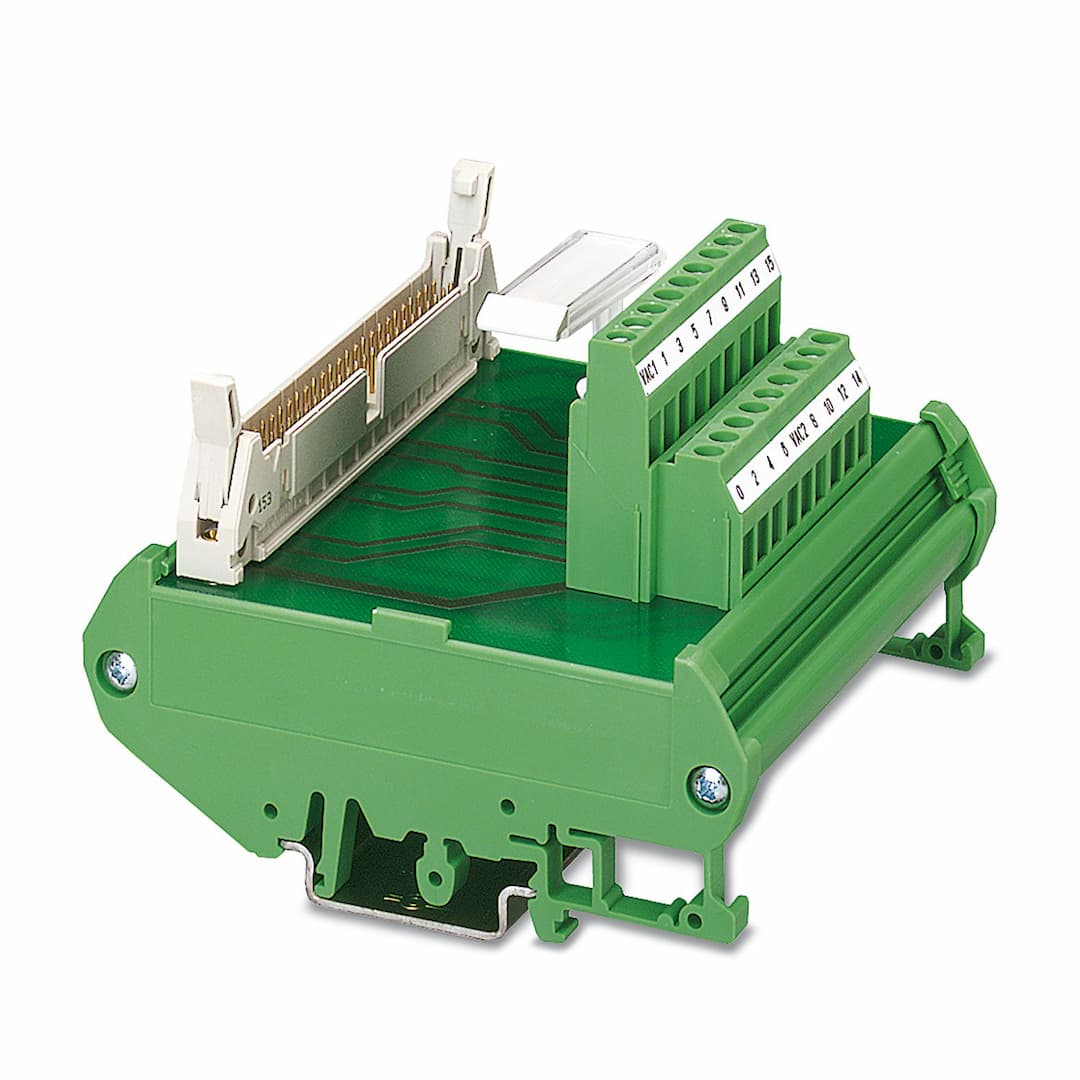

FLKM 50/16/SLC500
Selling Points
- 1Connects 32 channels efficiently for Allen-Bradley SLC 500 systems.
- 2Reduces assembly time with high-pole pin strip connections.
- 3Ensures protection against polarity reversal with system cabling.
- 4Supports up to 32 channels via two 50-pole system cables.
- 5Compatible with various front adapters for seamless integration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Interface module | No. of channels | 16 |
Overvoltage category | II | Pollution degree | 2 |
Nominal voltage U | < 50 V AC
60 V DC | Max. current carrying capacity per branch | 1 A |
Max. total current of voltage supply | 2 A (per channel) | Suitable I/O card | 1746 OA16
1746 OW16 |
Connection in acc. with standard | IEC / EN | Connection method | Screw connection |
Stripping length | 8 mm | Screw thread | M3 |
Conductor cross section rigid | 0.2 mm² ... 4 mm² | Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
Conductor cross section AWG | 24 ... 12 | Connection method | IDC/FLK pin strip |
Number of connections | 1 | Number of positions | 50 |
Pitch | 2.54 mm | Status display | no |
Status display present | No | Width | 90 mm |
Height | 90 mm | Depth | 68 mm |
Color | green (RAL 6021) | Housing insulation material | Polyamide 6.6 green |
Ambient temperature (operation) | -20 °C ... 50 °C | Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Standards/regulations | IEC 60664
DIN EN 50178 | Mounting position | any |
Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
