Product Model

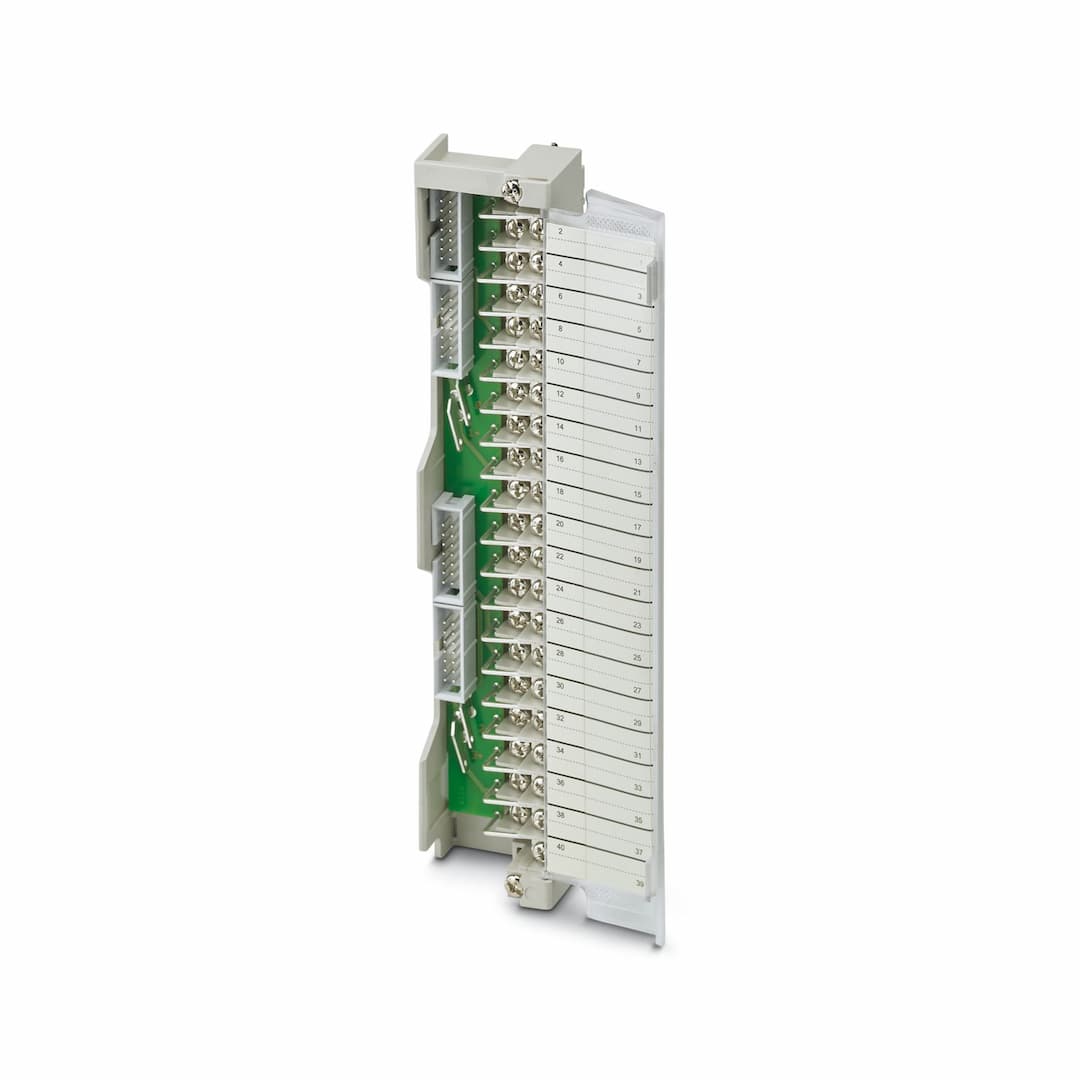

FLKM 50/ 4-FLK14/PA-MODI-TSX/Q
Selling Points
- 1Compliant with IEC 60664 and DIN EN 50178 standards for reliable electrical performance.
- 2Functional insulation ensures safe operation in various environments.
- 3Supports up to 4 x 8 channels for extensive connectivity options.
- 4Suitable for Schneider Electric Modicon TSX Quantum controllers, enhancing compatibility.
- 5Durable construction with a weight of 0.226 kg, designed for long-term use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Front adapter | Insulation | Functional insulation |
Overvoltage category | II | Pollution degree | 2 |
Operating voltage (AC) | ≤ 25 V AC | Operating voltage (DC) | ≤ 60 V DC |
Max. permissible current | 4 A (per connection, supply via separate power supply) | Current (Per path) | ≤ 1 A |
Rated insulation voltage | 63 V | Rated surge voltage | 0.6 kV |
Suitable I/O card | DDI 353
DDI 853
DAI 353
DAI 453
DDO 353 | Connection method | IDC/FLK pin strip |
Number of connections | 4 | Number of positions | 14 |
Pitch | 2.54 mm | Degree of protection | IP00 |
Ambient temperature (operation) | -20 °C ... 50 °C | Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Standards/regulations | IEC 60664
DIN EN 50178 | Mounting position | any |
Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
