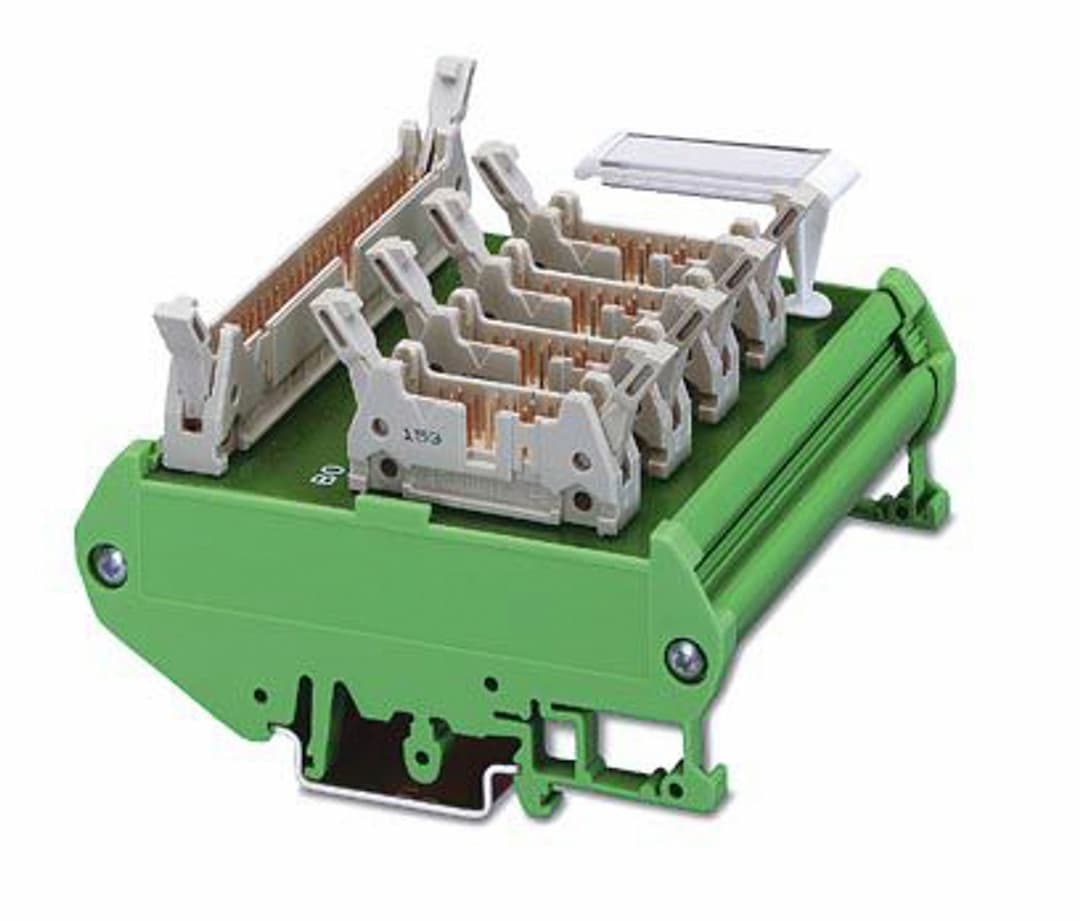

Product Model
FLKM 50/4-FLK14/PLC
Selling Points
- 1High-Quality Automation Solution: Designed for reliable control systems.
- 2AC Voltage Compatibility: Operates with AC voltage up to 30V.
- 3Easy Installation: Follows installation directive specifications.
- 4Same-Day Shipping: Usually ships the same day or next day.
- 5Affordable Pricing: Available at a sale price of $225.64.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Interface module | Product family | VARIOFACE |
Operating mode | 100% operating factor | Article revision | 09 |
Insulation | Functional insulation | Overvoltage category | II |
Pollution degree | 2 | Operating voltage (AC) | ≤ 30 V AC |
Operating voltage (DC) | ≤ 60 V DC | Current (per branch) | ≤ 1 A |
Current (Voltage supply) | ≤ 2 A | Rated insulation voltage | 63 V |
Rated surge voltage | 0.6 kV (1.2/50 μs) | Connection in acc. with standard | IEC 60603-13 |
Connection method | IDC/FLK pin strip | Number of connections | 1 |
Number of positions | 14 | Insertion/withdrawal cycles | > 50 |
Pitch | 2.54 mm | Connection method | IDC/FLK pin strip |
Number of connections | 4 | Number of positions | 14 |
Insertion/withdrawal cycles | > 50 | Pitch | 2.54 mm |
Status display present | No | Width | 89.5 mm |
Height | 90 mm | Depth | 61 mm |
Color | green (RAL 6021) | Housing insulation material | Polyamide 6.6 green |
Degree of protection (Module) | IP00 | Degree of protection (Installation location) | ≥ IP54 |
Ambient temperature (operation) | -20 °C ... 50 °C | Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Altitude | ≤ 2000 m | Certificate | UKCA-compliant |
Standards/regulations | EN IEC 60664-1 | Mounting type | DIN rail mounting |
Mounting position | any | Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
