Product Model

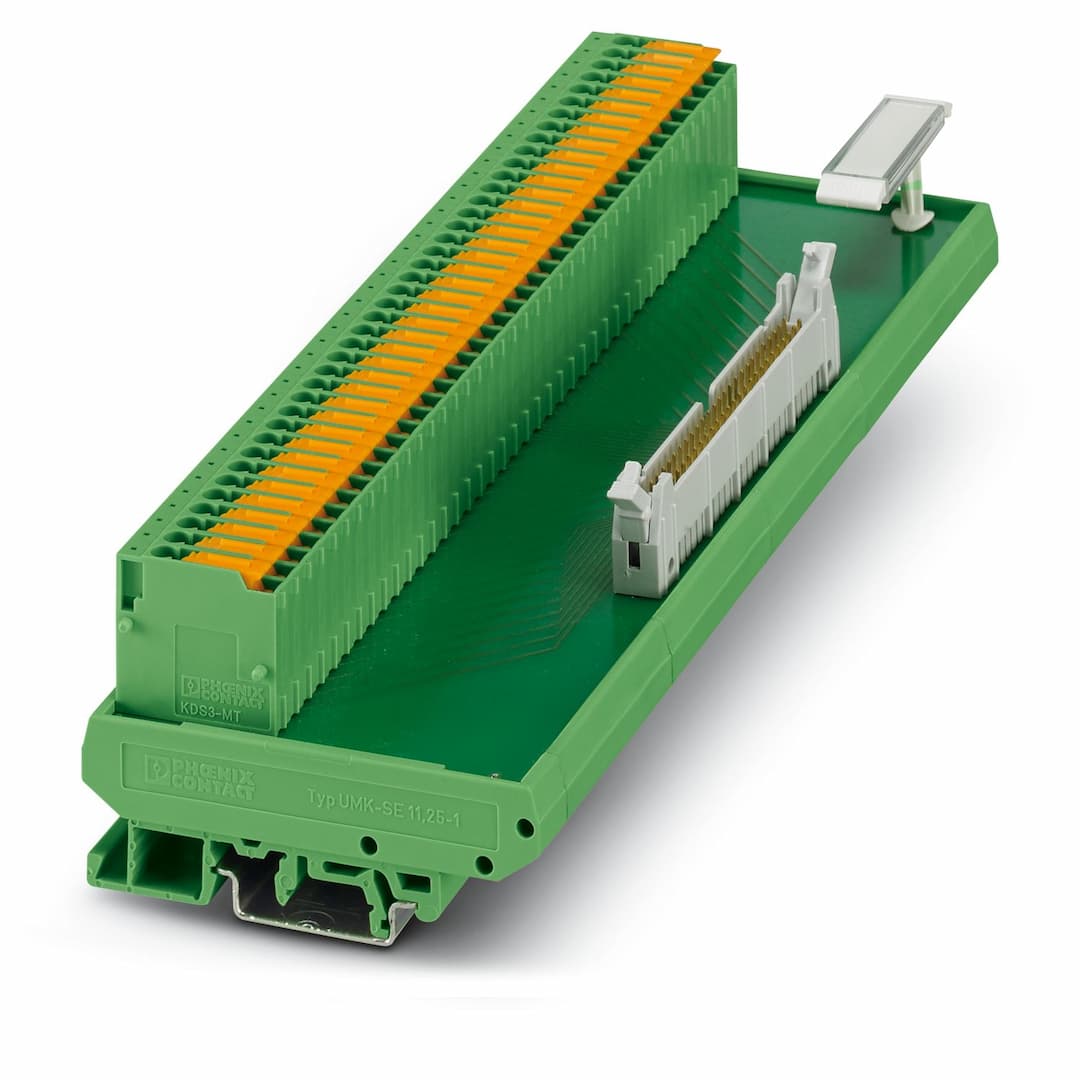

FLKM 50/KDS3-MT/SC054
Selling Points
- 1Designed for industrial use with a wide operating temperature range (-20 °C to 50 °C).
- 2Equipped with a 50-pos. flat cable connector and knife disconnection for easy installation.
- 3Measures 214 mm in width, 77 mm in height, and 52.5 mm in depth.
- 4Meets DIN EN 50178 and IEC 60664 standards for insulation and surge voltage.
- 5Compliant with RoHS and REACh regulations, ensuring environmentally friendly use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Interface module | Product family | VARIOFACE |
Article revision | 03 | Insulation | Functional insulation |
Overvoltage category | II | Pollution degree | 2 |
Operating voltage (AC) | ≤ 30 V AC | Operating voltage (DC) | ≤ 50 V DC |
Current (per branch) | ≤ 1 A | Rated insulation voltage | 50 V |
Rated surge voltage | 0.5 kV (1.2/50 μs) | Connection in acc. with standard | IEC 60603-13 |
Connection method | IDC/FLK pin strip | Number of connections | 1 |
Number of positions | 50 | Insertion/withdrawal cycles | > 50 |
Pitch | 2.54 mm | Connection method | Screw connection with disconnect knife |
Stripping length | 8 mm | Screw thread | M3 |
Number of positions | 40 | Conductor cross section rigid | 0.2 mm² ... 4 mm² |
Conductor cross-section rigid (2 conductors with same cross section) | 0.2 mm² ... 1 mm² | Conductor cross section flexible | 0.2 mm² ... 4 mm²
0.25 mm² ... 2.5 mm² (Ferrule without plastic sleeve)
0.25 mm² ... 1.5 mm² (Ferrule with plastic sleeve) |
Conductor cross section flexible (2 conductors with same cross section) | 0.2 mm² ... 1 mm²
0.25 mm² ... 0.75 mm² (Ferrule without plastic sleeve)
0.5 mm² ... 1 mm² (TWIN ferrule with plastic sleeve) | Conductor cross section AWG | 24 ... 12 |
Tightening torque | 0.5 Nm ... 0.6 Nm | Pitch | 5.08 mm |
Status display present | No | Width | 213.75 mm |
Height | 77 mm | Depth | 52.46 mm |
Color | green (RAL 6021) | Housing insulation material | PVC |
Degree of protection (Module) | IP00 | Degree of protection (Installation location) | ≥ IP54 |
Ambient temperature (operation) | -20 °C ... 50 °C | Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Altitude | ≤ 2000 m | Certificate | UKCA-compliant |
Standards/regulations | EN IEC 60664-1 | Mounting type | DIN rail mounting |
Mounting position | any | Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
