Product Model

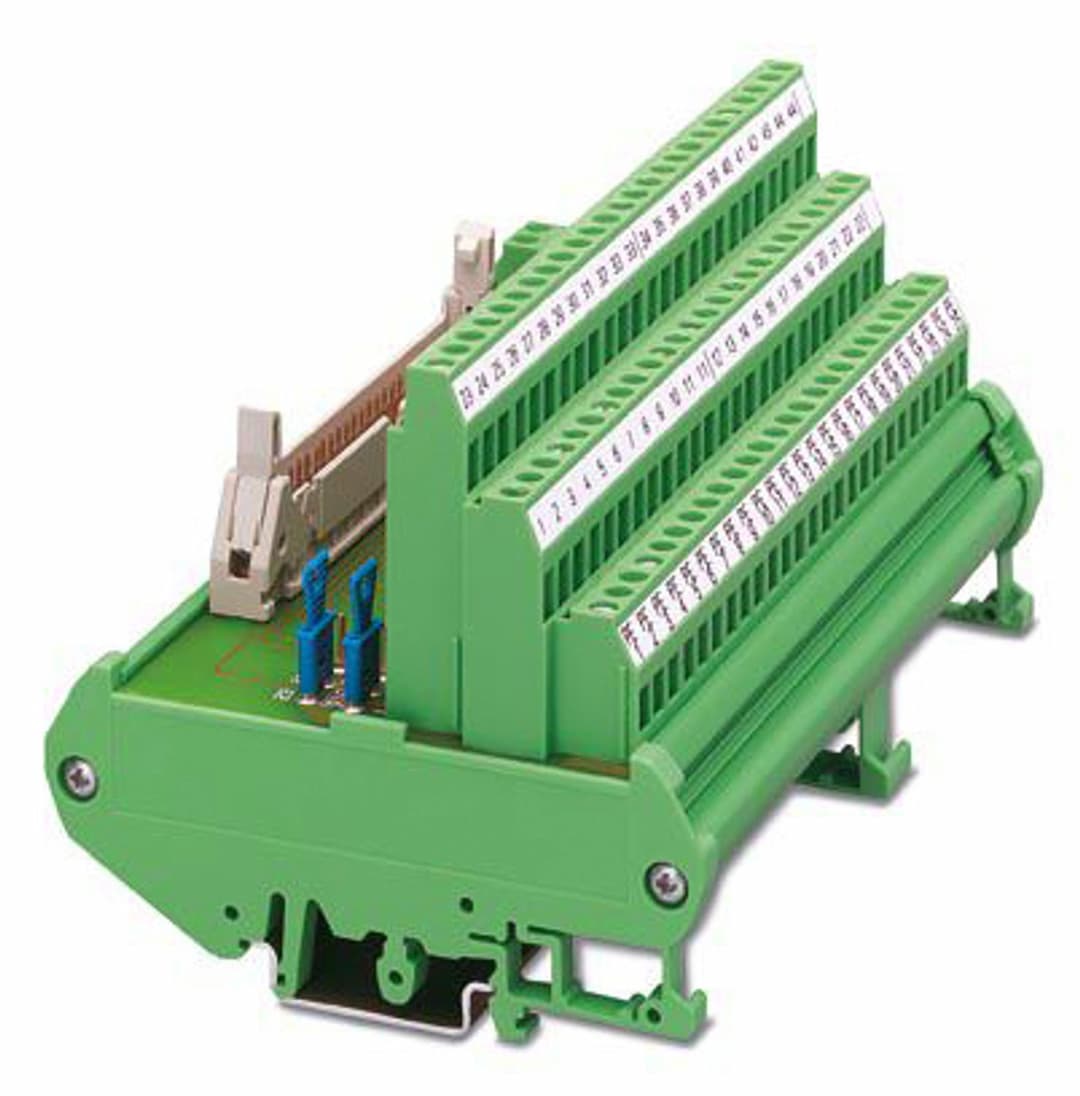

FLKM 50/MODI-A500
Selling Points
- 1Connects to Schneider Electric MODICON A250, A350, and A500 series without isolation.
- 2Allows for potential separation and separate voltage supply for enhanced flexibility.
- 3Supports up to 32 channels in a single connection.
- 4Can be mounted in any position, offering versatility in installation.
- 5Meets IEC 60664, IEC 60664A, DIN VDE 0110, and DIN VDE 0160 standards for safety and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Interface module | Product family | VARIOFACE |
Number of positions | 50 | Overvoltage category | II |
Pollution degree | 2 | Nominal voltage U | < 50 V AC
60 V DC |
Max. current carrying capacity per branch | 1 A | Max. total current of all branches | 8 A |
Connection in acc. with standard | IEC / EN | Connection method | Screw connection |
Stripping length | 8 mm | Screw thread | M3 |
Conductor cross section rigid | 0.2 mm² ... 4 mm² | Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
Conductor cross section AWG | 24 ... 12 | Connection method | IDC/FLK pin strip |
Number of connections | 1 | Number of positions | 50 |
Pitch | 2.54 mm | Status display | no |
Status display present | No | Width | 113 mm |
Height | 90 mm | Depth | 81 mm |
Color | green (RAL 6021) | Housing insulation material | Polyamide 6.6 green |
Ambient temperature (operation) | -20 °C ... 50 °C | Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Standards/regulations | IEC 60664
IEC 60664A
DIN VDE 0110
DIN VDE 0160 (in parts) | Mounting position | any |
Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
