Product Model

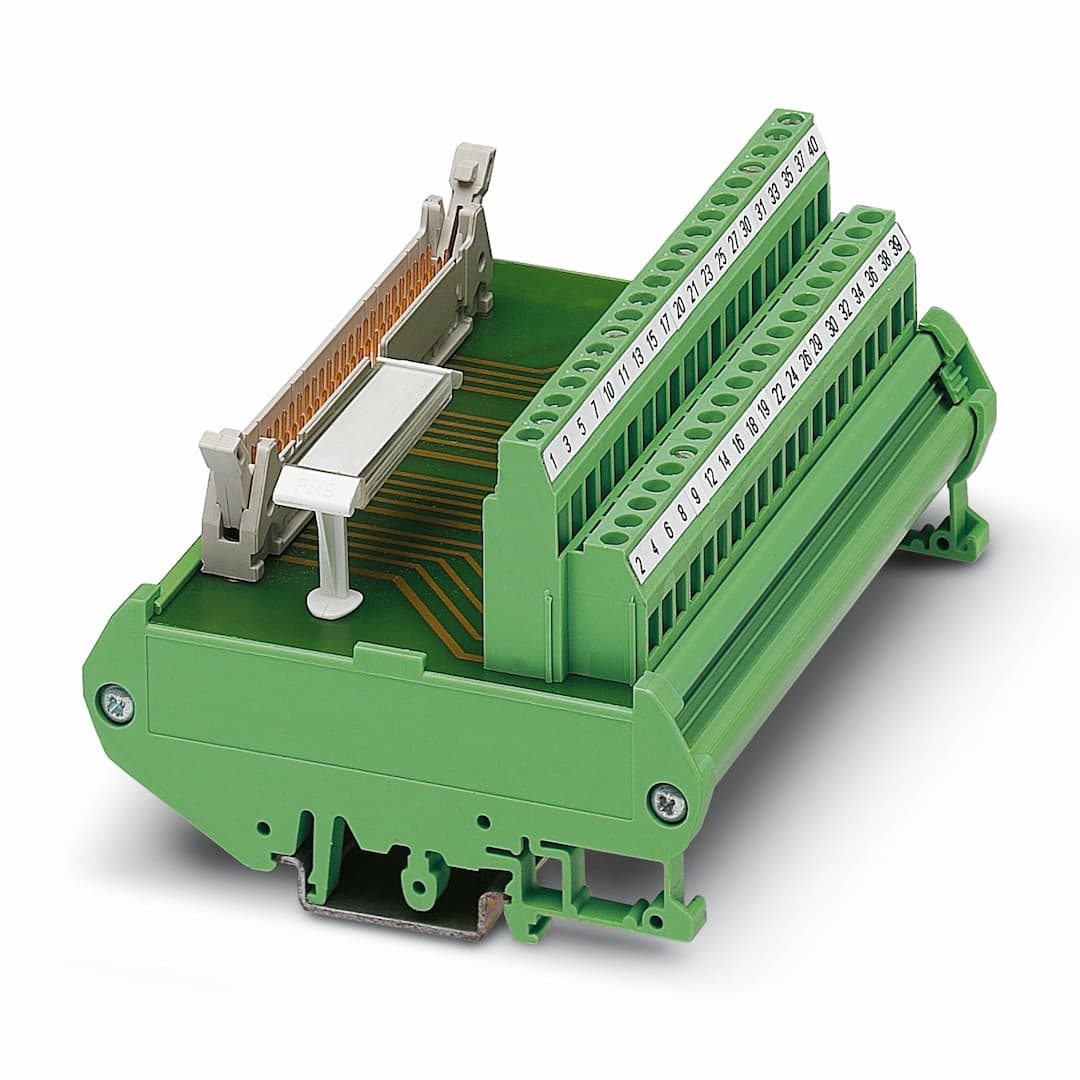

FLKM 50/MODI-TSX/Q
Selling Points
- 1High-Performance Interface Module: Designed for Schneider Electric MODICON TSX Quantum systems.
- 232 Channels I/O: Supports up to 32 channels for efficient data transfer.
- 3Functional Insulation: Ensures reliable operation in harsh environments.
- 4Overvoltage Category II: Provides protection against electrical surges and spikes.
- 5Versatile Connectivity: Compatible with various controllers including DDI 353, DDI 841, and EHC 202.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Interface module | Product family | VARIOFACE |
No. of channels | 16 | Article revision | 07 |
Insulation | Functional insulation | Overvoltage category | II |
Pollution degree | 2 | Operating voltage (DC) | ≤ 60 V DC |
Current (per branch) | ≤ 1 A | Current (Voltage supply per byte) | ≤ 2 A |
Rated insulation voltage | 63 V | Rated surge voltage | 0.6 kV (1.2/50 μs) |
Suitable I/O card | DDI 353
DDI 841
DDI 853
DAI 340
DAI 353
DAI 440
DAI 453
DDO 353
DDM 390
ACI 030
ACI 040
ATI 030
ARI 030
AVI 030
ACO 020
ACO 130
AVO 020
EHC 105
EHC 202 | Connection in acc. with standard | IEC 60603-13 |
Connection method | IDC/FLK pin strip | Number of connections | 1 |
Number of positions | 50 | Insertion/withdrawal cycles | > 50 |
Pitch | 2.54 mm | Connection method | Screw connection |
Stripping length | 7 mm | Screw thread | M3 |
Number of positions | 40 | Conductor cross section rigid | 0.2 mm² ... 4 mm² |
Conductor cross-section rigid (2 conductors with same cross section) | 0.2 mm² ... 1.5 mm² | Conductor cross section flexible | 0.2 mm² ... 2.5 mm²
0.25 mm² ... 1.5 mm² (Ferrule without plastic sleeve)
0.25 mm² ... 2.5 mm² (Ferrule with plastic sleeve) |
Conductor cross section flexible (2 conductors with same cross section) | 0.2 mm² ... 1.5 mm²
0.25 mm² ... 0.75 mm² (Ferrule without plastic sleeve)
0.5 mm² ... 0.5 mm² (TWIN ferrule with plastic sleeve) | Conductor cross section AWG | 24 ... 12 |
Tightening torque | 0.5 Nm ... 0.6 Nm | Pitch | 5.08 mm |
Width | 112 mm | Height | 89.6 mm |
Depth | 65.9 mm | Housing insulation material | PVC |
Degree of protection (Module) | IP00 | Degree of protection (Installation location) | ≥ IP54 |
Ambient temperature (operation) | -20 °C ... 50 °C | Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Altitude | ≤ 2000 m | Certificate | UKCA-compliant |
Standards/regulations | EN IEC 60664-1 | Mounting type | DIN rail mounting |
Mounting position | any | Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
