Product Model

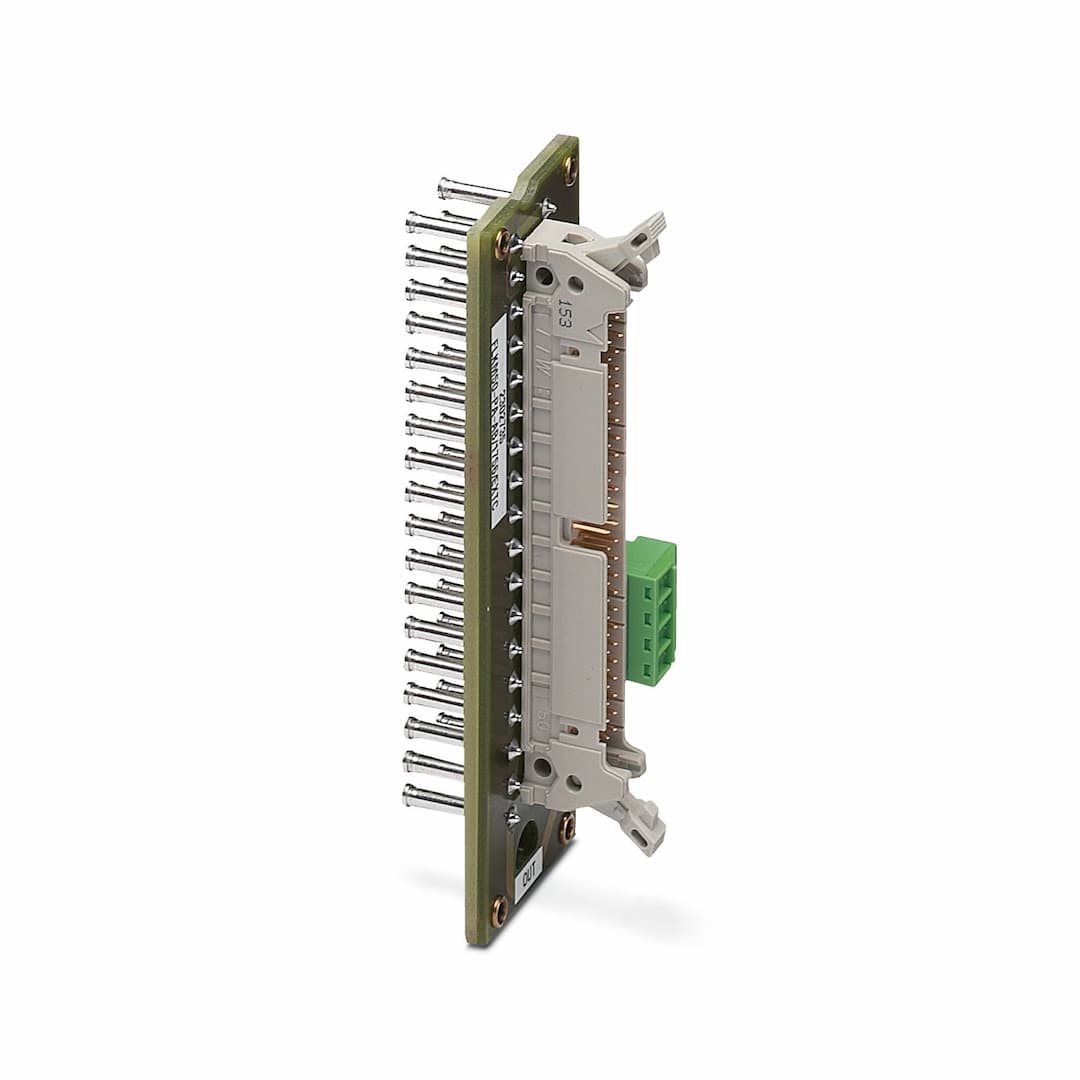

FLKM 50-PA-AB/1756/UNI/EXTC
Selling Points
- 1Connects up to 32 channels via 1:1 connection.
- 2Suitable for Allen Bradley ControlLogix and Honeywell PlantScape.
- 3Functional insulation ensures safe operation.
- 4Operates within -20°C to 50°C ambient temperature range.
- 5Compliant with IEC 60664 and DIN EN 50178 standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Front adapter | Insulation | Functional insulation |
Overvoltage category | II | Pollution degree | 2 |
Operating voltage (AC) | ≤ 25 V AC | Operating voltage (DC) | ≤ 60 V DC |
Nominal operating mode | 100% operating factor | Current (Per path) | ≤ 1 A |
Current (Total current per connection) | ≤ 7 A (Feed-in via separate power supply) | Rated insulation voltage | 63 V |
Rated surge voltage | 0.6 kV | Connection method | IDC/FLK pin strip |
Number of connections | 1 | Number of positions | 50 |
Pitch | 2.54 mm | Connection method | Screw connection |
Conductor cross section rigid | 0.14 mm² ... 1.5 mm² | Conductor cross section flexible | 0.14 mm² ... 1.5 mm² |
Conductor cross section AWG | 28 ... 16 | Degree of protection | IP00 |
Degree of protection (Installation location) | ≥ IP54 (Installation location) | Ambient temperature (operation) | -20 °C ... 50 °C |
Ambient temperature (storage/transport) | -20 °C ... 70 °C | Altitude | ≤ 2000 m |
Standards/regulations | DIN EN 50178 | Assembly note | in rows with zero spacing |
Mounting position | any | Notes on operation | Do not connect adjacent channels to SELV/ PELV and voltages dangerous to the touch. |
Notes on operation | No additional touch protection is required when using a SELV/PELV voltage (≤ 25 V AC or 60 V DC). | Notes on operation | At least one functional insulation against adjacent modules is complied with (in the support rail direction). If the application has stricter requirements for the insulation (basic insulation or reinforced insulation), they must be realized by applying suitable measures (e. g. partition plates). |
Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
